MX75R-XEMEFN (1988)

Toyota Cressida Wagon

Production Dec 1988 - May 1992
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8810-9302)7MGE

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8812-9205)7MGE

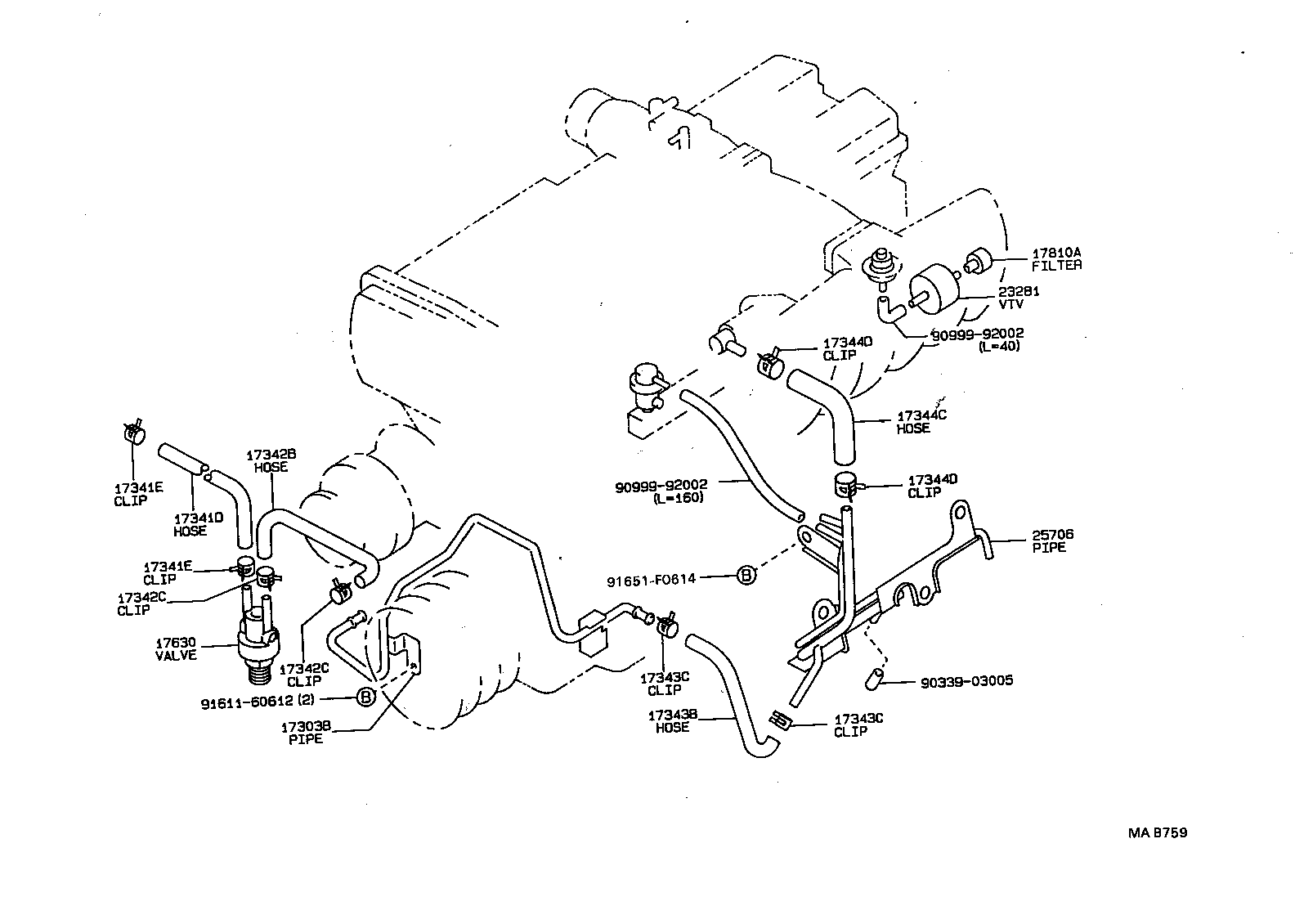

Click highlighted areas on diagram

diagram 17303B 17341D 17341E 17341E 17342B 17342C 17342C 17343B 17343C 17343C 17344C 17344D 17344D 17630 17810A 23281 25706 9033903005 9099992002 9099992002 9161160612 91651F0614
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-42020

7MGE..MX75

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
90910-05197

7MGE..MX75

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-41000

7MGE..MX75

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-41000

7MGE..MX75

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
90910-05186

7MGE..MX75

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

7MGE..MX75

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

7MGE..MX75

 2
17343B - HOSE, NO.3(FOR IDLE-UP)
90910-05185

7MGE..MX75

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

7MGE..MX75

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

7MGE..MX75

 2
17344C - HOSE, NO.4(FOR IDLE-UP)
90910-05190

7MGE..MX75

 1
17344D - CLIP, NO.4(FOR IDLE-UP HOSE)
96132-40800

7MGE..MX75

 2
96132-41300

7MGE..MX75

 2
17344D - CLIP, NO.4(FOR IDLE-UP HOSE)
96132-40800

7MGE..MX75

 2
96132-41300

7MGE..MX75

 2
17630 - VALVE ASSY, AIR CONTROL
17630-70020

7MGE..MX75

 1
17810A - FILTER ASSY, AIR
90925-06006

7MGE..MX75

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

7MGE..MX75

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-42030

7MGE..MX75

 1
Common parts
90339-03005
90999-92002
91611-60612
91651-F0614
