GX71R-XEMGKN (1988)

Toyota Cressida Wagon

Production Dec 1988 - May 1992
Engine 1GFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8812- )GX71,MX75,RX73

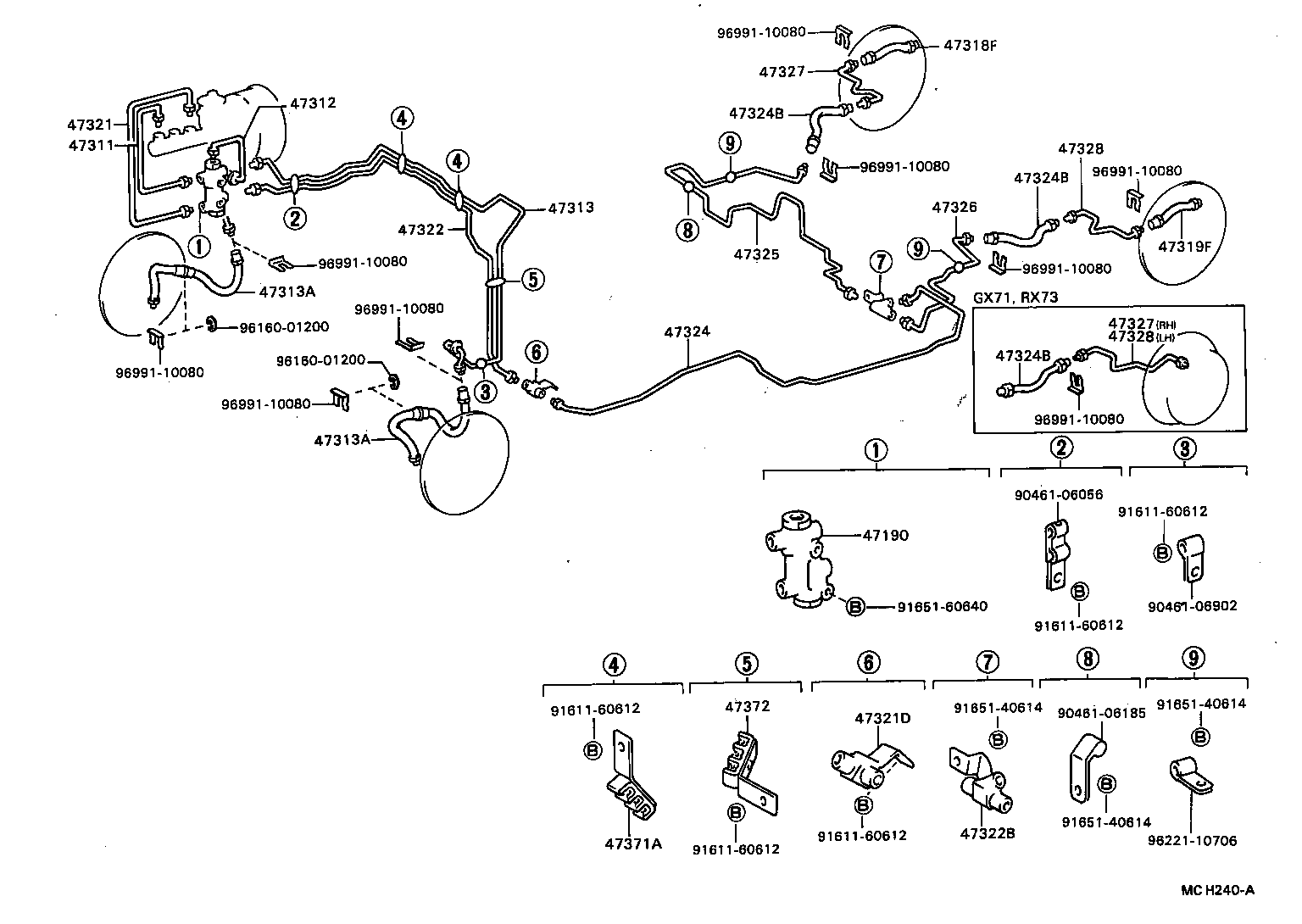

Click highlighted areas on diagram

diagram 47190 47311 47312 47313 47313A 47313A 47318F 47319F 47321 47321D 47322 47322B 47324 47324B 47324B 47324B 47325 47326 47327 47327 47328 47328 47371A 47372 9046106056 9046106185 9046106902 9161160612 9161160612 9161160612 9161160612 9161160612 9165140614 9165140614 9165140614 9165160640 9616001200 9616001200 9622110706 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-22030

GX71,MX75,RX73,YX72

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-22290

GX71

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-22140

GX71,MX75,RX7#,YX72..SA

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-22240

GX71,MX75,RX7#,YX72..SA

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02462

GX71,MX75,RX7#,YX72

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02462

GX71,MX75,RX7#,YX72

 2
47321 - TUBE, REAR BRAKE, NO.1
47321-22090

GX71

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10118

GX71,MX75

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-22130

GX71,MX75

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10209

GX71,MX75

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-22190

GX71,MX75

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

GX71,MX75,RX73

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

GX71,MX75,RX73

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

GX71,MX75,RX73

 2
47325 - TUBE, REAR BRAKE, NO.5
47325-22040

GX71,MX75

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-22040

GX71,MX75

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-22080

GX71,RX73

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-22080

GX71,RX73

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-22080

GX71,RX73

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-22080

GX71,RX73

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-22030

GX71,MX75,RX7#,YX72..RHD

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-22040

GX71,MX75,RX7#,YX72

 1
Common parts
90461-06056
90461-06185
90461-06902
91611-60612
91651-40614
91651-60640
96160-01200
96221-10706
96991-10080
