YX70R-XEMRSN (1985)

Toyota Cressida

Production Feb 1985 - Aug 1988
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8502- )YX70

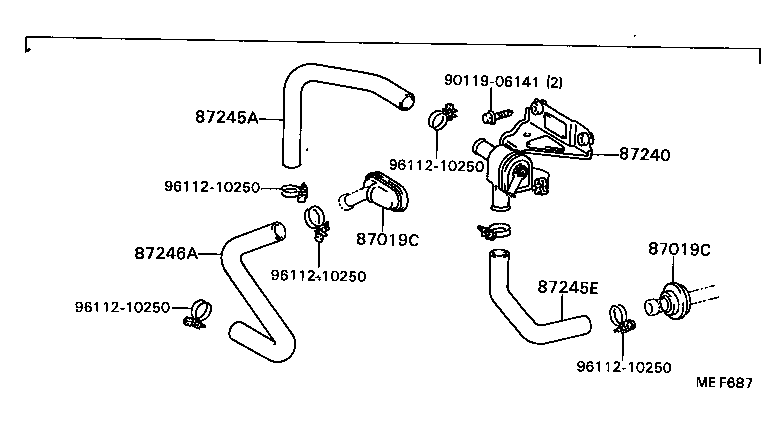

Click highlighted areas on diagram

diagram 87019C 87019C 87240 87245A 87245E 87246A 9011906141 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01272

GX71,MX73,RX70,72,YX70..RHD

OUTLET

 1
90480-36011

GX71,MX73,RX70,72,YX70..RHD

INLET

 1
87019C - GROMMET, HEATER HOSE
90480-01272

GX71,MX73,RX70,72,YX70..RHD

OUTLET

 1
90480-36011

GX71,MX73,RX70,72,YX70..RHD

INLET

 1
87240 - VALVE ASSY, HEATER WATER
87240-22260

GX71,LX7#,RX70,YX70

 1
87240-22260

GX71,RX70,72,YX70..SA

 1
87245A - HOSE, HEATER WATER, INLET A
87245-22800

YX70

 1
87245-22801

YX70

 1
87245E - HOSE, HEATER WATER, INLET E
87245-22620

GX71,RX70,72,YX70..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-22810

YX70

 1
Common parts
90119-06141
96112-10250
