TX62R-XEKRSN (1981)

Toyota Cressida

Production Jul 1981 - Aug 1982
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )3T

Click highlighted areas on diagram

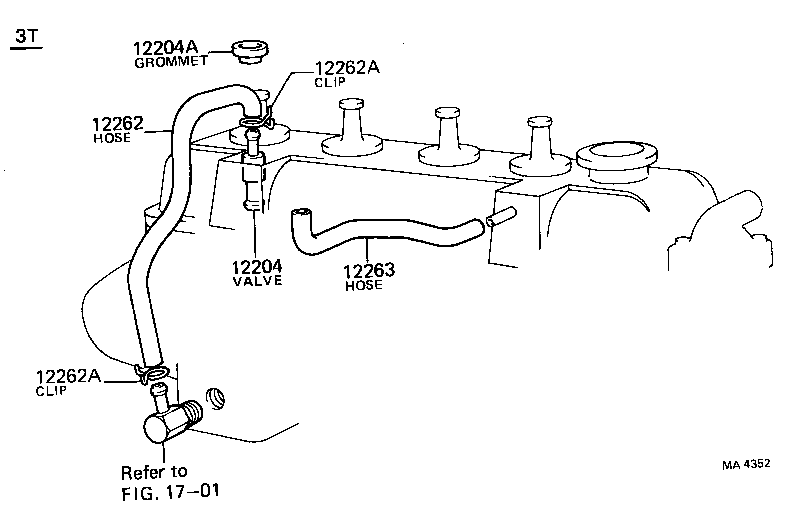

diagram 12204 12204A 12262 12262A 12262A 12263 1701
Part # Description Qty Price
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

3T..TX62

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

3T..TX62

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

3T..TX62

 2
Linked diagrams
1701
