RX81L-AEPESV (1989)
Toyota Cressida
Production
Sep 1989
-
Aug 1996
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9302)RX8#..4FC..V ; (9302- )4FC

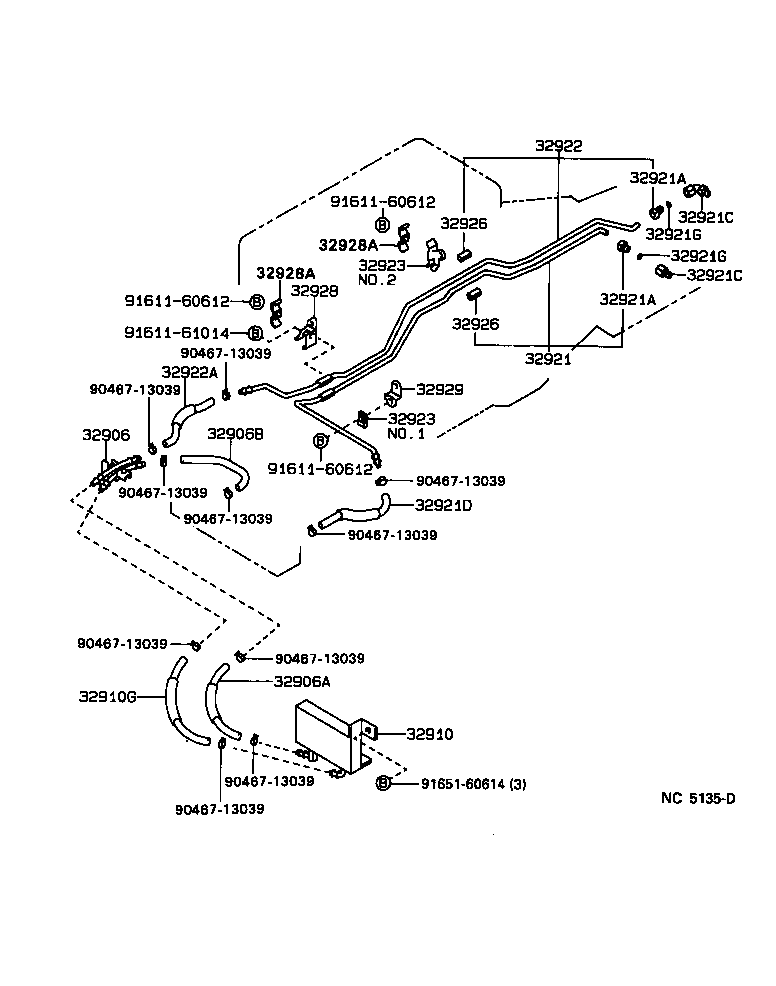

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906 - TUBE SUB-ASSY, OIL COOLER | ||||
| 32907-22040 |
RX81..4FC |
1 | ||
| 32907-22040 |
RX8#..4FC..V |
2 | ||
| 32906A - HOSE, OIL COOLER TUBE(FOR INLET) | ||||
| 32941-22440 |
RX81..4FC |
1 | ||
| 32906B - HOSE, OIL COOLER TUBE(FOR OUTLET) | ||||
| 32942-22300 |
RX81..4FC |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-22030 |
RX8#..4FC..V |
1 | ||
| 32910G - HOSE, OIL COOLER OUTLET | ||||
| 32941-22460 |
RX81..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-22480 |
RX8#..4FC |
2 | ||
| 32921-22480 |
RX8#..4FC |
1 | ||
| 32921A - NUT, UNION(FOR OIL COOLER TUBE) | ||||
| 90402-14004 |
GX81,LX80,RX8#..4FC |
4 | ||
| 90402-14004 |
GX81,RX8#..4FC |
2 | ||
| 90402-14004 |
RX81..4FC |
2 | ||
| 32921A - NUT, UNION(FOR OIL COOLER TUBE) | ||||
| 90402-14004 |
GX81,LX80,RX8#..4FC |
4 | ||
| 90402-14004 |
GX81,RX8#..4FC |
2 | ||
| 90402-14004 |
RX81..4FC |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
GX81,LX80,RX8#..4FC FR |
1 | ||
| 90407-14003 |
GX81,LX80,RX8#..4FC RR |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
GX81,LX80,RX8#..4FC FR |
1 | ||
| 90407-14003 |
GX81,LX80,RX8#..4FC RR |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-22500 |
RX81..4FC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GX81,LX80,MX81,RX8#..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GX81,LX80,MX81,RX8#..4FC |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-22530 |
RX8#..4FC |
2 | ||
| 32922-22530 |
RX81..4FC |
1 | ||
| 32922-22530 |
RX81..4FC |
2 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32941-12141 |
RX8#..4FC |
1 | ||
| 32941-12141 |
RX81..4FC |
1 | ||
| 32941-12140 |
RX8#..4FC |
1 | ||
| 32942-22360 |
RX81..4FC |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-22020 |
RX8#..4FC |
1 | ||
| 90461-06033 |
RX8#..4FC |
1 | ||
| 90461-06033 |
RX8#..4FC |
2 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-22020 |
RX8#..4FC |
1 | ||
| 90461-06033 |
RX8#..4FC |
1 | ||
| 90461-06033 |
RX8#..4FC |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
RX8#..4FC L=35,ID=8 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
RX8#..4FC L=35,ID=8 |
4 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-22070 |
RX8#..4FC |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90462-12085 |
RX81..4FC |
2 | ||
| 90462-12085 |
GX81,RX8#..4FC |
2 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90462-12085 |
RX81..4FC |
2 | ||
| 90462-12085 |
GX81,RX8#..4FC |
2 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-20070 |
RX8#..4FC |
1 | ||
| Common parts | ||||
| 90467-13039 | ||||
| 91611-60612 | ||||
| 91611-61014 | ||||
| 91651-60614 | ||||
