RX81L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

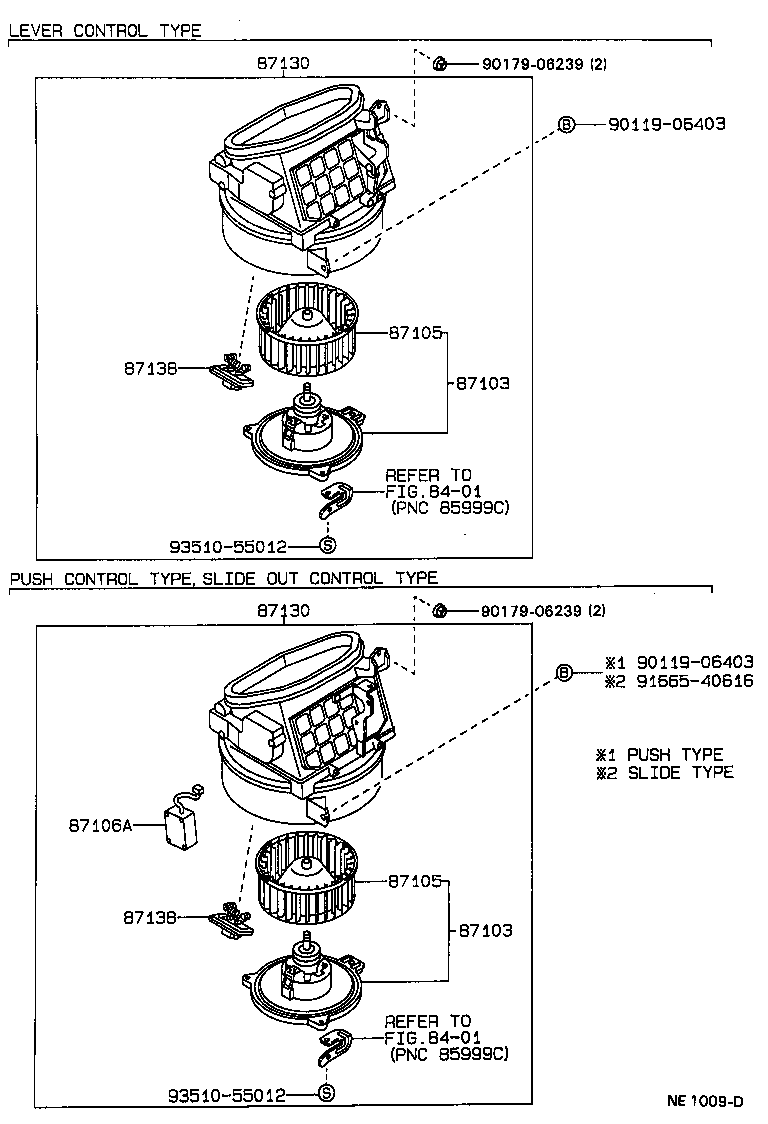

HEATER BLOWER

diagram 8401 8401 87103 87103 87105 87105 87106A 87130 87130 87138 87138 9011906403 9011906403 9017906239 9017906239 9166540616 9351055012 9351055012
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-22030

GX81,LX80,MX81,RX8#..LHD..GEN

 1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-22030

GX81,LX80,MX81,RX8#..LHD..GEN

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87134-30050

GX81,LX80,MX81,RX8#..LHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87134-30050

GX81,LX80,MX81,RX8#..LHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-22260

GX81,LX80,MX81,RX8#..LHD..GEN

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-22260

GX81,LX80,MX81,RX8#..LHD..GEN

 1
87138 - RESISTOR, HEATER BLOWER
87138-22060

GX81,LX80,MX8#,RX8#..ARL,GEN

 1
87138 - RESISTOR, HEATER BLOWER
87138-22060

GX81,LX80,MX8#,RX8#..ARL,GEN

 1
Common parts
90119-06403
90179-06239
91665-40616
93510-55012
Linked diagrams
8401

ILLUST NO. 2 OF 3(8808- )GX81,MX81,RX8#

Click highlighted areas on diagram

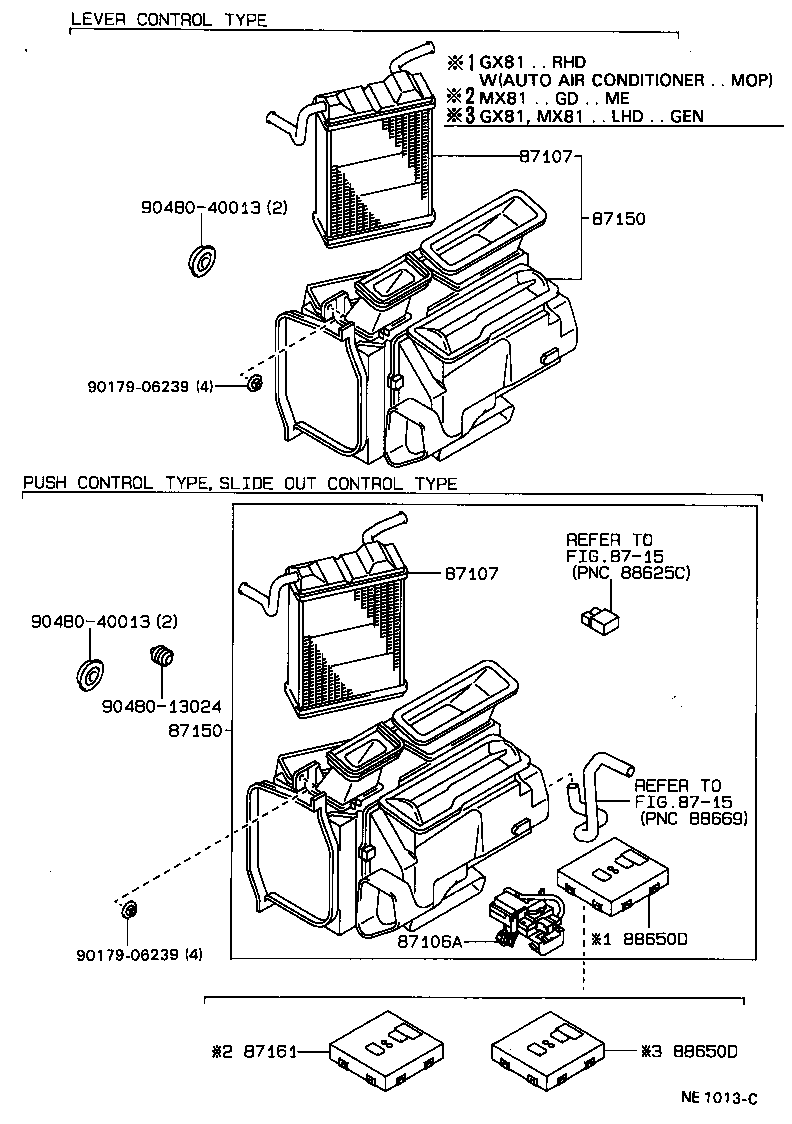

HEATER RADIATOR

diagram 87106A 87107 87107 8715 8715 87150 87150 87161 88650D 88650D 9017906239 9017906239 9048013024 9048040013 9048040013
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22190

GX81,LX80,MX81,RX8#..LHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22190

GX81,LX80,MX81,RX8#..LHD

 1
87150 - RADIATOR ASSY, HEATER
87150-22520

GX81,LX80,MX81,RX8#..LHD

 1
87150 - RADIATOR ASSY, HEATER
87150-22520

GX81,LX80,MX81,RX8#..LHD

 1
Common parts
90179-06239
90480-13024
90480-40013
Linked diagrams
8715

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

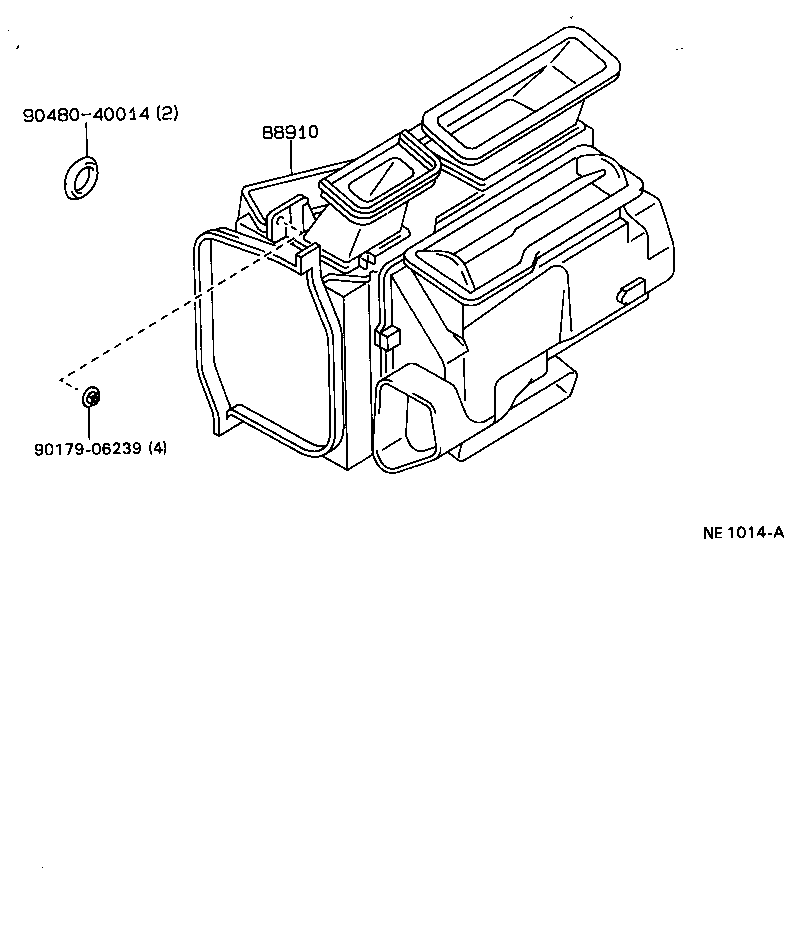

BOOST VENTILATOR

diagram 88910 9017906239 9048040014
Part # Description Qty Price
88910 - VENTILATOR ASSY, BOOST
88910-22150

MX81,RX8#..LHD..XL;LX80,RX8#..LHD..GL..GEN

 1
Common parts
90179-06239
90480-40014
