RX81L-AEMES (1988)
Toyota Cressida
Production
Aug 1988
-
Aug 1990
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )GX81,MX8#,RX81

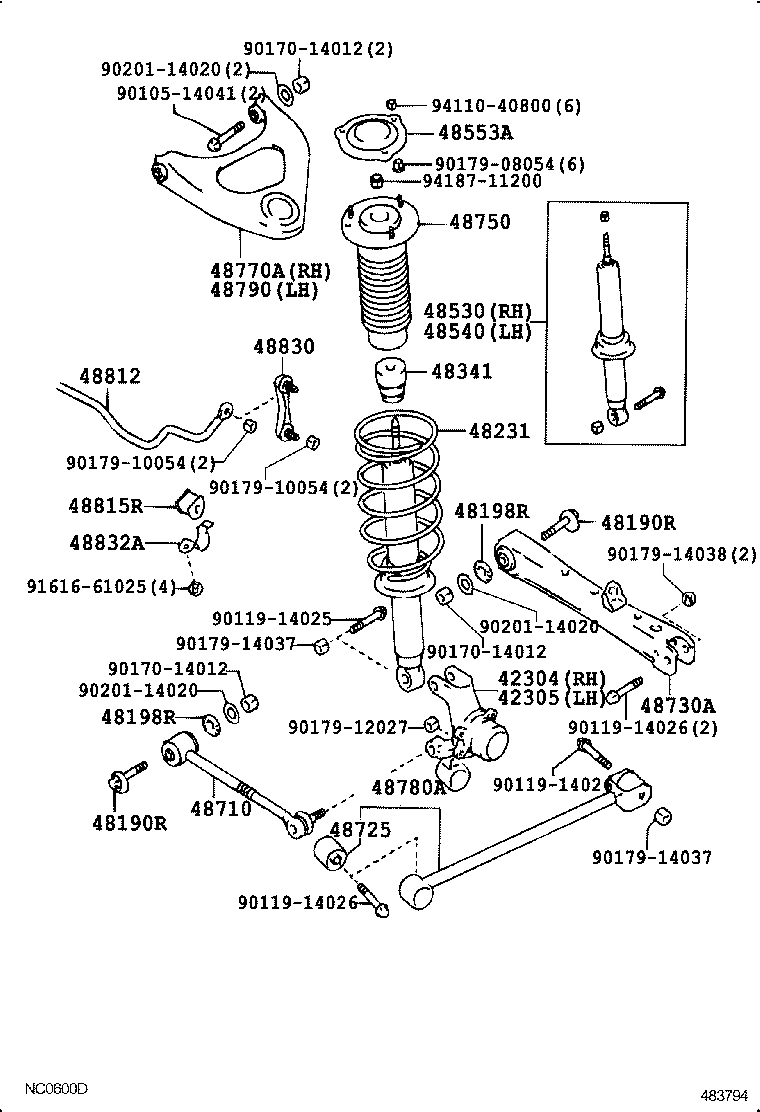

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-22010 |
GX81,MX8#,RX81 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-22010 |
GX81,MX8#,RX81 |
1 | ||
| 48190R - CAM ASSY, CAMBER ADJUST | ||||
| 48190-22020 |
GX81,MX8#,RX81 |
4 | ||
| 48190R - CAM ASSY, CAMBER ADJUST | ||||
| 48190-22020 |
GX81,MX8#,RX81 |
4 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-14010 |
GX81,MX8#,RX81 |
4 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-14010 |
GX81,MX8#,RX81 |
4 | ||
| 48231 - SPRING, COIL, REAR | ||||
| 48231-2A080 |
RX81 |
2 | ||
| 48231-2A070 |
MX8#,RX81 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-22130 |
GX81,LX80,MX8#,RX8# |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-29087 |
MX81,RX81 MARK 48530-22091 |
1 | ||
| 48530-29086 |
MX81,RX81 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-29086 |
MX81,RX81 |
1 | ||
| 48530-29087 |
MX81,RX81 MARK 48530-22091 |
1 | ||
| 48553A - CAP, SHOCK ABSORBER | ||||
| 48553-22030 |
GX81,LX80,MX8#,RX8# |
2 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-22240 |
GX81,MX8#,RX81 |
2 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-22110 |
GX81,MX8#,RX81 |
2 | ||
| 48730A - ARM ASSY, REAR SUSPENSION, NO.2 | ||||
| 48730-22020 |
GX81,MX8#,RX81 |
2 | ||
| 48750 - SUPPORT ASSY, REAR SUSPENSION | ||||
| 48750-22050 |
GX81,MX8#,RX81 |
2 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-22010 |
GX81,MX8#,RX81 |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-22010 |
GX81,MX8#,RX81 |
2 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-22010 |
GX81,MX8#,RX81 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-22190 |
GX81,MX81,RX81 |
1 | ||
| 48812-22190 |
MX81..V;GX81,RX81 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-22090 |
MX81..V;GX81,RX81 |
2 | ||
| 48815-22090 |
GX81,MX81,RX81 |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-30010 |
GX81,MX8#,RX81 |
2 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-22040 |
GX81,MX8#,RX81 |
2 | ||
| Common parts | ||||
| 90105-14041 | ||||
| 90119-14025 | ||||
| 90119-14026 | ||||
| 90170-14012 | ||||
| 90179-08054 | ||||
| 90179-10054 | ||||
| 90179-12027 | ||||
| 90179-14037 | ||||
| 90179-14038 | ||||
| 90201-14020 | ||||
| 91616-61025 | ||||
| 94110-40800 | ||||
| 94187-11200 | ||||
