RX81L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

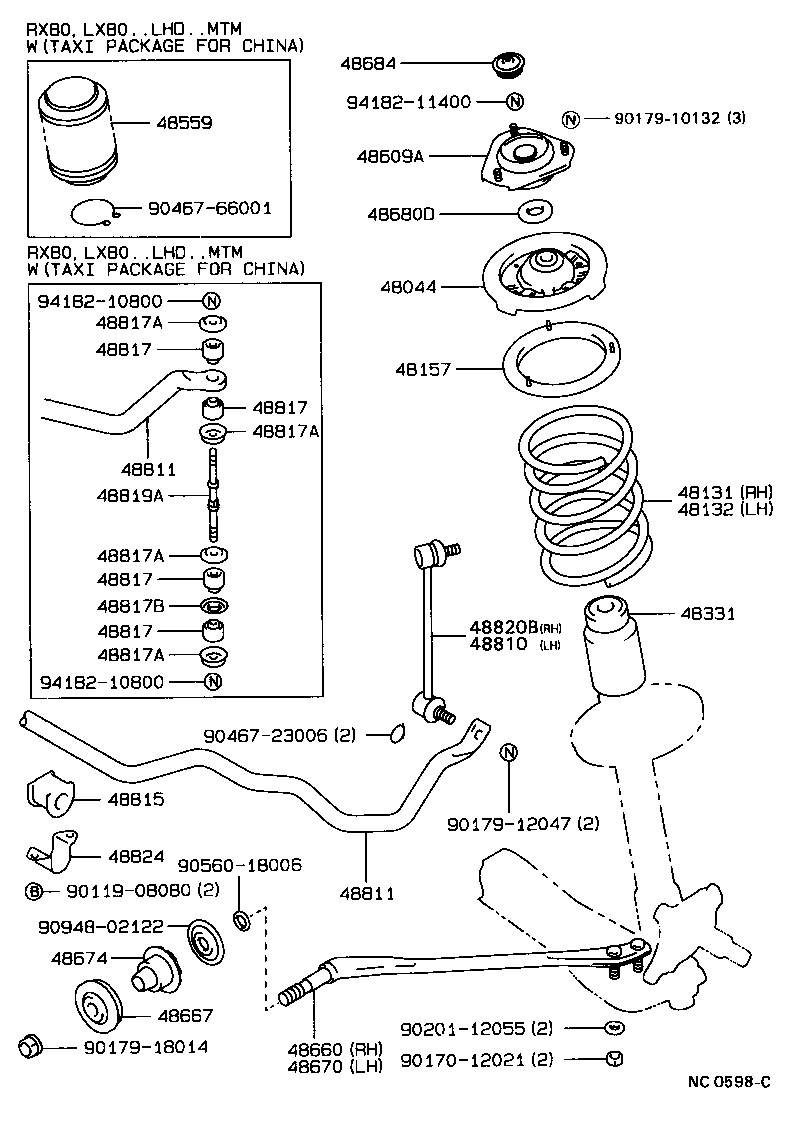

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 48044 48131 48132 48157 48331 48559 48609A 48660 48667 48670 48674 48680D 48684 48810 48811 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48819A 48820B 48824 9011908080 9017012021 9017910132 9017912047 9017918014 9020112055 9046723006 9046766001 9056018006 9094802122 9418210800 9418210800 9418211400
Part # Description Qty Price
48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1
48044-22050

GX81,LX80,MX8#,RX8#

 2
48131 - SPRING, FRONT COIL, RH
48131-2A500

RX81

 1
48132 - SPRING, FRONT COIL, LH
48131-2A500

RX81

 1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-22030

GX81,LX80,MX8#,RX8#

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-14020

GX81,LX80,MX8#,RX8#

 2
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-22070

GX81,LX80,MX8#,RX8#

 2
48660 - BAR ASSY, STRUT, RH
48660-22080

GX81,LX80,MX8#,RX8#

 1
48667 - RETAINER, STRUT BAR
48667-22020

GX81,LX80,MX8#,RX8#

 2
48670 - BAR ASSY, STRUT, LH
48670-22080

GX81,LX80,MX8#,RX8#

 1
48674 - CUSHION, STRUT BAR
48674-22120

GX81,LX80,MX8#,RX8#

 4
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049

GX81,LX80,MX8#,RX8#

 2
48684 - COVER, BEARING DUST
48684-14020

GX81,LX80,MX8#,RX8#

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-22010

GX81,LX80,MX8#,RX8#

 1
48811 - BAR, STABILIZER, FRONT
48811-22450

MX81;RX81..GEN

 1
48811 - BAR, STABILIZER, FRONT
48811-22450

MX81;RX81..GEN

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-22110

MX81;RX81..GEN

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-22010

GX81,LX80,MX8#,RX8#

 1
48824 - BRACKET, STABILIZER, FRONT
48824-22060

GX81,LX80,MX8#,RX8#

 2
Common parts
90119-08080
90170-12021
90179-10132
90179-12047
90179-18014
90201-12055
90467-23006
90467-66001
90560-18006
90948-02122
94182-10800
94182-11400

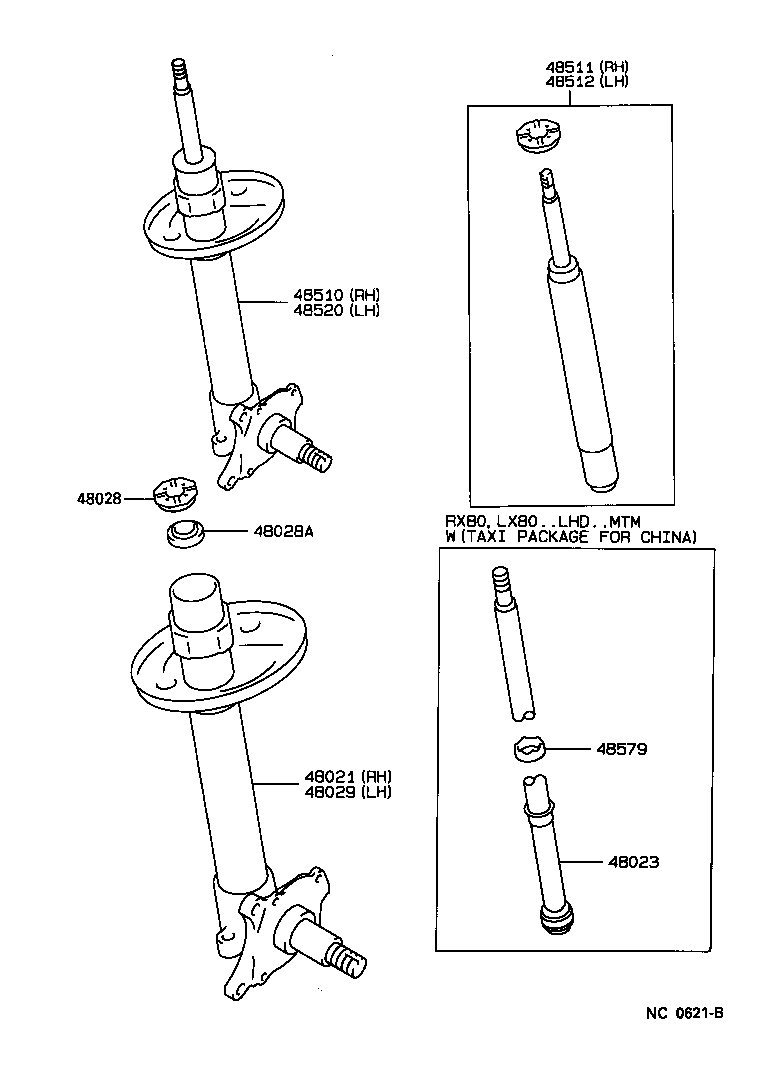

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 48021 48023 48028 48028A 48029 48510 48511 48512 48520 48579
Part # Description Qty Price
48021 - SHELL SUB-ASSY, W/STEERING KNUCKLE, RH
48021-22120

GX81,LX80,MX8#,RX8#

 1
48028 - NUT SUB-ASSY, SHOCK ABSORBER RING
48028-32010

GX81,LX80,MX8#,RX8#

 2
48028A - SEAL, OIL(FOR SHOCK ABSORBER RING NUT)
90316-22008

GX81,LX80,MX8#,RX8#

 2
48029 - SHELL SUB-ASSY, W/STEERING KNUCKLE, LH
48029-22120

GX81,LX80,MX8#,RX8#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-22510

MX8#,RX8#

 1
48510-22510

MX81,RX8#

 1
48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
48511-22300

MX8#,RX8#

 1
48511-22300

MX81,RX8#

 1
48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
48511-22300

MX8#,RX8#

 1
48511-22300

MX81,RX8#

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-22510

MX81,RX8#

 1
48520-22510

MX8#,RX8#

 1
