RX80R-AEPES (1988)

Toyota Cressida

Production Aug 1988 - Feb 1993
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

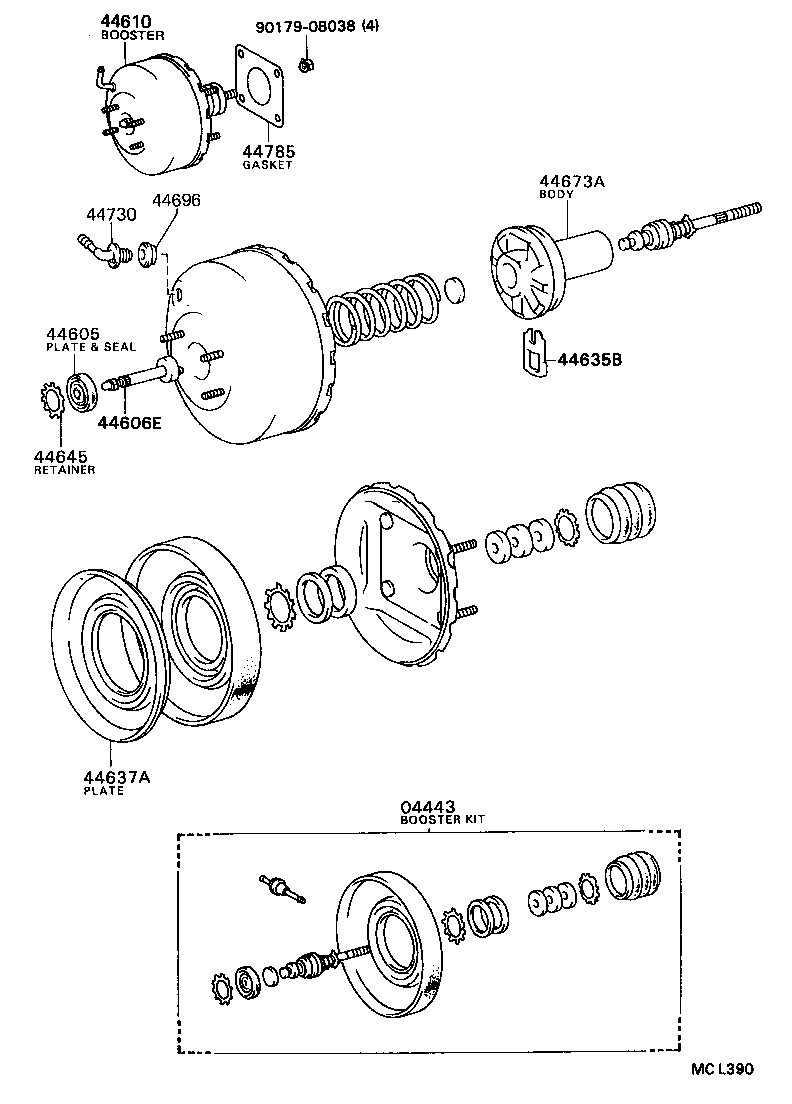

ILLUST NO. 1 OF 2(8808- )GX81..RHD ; (8808- )LX80,RX8#

Click highlighted areas on diagram

JKC

diagram 04443 44605 44606E 44610 44635B 44637A 44645 44673A 44696 44730 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-22650

RX80..RHD

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

GX81..RHD;LX80,RX8#

 1
44605-22021

LX80;GX81,RX80..RHD

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44608-32020

LX80;RX80..RHD

 1
44610 - BOOSTER ASSY, BRAKE
44610-22720

RX80..RHD

 1
44635B - KEY, VALVE STOPPER
44633-28130

LX80;RX80..RHD

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32040

LX80;GX81,RX80..RHD

 1
44637-32040

GX81..RHD;LX80,RX8#

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

GX81..RHD;LX80,RX8#

 1
44645-22020

LX80;GX81,RX80..RHD

 1
44673A - BODY, BOOSTER VALVE
44673-32020

GX81,RX80..RHD

 1
44673-32020

RX8#;GX81..RHD

 1
44696 - GROMMET, CHECK VALVE
90480-24517

RX80..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30010

RX80..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX81,LX80,MX8#,RX8#

 1
Common parts
90179-08038

ILLUST NO. 2 OF 2(8808- )RX8#

Click highlighted areas on diagram

diagram 44730C 44730C 44730F 44730F 44730P 44763A 44772B 44773F 44774 91655F0616
Part # Description Qty Price
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

RX80..RHD

 2
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

RX80..RHD

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

GX81,MX81,RX8#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

GX81,MX81,RX8#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-22400

RX80..RHD

 1
Common parts
91655-F0616
