RX80R-AEPES (1988)

Toyota Cressida

Production Aug 1988 - Feb 1993
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9302)GX81,LX80,MX81,RX8#..4FC ; (9302-)4FC

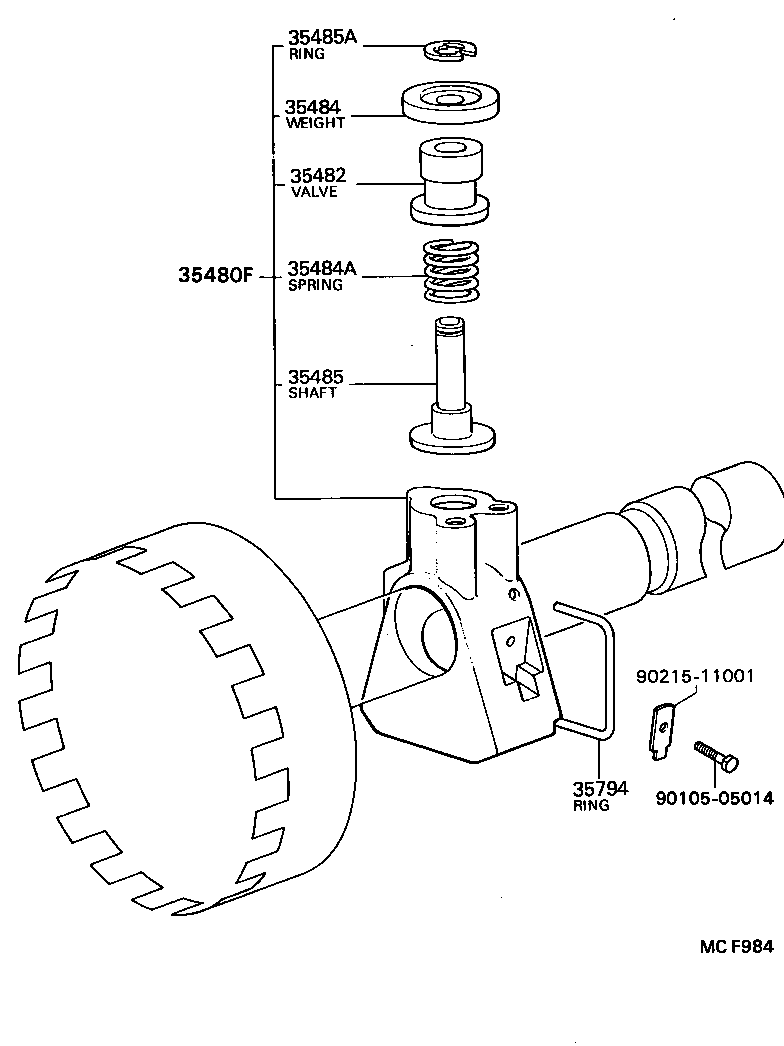

Click highlighted areas on diagram

A42D,A42DL,A43D,A43DL

diagram 35480F 35482 35484 35484A 35485 35485A 35794 9010505014 9021511001
Part # Description Qty Price
35480F - BODY ASSY, GOVERNOR
35480-30060

GX81,MX81,RX8#..4FC

 1
35482 - VALVE, GOVERNOR
35482-22010

GX81,MX81,RX8#..4FC

 1
35484 - WEIGHT, GOVERNOR, OUTER
35484-22010

GX81,MX81,RX8#..4FC

 1
35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
90501-09673

GX81,MX81,RX8#..4FC

 1
35485 - SHAFT, GOVERNOR VALVE
35485-22010

GX81,LX80,MX81,RX8#..4FC

 1
35485A - RING, E (FOR GOVERNOR VALVE SHAFT)
90523-05020

GX81,LX80,MX81,RX8#..4FC

 1
35794 - RING, GOVERNOR RETAINING
35794-22010

GX81,LX80,MX81,RX8#..4FC

 1
Common parts
90105-05014
90215-11001
