RX72LG-XWPNS (1986)

Toyota Cressida

Production Aug 1986 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )RX72

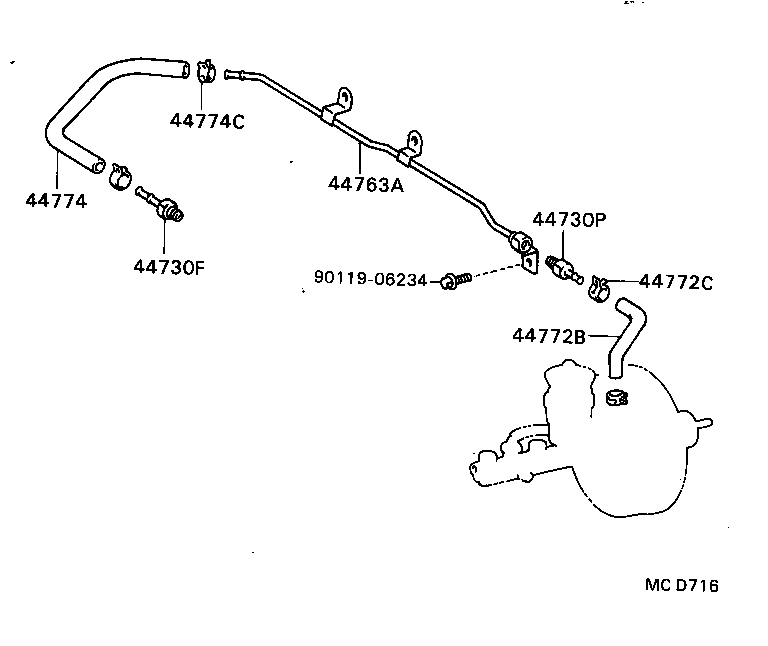

Click highlighted areas on diagram

diagram 44730F 44730P 44763A 44772B 44772C 44774 44774C 9011906234
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RX72,73

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44580-22030

RX72,73

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-22120

RX72,73

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

RX70,72..LHD;GX71,LX7#,RX71,73,YX70

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-22050

RX7#..LHD

 1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

GX71,RX7#..LHD..(GEN,ME)

 2
Common parts
90119-06234
