RX71L-XEMES (1986)

Toyota Cressida

Production Aug 1986 - May 1987
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )SED,WG..ARL,GEN,ME

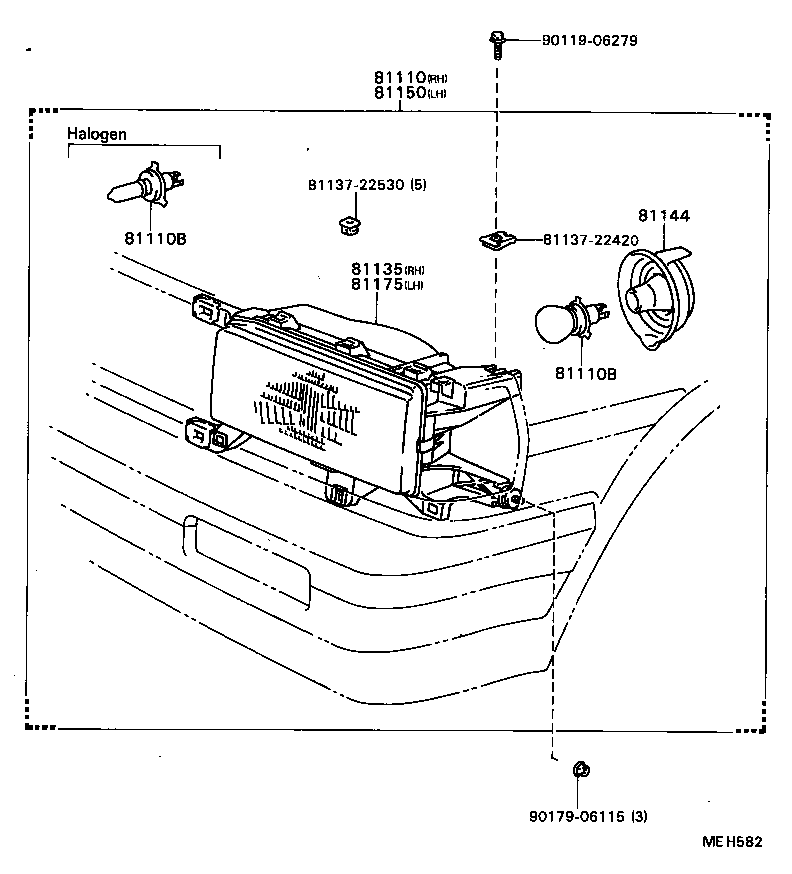

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81135 8113722420 8113722530 81144 81150 81175 9011906279 9017906115
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13016

GX71,LX70,RX7#..LHD..GEN

12V 60/55W,*HAL *YE,12V 60/55W,YELLOW HALOGEN

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13016

GX71,LX70,RX7#..LHD..GEN

12V 60/55W,*HAL *YE,12V 60/55W,YELLOW HALOGEN

 2
Common parts
81137-22420
81137-22530
90119-06279
90179-06115
