RX70R-XEPES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )GX71,RX7#..CBR,EFI

Click highlighted areas on diagram

diagram 2179160010 2182115010 88031A 88031A 88683A 88691 88691 88691 9046400156 9046400156 9165140612 9165140612 9165160814 9613230600 9613230600
Part # Description Qty Price
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
21609-37051

RX70,72..RHD

 1
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
21609-37051

RX70,72..RHD

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22360

RX7#..GEN,SA

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22360

RX7#..GEN,SA

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22360

RX7#..GEN,SA

 1
Common parts
21791-60010
21821-15010
90464-00156
91651-40612
91651-60814
96132-30600

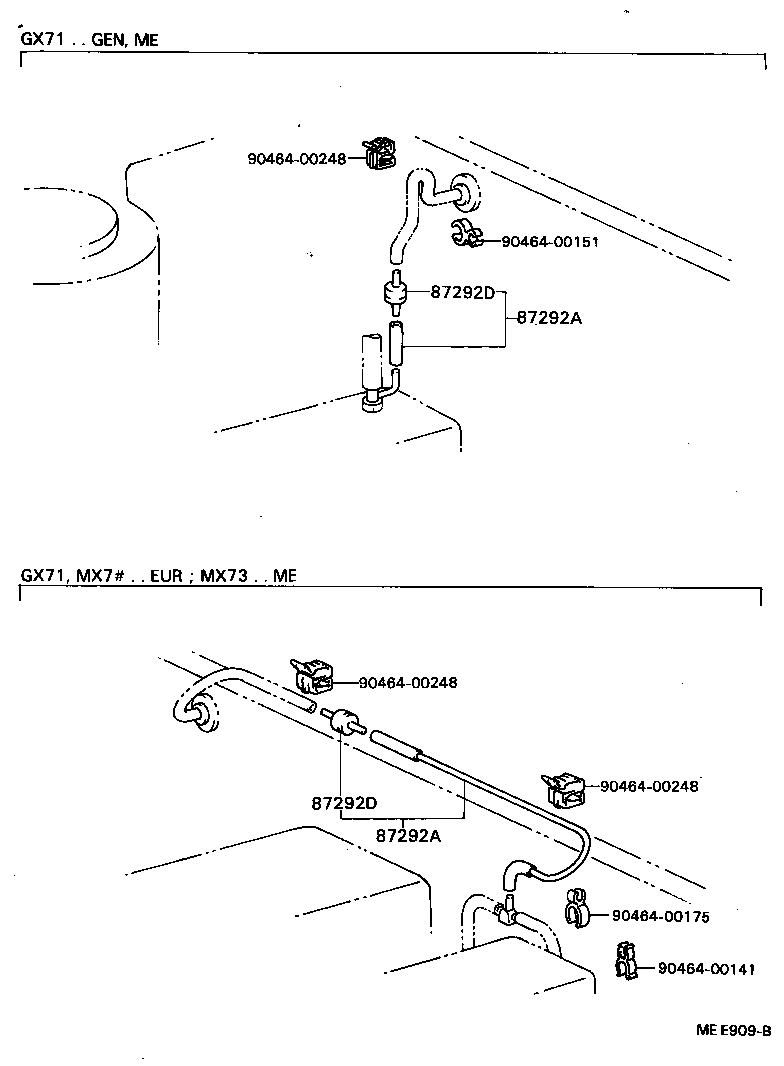

(8408-8608)GX71,MX7#..LHD..EUR ; (8408- )GX71..LHD..EFI ; (8510- )

Click highlighted areas on diagram

diagram 87292A 87292A 87292D 87292D 9046400141 9046400151 9046400175 9046400248 9046400248 9046400248
Part # Description Qty Price
Common parts
90464-00141
90464-00151
90464-00175
90464-00248
