RX70R-XEPES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )RHD..ARL,EUR ; (8408- )GX71,RX70,72,YX70..RHD ; (8701- )MX73..EFI.

Click highlighted areas on diagram

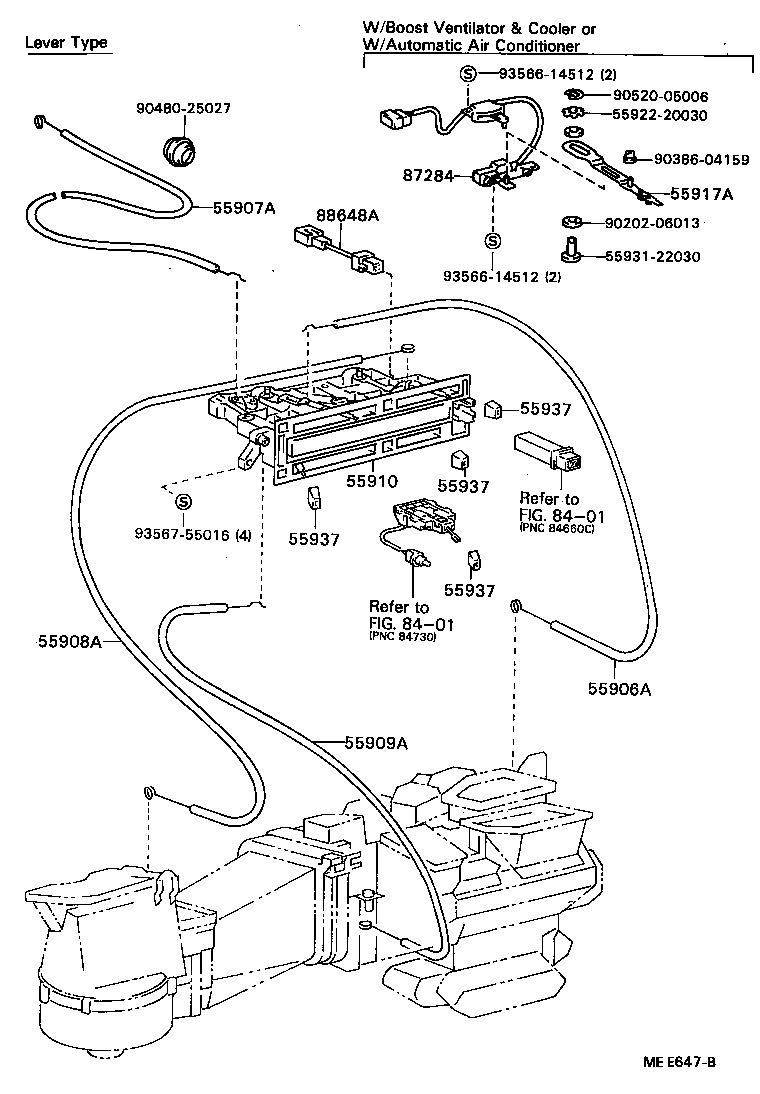

diagram 55906A 55907A 55908A 55909A 55910 55917A 5592220030 5593122030 55937 55937 55937 55937 8401 8401 87284 88648A 9020206013 9038604159 9048025027 9052005006 9356614512 9356614512 9356755016
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-22100

GX71,RX70,72,YX70..RHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-22160

GX71,RX70,72,YX70..RHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-22050

GX71,RX70,72,YX70..RHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-22040

GX71,LX7#,RX70,YX70

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-22290

GX71,RX70,YX70..RHD

W/*HEA,W/*HEA & COOLER

 1
55910-22310

RX70,72..RHD..GEN

W/*BV ONLY

 1
55910-22300

RX70,72..RHD..GEN

W/*BV & COOLER

 1
55917A - LEVER, TEMPERATURE DAMPER CONTROL
55917-22070

RX70,72..RHD..GEN

W/*BV & COOLER

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-30081

GX71,RX70,YX70..RHD

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-30081

GX71,RX70,YX70..RHD

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-30081

GX71,RX70,YX70..RHD

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-30081

GX71,RX70,YX70..RHD

 4
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-22070

RX70,72..RHD..GEN

W/*BV & COOLER

 1
Common parts
55922-20030
55931-22030
90202-06013
90386-04159
90480-25027
90520-05006
93566-14512
93567-55016
Linked diagrams
8401

(8408- )

Click highlighted areas on diagram

diagram 88625C 88625C 88625C 88894F 9017906032 9018305094 9356755016
Part # Description Qty Price
Common parts
90179-06032
90183-05094
93567-55016

(8408- )RHD

Click highlighted areas on diagram

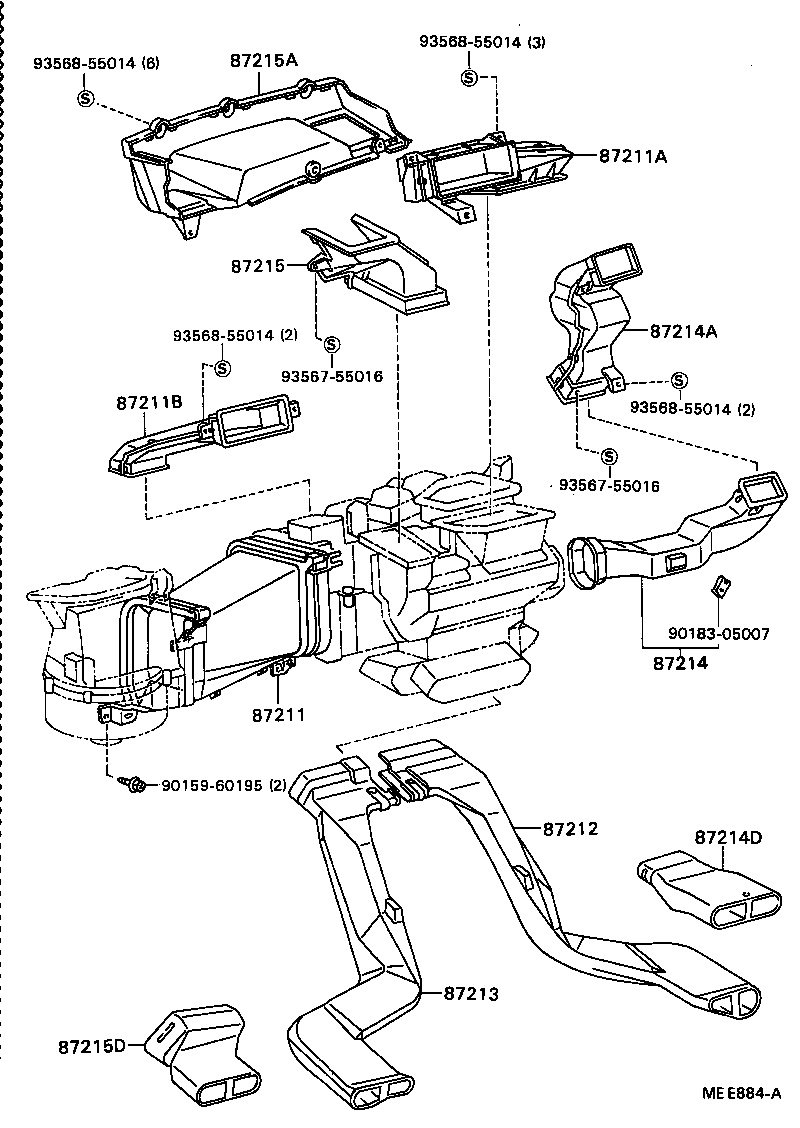

diagram 87211 87211A 87211B 87212 87213 87214 87214A 87214D 87215 87215A 87215D 9015960195 9018305007 9356755016 9356755016 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87211-22100

GX71,RX70,72,YX70..RHD

 1
87211A - DUCT, AIR, NO.2
55088-22060

GX71,MX73,RX70,72,YX70..RHD

 1
87211B - DUCT, AIR, NO.3
55089-22010

GX71,MX73,RX70,72,YX70..RHD

 1
87212 - DUCT, AIR, REAR NO.1
87202-22020

GX71,LX7#,MX7#,RX70,YX70

 1
87213 - DUCT, AIR, REAR NO.2
87203-22030

GX71,LX7#,MX7#,RX70,YX70

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-22070

GX71,RX70,YX70..RHD

W/O COOLER

 1
55085-22060

GX71,MX73,RX70,YX70..RHD

W/COOLER

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55084-22050

GX71,MX73,RX70,YX70..RHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55086-22010

GX71,MX73,RX70,72,YX70..RHD

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55087-22070

GX71,MX73,RX70,YX70..RHD

 1
Common parts
90159-60195
90183-05007
93567-55016
93568-55014
