RX70R-XEPES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8709)RHD

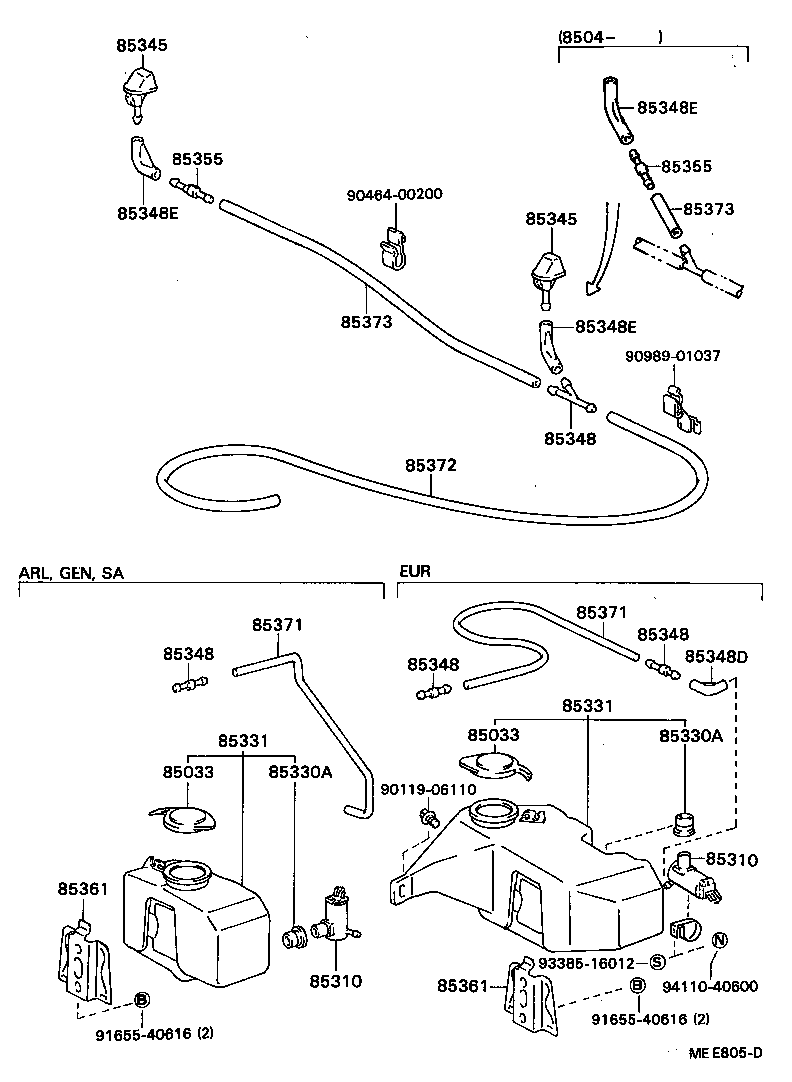

Click highlighted areas on diagram

diagram 85033 85033 85310 85310 85330A 85330A 85331 85331 85345 85345 85348 85348 85348 85348 85348D 85348E 85348E 85348E 85355 85355 85361 85361 85371 85371 85372 85373 85373 9011906110 9046400200 9098901037 9165540616 9165540616 9338516012 9411040600
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-12320

GX71,LX7#,MX7#,RX7#,YX70

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-12320

GX71,LX7#,MX7#,RX7#,YX70

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GX71,LX7#,MX7#,RX7#,YX70

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GX71,LX7#,MX7#,RX7#,YX70

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-22360

GX71,MX73,RX70,72,YX70..RHD..(ARL,GEN,SA)

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-22360

GX71,MX73,RX70,72,YX70..RHD..(ARL,GEN,SA)

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-22080

GX71,MX73,RX70..RHD

 2
85035-22160

GX71,MX73,RX70,YX70..RHD

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-22080

GX71,MX73,RX70..RHD

 2
85035-22160

GX71,MX73,RX70,YX70..RHD

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

GX71,LX7#,MX7#,RX7#,YX70

3 WAY

 1
85349-89122

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

2 WAY,NO.1

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

GX71,LX7#,MX7#,RX7#,YX70

3 WAY

 1
85349-89122

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

2 WAY,NO.1

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

GX71,LX7#,MX7#,RX7#,YX70

3 WAY

 1
85349-89122

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

2 WAY,NO.1

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

GX71,LX7#,MX7#,RX7#,YX70

3 WAY

 1
85349-89122

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

2 WAY,NO.1

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-14481

GX71,LX7#,MX7#,RX7#,YX70

 2
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-14481

GX71,LX7#,MX7#,RX7#,YX70

 2
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-14481

GX71,LX7#,MX7#,RX7#,YX70

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

GX71,LX7#,MX7#,RX7#,YX70

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

GX71,LX7#,MX7#,RX7#,YX70

 1
85361 - HOLDER, WINDSHIELD WASHER
16611-22010

GX71,LX7#,MX7#,RX7#,YX70

 1
85361 - HOLDER, WINDSHIELD WASHER
16611-22010

GX71,LX7#,MX7#,RX7#,YX70

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

*H,L=320

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

*H,L=320

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

GX71,LX7#,MX7#,RX70,YX70

*H,L=450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

GX71,LX7#,MX7#,RX70,YX70

L=450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

GX71,LX7#,MX7#,RX70,YX70

L=450

 1
Common parts
90119-06110
90464-00200
90989-01037
91655-40616
93385-16012
94110-40600
