RX70R-XEPES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8608)ARL,EUR,GEN ; (8408- )SA

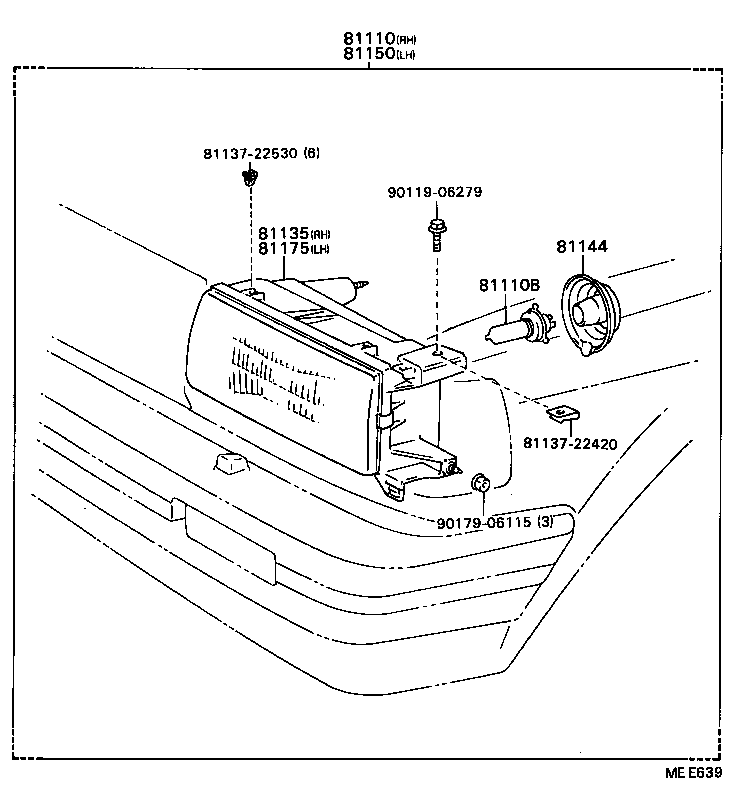

Click highlighted areas on diagram

diagram 81110 81110B 81135 8113722420 8113722530 81144 81150 81175 9011906279 9017906115
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80413

GX71,MX73,RX70..RHD

WHITE HALOGEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA

12V 60/55W,*HAL *WH,12V 60/55W,WHITE HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81135-22480

GX71,MX73,RX70,YX70..RHD

HALOGEN

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA

 2
81150 - HEADLAMP ASSY, LH
81150-80405

GX71,MX73,RX70,YX70..RHD

WHITE HALOGEN

 1
81175 - UNIT ASSY, HEADLAMP, LH
81175-22480

GX71,MX73,RX70,YX70..RHD

HALOGEN

 1
Common parts
81137-22420
81137-22530
90119-06279
90179-06115

(8608- )SED,WG..ARL,GEN,ME

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81135 8113722420 8113722530 81144 81150 81175 9011906279 9017906115
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80413

GX71,MX73,RX70..RHD

WHITE HALOGEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA

12V 60/55W,*HAL *WH,12V 60/55W,WHITE HALOGEN

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA

12V 60/55W,*HAL *WH,12V 60/55W,WHITE HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81135-22480

GX71,MX73,RX70,YX70..RHD

HALOGEN

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA

 2
81150 - HEADLAMP ASSY, LH
81150-80405

GX71,MX73,RX70,YX70..RHD

WHITE HALOGEN

 1
81175 - UNIT ASSY, HEADLAMP, LH
81175-22480

GX71,MX73,RX70,YX70..RHD

HALOGEN

 1
Common parts
81137-22420
81137-22530
90119-06279
90179-06115
