RX70R-XEPES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )RHD

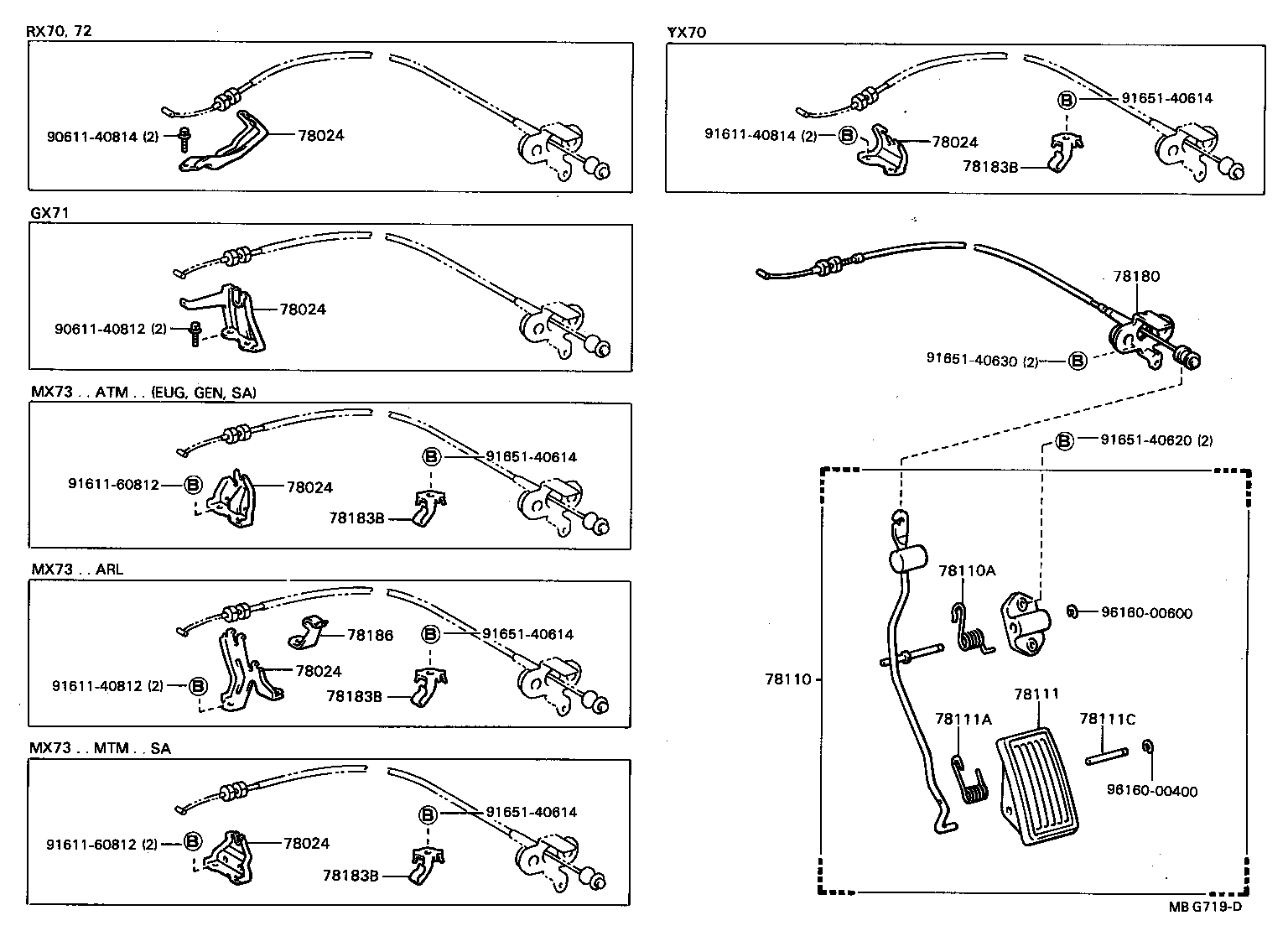

Click highlighted areas on diagram

diagram 78024 78024 78024 78024 78024 78024 78110 78110A 78111 78111A 78111C 78180 78183B 78183B 78183B 78183B 78186 9061140812 9061140814 9161140812 9161140814 9161160812 9161160812 9165140614 9165140614 9165140614 9165140614 9165140620 9165140630 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22030

RX70,72..RHD

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22030

RX70,72..RHD

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22030

RX70,72..RHD

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22030

RX70,72..RHD

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22030

RX70,72..RHD

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22030

RX70,72..RHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-22230

GX71,MX73,RX70,72..SED..RHD..4FC

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18060

MX73..5F..EUG;GX71,LX7#,MX7#,RX70,72..4FC

 1
78111 - PEDAL, ACCELERATOR
78111-12100

GX71,LX7#,MX7#,RX7#,YX70

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23088

GX71,LX7#,MX7#,RX7#,YX70

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GX71,LX7#,MX7#,RX7#,YX70

 1
78180 - WIRE ASSY, ACCELERATOR
78180-22580

RX70,72..RHD

 1
Common parts
90611-40812
90611-40814
91611-40812
91611-40814
91611-60812
91651-40614
91651-40620
91651-40630
96160-00400
96160-00600
