RX70R-XEPES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8608)SED,WG ; (8608- )SA

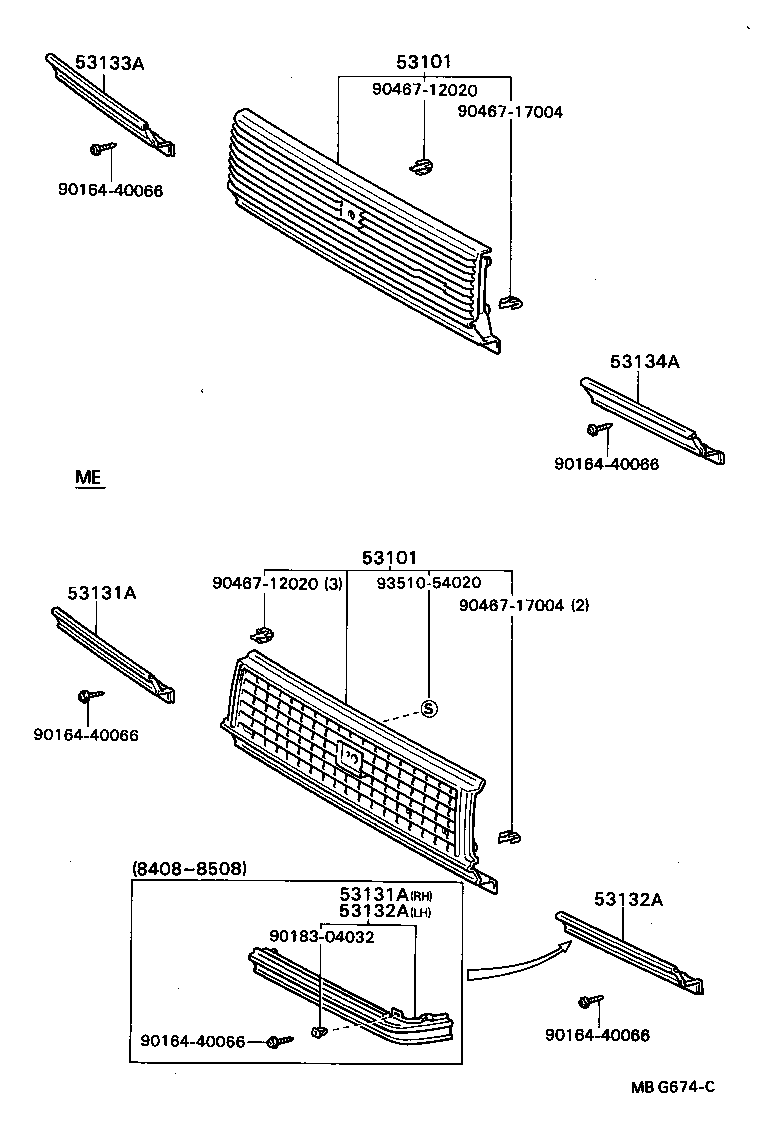

Click highlighted areas on diagram

diagram 53101 53101 53131A 53131A 53132A 53132A 53133A 53134A 9016440066 9016440066 9016440066 9016440066 9016440066 9018304032 9046712020 9046712020 9046717004 9046717004 9351054020
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-22120

GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-22120

GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA

 1
53133A - DOOR, HEADLAMP, LOWER RH
53133-22080

GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA

 1
53134A - DOOR, HEADLAMP, LOWER LH
53134-22040

GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA

 1
Common parts
90164-40066
90183-04032
90467-12020
90467-17004
93510-54020

(8608- )SED,WG..ARL,GEN,ME

Click highlighted areas on diagram

diagram 53101 53131A 53132A 53133A 53134A 9016440066 9016440066 9016440066 9016440066 9018904114 9018904115 9046712020 9046712032 9046717004 9351054020
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-22120

GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA

 1
53133A - DOOR, HEADLAMP, LOWER RH
53133-22080

GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA

 1
53134A - DOOR, HEADLAMP, LOWER LH
53134-22040

GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA

 1
Common parts
90164-40066
90189-04114
90189-04115
90467-12020
90467-12032
90467-17004
93510-54020
