RX70R-XEPES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )RX70,YX70..SED..RHD

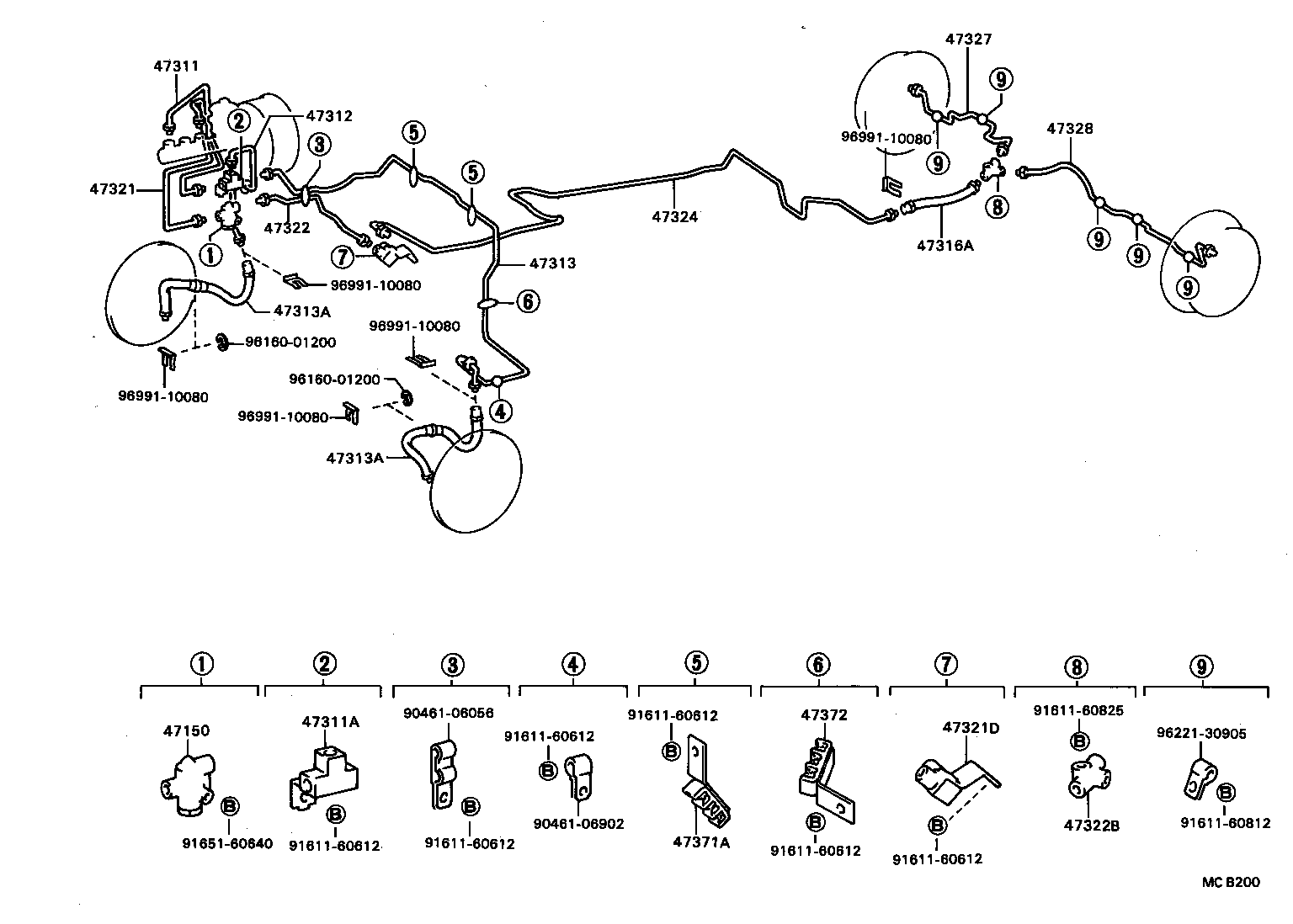

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47316A 47321 47321D 47322 47322B 47324 47327 47328 47371A 47372 9046106056 9046106902 9161160612 9161160612 9161160612 9161160612 9161160612 9161160612 9161160812 9161160825 9165160640 9616001200 9616001200 9622130905 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12031

RX7#..GEN,ME

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-22310

RX70,72..RHD..GEN

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10177

GX71,RX70..RHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-22130

GX71,RX70,72..RHD..GEN

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-22270

RX70,72..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02462

GX71,LX7#,MX7#,RX7#,YX70

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02462

GX71,LX7#,MX7#,RX7#,YX70

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32955

LX70,RX70,72,YX70..HT,SED

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-22130

RX70,72,YX70..RHD

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10119

RX7#,YX70

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-22140

RX70,72,YX70..RHD

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

LX70,MX72,RX70,72,YX70

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-22170

RX70,72,YX70..HT,SED

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-22100

LX70,RX70,72,YX70..HT,SED

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-22100

LX70,RX70,72,YX70..HT,SED

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-22030

GX71,RX70,YX70..RHD

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-22040

GX71,LX7#,RX70,71,72,YX70

 1
Common parts
90461-06056
90461-06902
91611-60612
91611-60812
91611-60825
91651-60640
96160-01200
96221-30905
96991-10080
