RX70R-XEPES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8608)GX71..ME ; (8408- )GX71,LX7#,RX7#,YX70

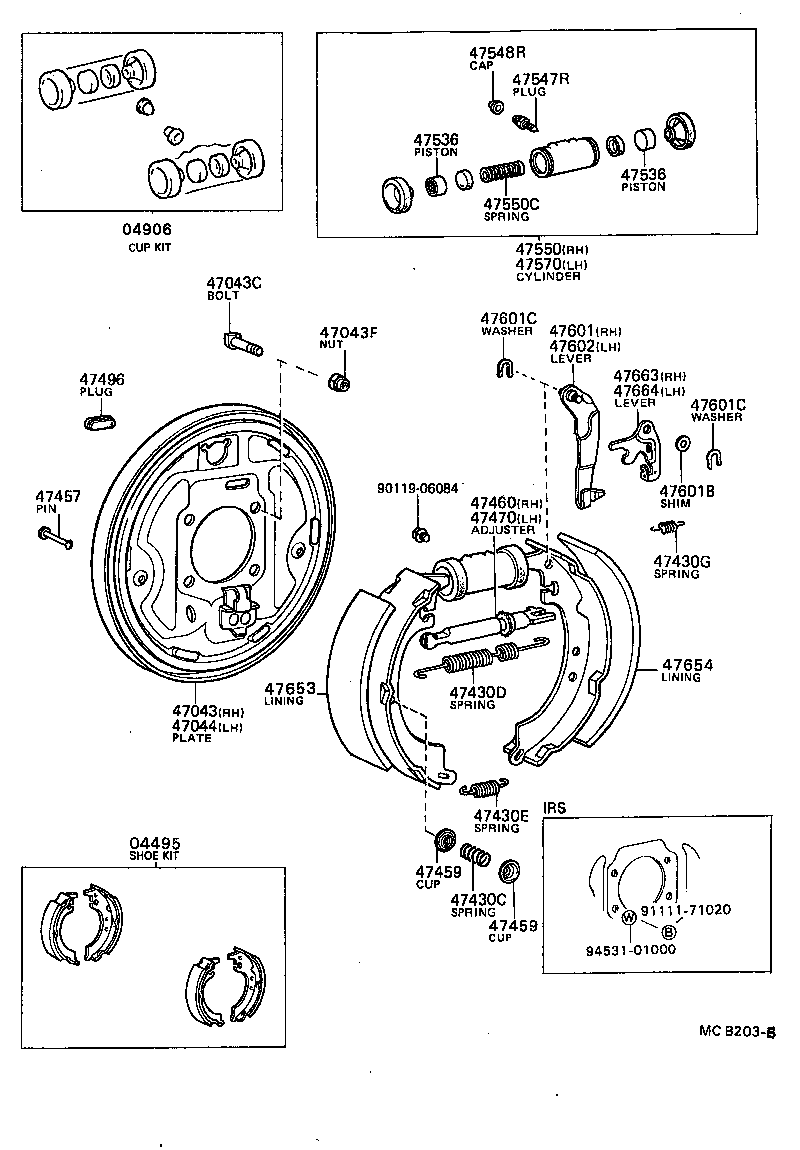

Click highlighted areas on diagram

diagram 04495 04906 47043 47043C 47043F 47044 47430C 47430D 47430E 47430G 47457 47459 47459 47460 47470 47496 47536 47536 47547R 47548R 47550 47550C 47570 47601 47601B 47601C 47601C 47602 47653 47654 47663 47664 9011906084 9111171020 9453101000
Part # Description Qty Price
04495 - SHOE KIT, REAR BRAKE
04495-20050

RX70,72

 1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-14020

LX70,RX70

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-22060

LX70,RX70,72,YX70..CBR,DSL

 1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-22011

LX70,MX72,RX70,72..EUR,GEN,ME

*10-1.25PX37-15

 8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
94181-11000

LX70,MX72,RX70,72,YX70

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-22060

LX70,RX70,72,YX70..CBR,DSL

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90501-18017

LX7#,MX72,RX7#,YX70

 4
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-23375

LX70,MX72,RX70,72,YX70

 2
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-23346

LX7#,MX72,RX7#,YX70

 2
47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90506-12011

LX7#,MX72,RX7#,YX70

 2
47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-20030

LX7#,MX72,RX7#,YX70

 4
47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

LX7#,MX72,RX7#,YX70

 8
47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

LX7#,MX72,RX7#,YX70

 8
47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47061-14040

LX7#,MX72,RX7#,YX70

 1
47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47062-14040

LX7#,MX72,RX7#,YX70

 1
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-20011

LX70,MX72,RX70,72,YX70

 2
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47051-22020

GX71,LX70,RX70..(GL,XL)..(GEN,ME)

 4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47051-22020

GX71,LX70,RX70..(GL,XL)..(GEN,ME)

 4
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-20010

GX71,LX7#,RX70..(GL,XL)..(CBR,DSL,EFI,TD)

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

LX7#,MX72,RX7#,YX70

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-22060

GX71,LX70,RX70..(GL,XL)..(GEN,ME)

 1
47550-19145

GX71,LX70,RX70..(GL,XL)..(GEN,ME)

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47509-20010

GX71,LX70,RX70..(GL,XL)..(GEN,ME)

 2
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-19145

GX71,LX70,RX70..(GL,XL)..(GEN,ME)

 1
47550-22060

GX71,LX70,RX70..(GL,XL)..(GEN,ME)

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601-14010

LX70,MX72,RX70,72,YX70

 1
47601B - SHIM, REAR PARKING BRAKE SHOE LEVER
90564-08151

LX7#,MX72,RX7#,YX70

T=0.6,T=0.6

 2
90564-08152

LX7#,MX72,RX7#,YX70

T=0.9,T=0.9

 2
90564-08172

LX7#,MX72,RX7#,YX70

T=0.2,T=0.2

 2
90564-08173

LX7#,MX72,RX7#,YX70

T=0.4,T=0.4

 2
90564-08150

LX7#,MX72,RX7#,YX70

T=0.3,T=0.3

 2
90564-08174

LX7#,MX72,RX7#,YX70

T=0.5,T=0.5

 2
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

LX7#,MX72,RX7#,YX70

T=1.2

 4
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

LX7#,MX72,RX7#,YX70

T=1.2

 4
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47602-14010

LX70,MX72,RX70,72,YX70

 1
47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47651-22020

LX70,RX70

 2
47651-22020

LX70,RX70,YX70..CBR,DSL

 2
47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
47651-22020

LX70,RX70

 2
47651-22020

LX70,RX70,YX70..CBR,DSL

 2
47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47643-20020

LX7#,MX72,RX7#,YX70

 1
47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
47644-20020

LX7#,MX72,RX7#,YX70

 1
Common parts
90119-06084
91111-71020
94531-01000
