RX70R-XEPES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8502)GX71,LX7#,MX72,RX70..GL,XL..CBR,DSL,EFI,TD ; (8502-8508)MX72 ; (8502-870

Click highlighted areas on diagram

diagram 04443 44608 44610 44610 44618 44629 44642 44663 44696 44730Q 44785 44785 9017908038 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-22480

RX70,72..RHD..GEN

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-12520

GX71,LX7#,MX72,RX70..(GL,XL)..(CBR,DSL,EFI,TD)

 1
44610 - BOOSTER ASSY, BRAKE
44610-22510

RX70,72..RHD..GEN

 1
44610 - BOOSTER ASSY, BRAKE
44610-22510

RX70,72..RHD..GEN

 1
44618 - SEAL, BOOSTER BODY
44621-28120

GX71,LX7#,MX72,RX70..(GL,XL)..(CBR,DSL,EFI,TD)

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

GX71,LX7#,MX72,RX70..(GL,XL)..(CBR,DSL,EFI,TD)

 1
44642 - PISTON, BRAKE BOOSTER
44642-16050

LX70,RX70

 1
44642-16050

RX70

 1
44663 - KEY, VALVE STOPPER
44635-28120

GX71,LX7#,MX72,RX70..(GL,XL)..(CBR,DSL,EFI,TD)

 1
44696 - GROMMET, CHECK VALVE
90480-24439

MX72;RX70,72..RHD

 1
44730Q - VALVE ASSY, VACUUM CHECK, NO.2
44730-22080

MX72;RX70,72..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX71,LX7#,MX7#,RX7#,YX70

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX71,LX7#,MX7#,RX7#,YX70

 1
Common parts
90179-08038

(8408-8705)RX70,71 ; (8705- )RX73

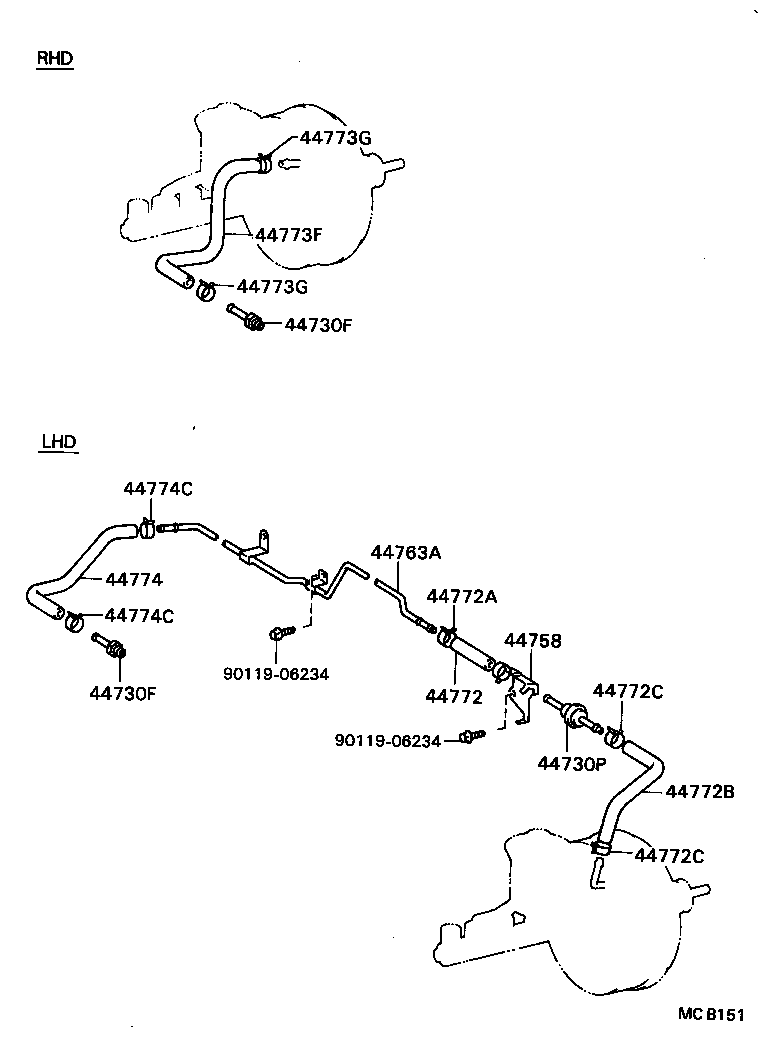

Click highlighted areas on diagram

diagram 44730F 44730F 44730P 44758 44763A 44772 44772A 44772B 44772C 44772C 44773F 44773G 44773G 44774 44774C 44774C 9011906234 9011906234
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

RX70,71

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

RX70,71

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-22400

RX70,72..RHD

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

GX71,RX70,72..RHD

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

GX71,RX70,72..RHD

 2
Common parts
90119-06234
