RX70R-XEPES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

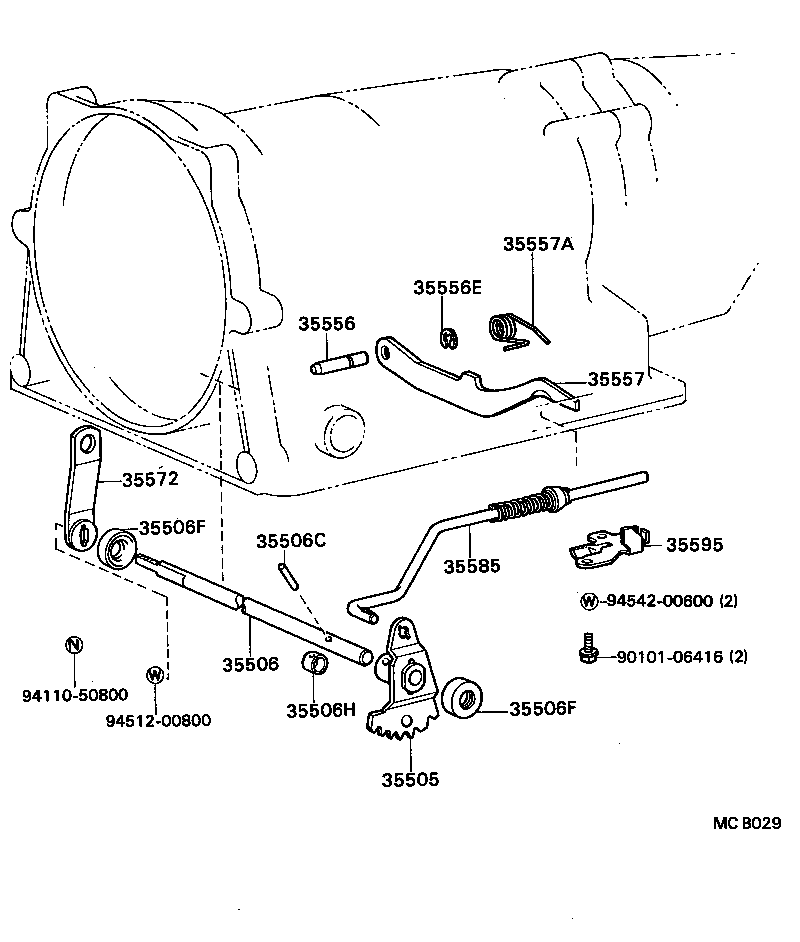

(8408-8608)4FC

Click highlighted areas on diagram

diagram 35505 35506 35506C 35506F 35506F 35506H 35556 35556E 35557 35557A 35572 35585 35595 9010106416 9411050800 9451200800 9454200600
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22040

GX71,LX7#,MX7#,RX70,72..4FC

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-40010

GX71,LX7#,MX7#,RX70,72..4FC

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

GX71,LX7#,MX7#,RX70,72..4FC

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11001

GX71,LX7#,MX7#,RX70,72..4FC

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11001

GX71,LX7#,MX7#,RX70,72..4FC

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

GX71,LX7#,MX7#,RX70,72..4FC

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-22010

GX71,LX7#,MX7#,RX70..4FC

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

GX71,LX7#,MX7#,RX70,72..4FC

 1
35557 - PAWL, PARKING LOCK
35557-35010

GX71,LX7#,MX7#,RX70,72..4FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-25001

GX71,LX7#,MX7#,RX70,72..4FC

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-22040

GX71,LX7#,MX7#,RX70,72..4FC

 1
35585 - ROD, PARKING LOCK
35501-22020

GX71,LX7#,MX7#,RX70,72..4FC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-40010

GX71,LX7#,MX7#,RX70,72..4FC

 1
Common parts
90101-06416
94110-50800
94512-00800
94542-00600

(8408- )RX70,72..4FC

Click highlighted areas on diagram

diagram 35520 35520 35520B 35520B 35523 35523 35525 9046106966 9046106966 9046814001 9161160610 9161160610 9161160816 9461110800
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-22090

RX70,72..RHD..4FC

 1
35520 - CABLE ASSY, THROTTLE
35520-22090

RX70,72..RHD..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09004

GX71,LX7#,MX7#,RX70,72..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09004

GX71,LX7#,MX7#,RX70,72..4FC

 1
35523 - CLAMP, THROTTLE CABLE
35523-14070

RX70..RHD..4FC..GL

SINGAPORE SPEC

 1
35523-22050

RX70..4FC..GEN

 1
35523 - CLAMP, THROTTLE CABLE
35523-14070

RX70..RHD..4FC..GL

SINGAPORE SPEC

 1
35523-22050

RX70..4FC..GEN

 1
35525 - BRACKET, THROTTLE CABLE
35525-22070

RX70,72..RHD..4FC

 1
Common parts
90461-06966
90468-14001
91611-60610
91611-60816
94611-10800

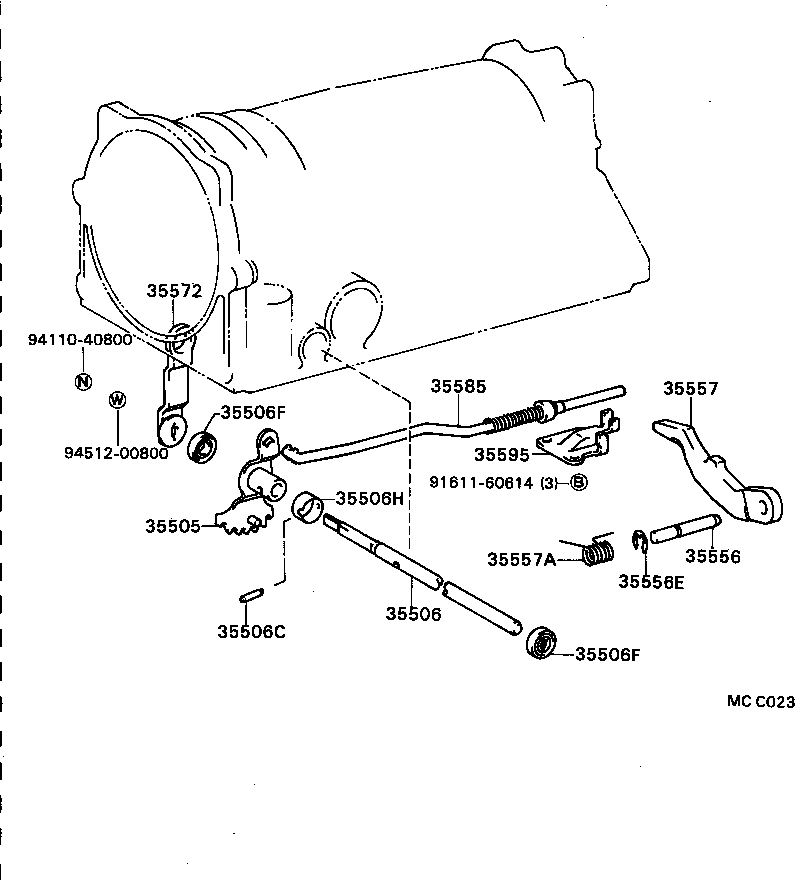

(8608- )4FC

Click highlighted areas on diagram

diagram 35505 35506 35506C 35506F 35506F 35506H 35556 35556E 35557 35557A 35572 35585 35595 9161160614 9411040800 9451200800
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22040

GX71,LX7#,MX7#,RX70,72..4FC

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-40010

GX71,LX7#,MX7#,RX70,72..4FC

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

GX71,LX7#,MX7#,RX70,72..4FC

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11001

GX71,LX7#,MX7#,RX70,72..4FC

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11001

GX71,LX7#,MX7#,RX70,72..4FC

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

GX71,LX7#,MX7#,RX70,72..4FC

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-22010

GX71,LX7#,MX7#,RX70..4FC

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

GX71,LX7#,MX7#,RX70,72..4FC

 1
35557 - PAWL, PARKING LOCK
35557-35010

GX71,LX7#,MX7#,RX70,72..4FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-25001

GX71,LX7#,MX7#,RX70,72..4FC

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-22040

GX71,LX7#,MX7#,RX70,72..4FC

 1
35585 - ROD, PARKING LOCK
35501-22020

GX71,LX7#,MX7#,RX70,72..4FC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-40010

GX71,LX7#,MX7#,RX70,72..4FC

 1
Common parts
91611-60614
94110-40800
94512-00800
