RX70R-XEPES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8608)4F

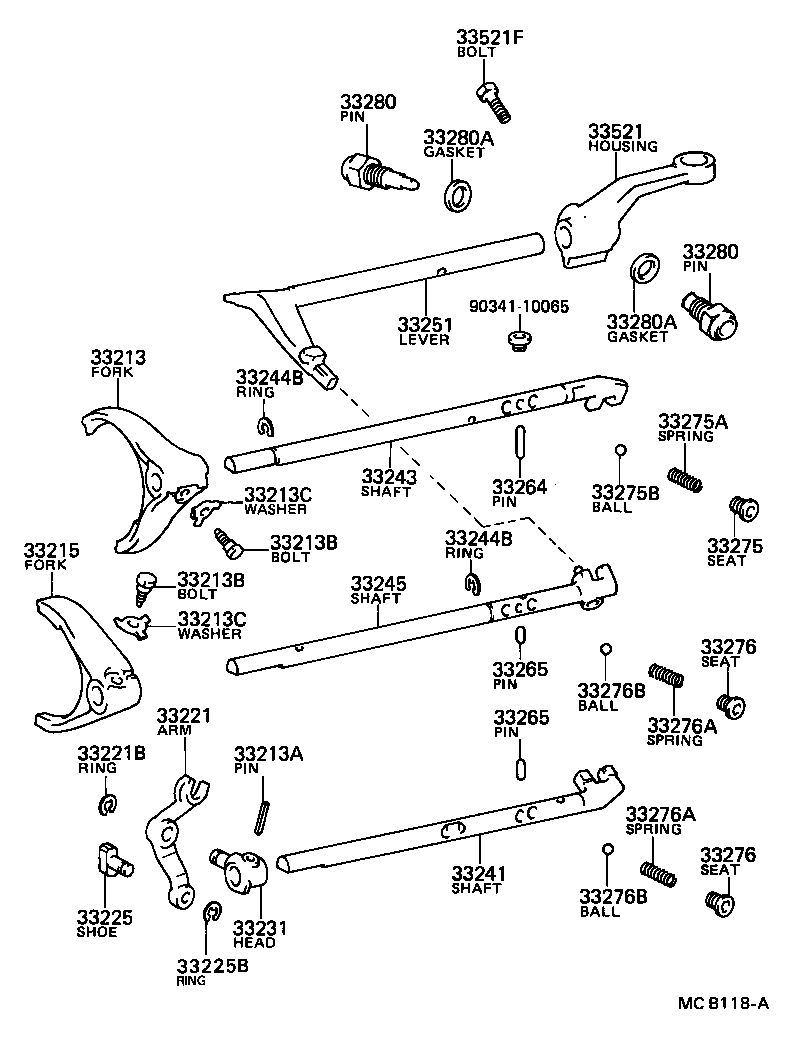

Click highlighted areas on diagram

diagram 33213 33213A 33213B 33213B 33213C 33213C 33215 33221 33221B 33225 33225B 33231 33241 33243 33244B 33244B 33245 33251 33264 33265 33265 33275 33275A 33275B 33276 33276 33276A 33276A 33276B 33276B 33280 33280 33280A 33280A 33521 33521F 9034110065
Part # Description Qty Price
33231 - HEAD, REVERSE SHIFT
33231-22020

RX70..4F

 1
33231-22021

RX70..4F

 1
33241 - SHAFT, REVERSE SHIFT FORK
33241-22010

RX70..4F

 1
33280 - PIN ASSY, REVERSE RESTRICT
90341-18009

RX70..4F

LH

 1
33280 - PIN ASSY, REVERSE RESTRICT
90341-18009

RX70..4F

LH

 1
33521 - HOUSING, SHIFT LEVER
33502-22190

RX70..4F

 1
Common parts
90341-10065
