RX70R-XEPES (1984)
Toyota Cressida
Production
Aug 1984
-
May 1987
Engine
21R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

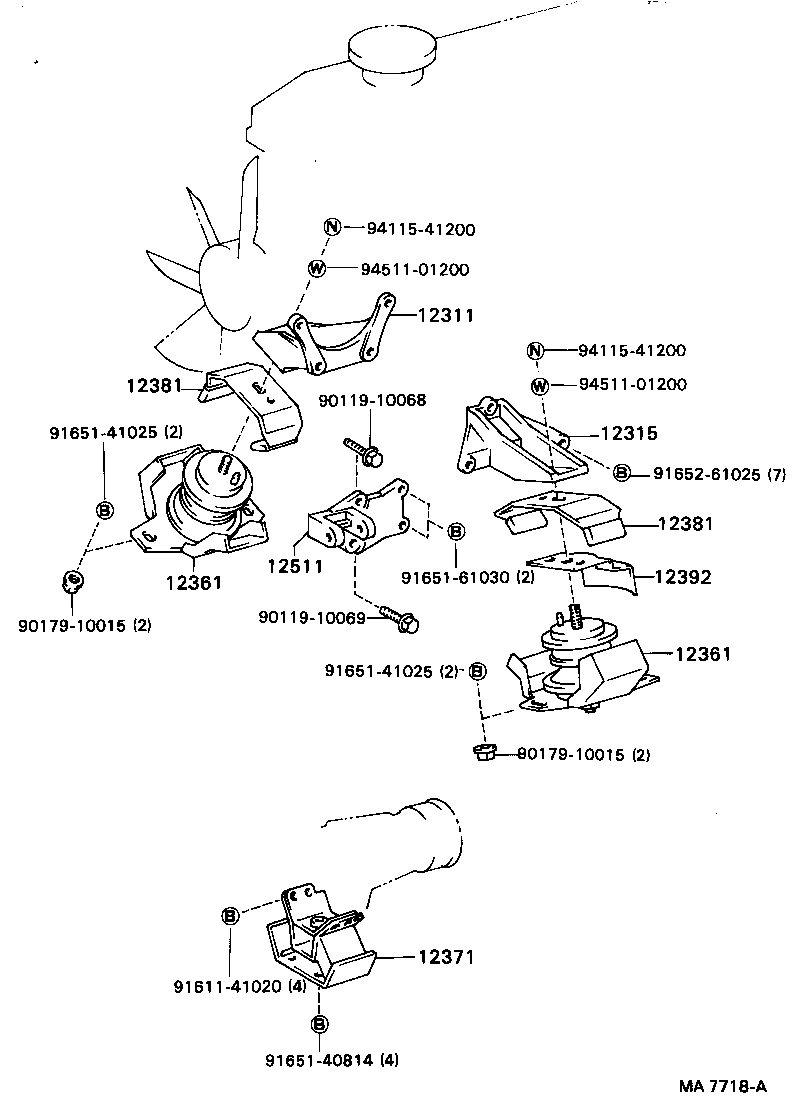

(8408-8607)21R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-37010 |
21R..RX70 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-37020 |
21R..RX70 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-37030 |
21R..RX70 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-37030 |
21R..RX70 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
21R,22R..RX7# |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-35020 |
21R..RX70 |
2 | ||
| 12381-37030 |
21R..RX70 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-35020 |
21R..RX70 |
2 | ||
| 12381-37030 |
21R..RX70 |
2 | ||
| 12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH | ||||
| 12391-37010 |
21R..RX70 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-35010 |
21R,22R..RX7# |
1 | ||
| Common parts | ||||
| 90119-10068 | ||||
| 90119-10069 | ||||
| 90179-10015 | ||||
| 91611-41020 | ||||
| 91651-40814 | ||||
| 91651-41025 | ||||
| 91651-61030 | ||||
| 91652-61025 | ||||
| 94115-41200 | ||||
| 94511-01200 | ||||

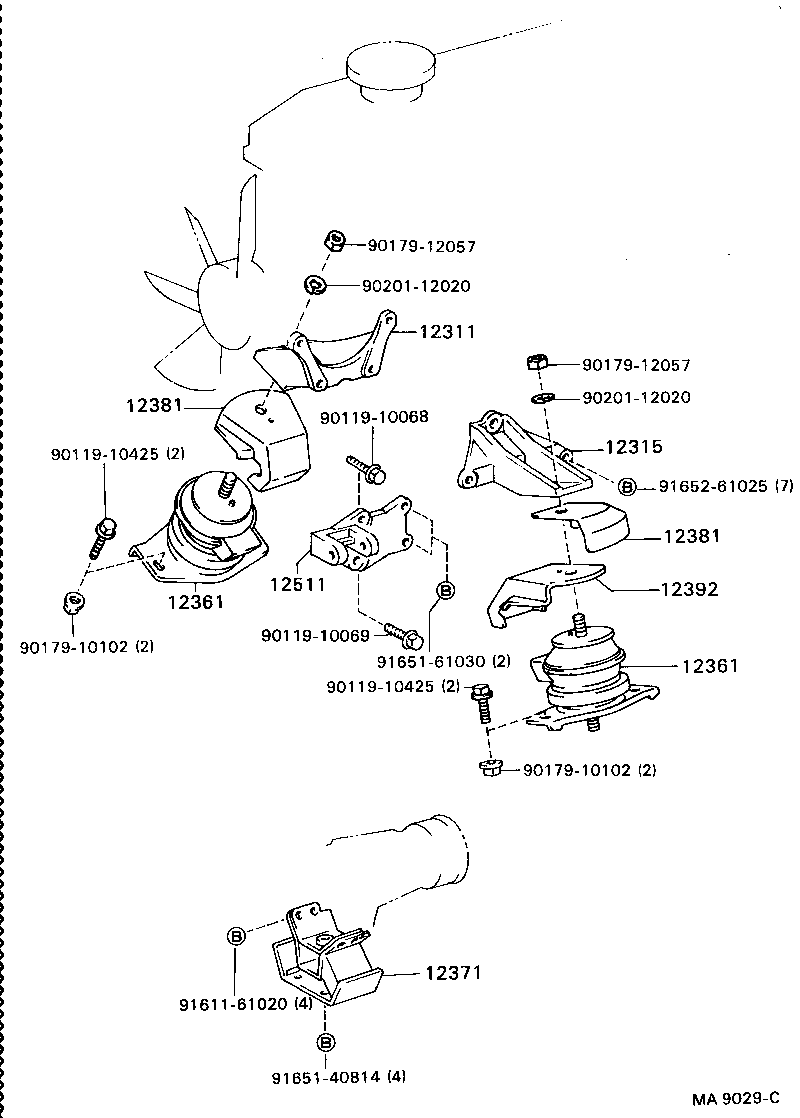

(8607- )21R,22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-37010 |
21R..RX70 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-37020 |
21R..RX70 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-37030 |
21R..RX70 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-37030 |
21R..RX70 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
21R,22R..RX7# |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-35020 |
21R..RX70 |
2 | ||
| 12381-37030 |
21R..RX70 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-35020 |
21R..RX70 |
2 | ||
| 12381-37030 |
21R..RX70 |
2 | ||
| 12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH | ||||
| 12391-37010 |
21R..RX70 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-35010 |
21R,22R..RX7# |
1 | ||
| Common parts | ||||
| 90119-10068 | ||||
| 90119-10069 | ||||
| 90119-10425 | ||||
| 90179-10102 | ||||
| 90179-12057 | ||||
| 90201-12020 | ||||
| 91611-61020 | ||||
| 91651-40814 | ||||
| 91651-61030 | ||||
| 91652-61025 | ||||
