RX70R-XEPES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8411)21R

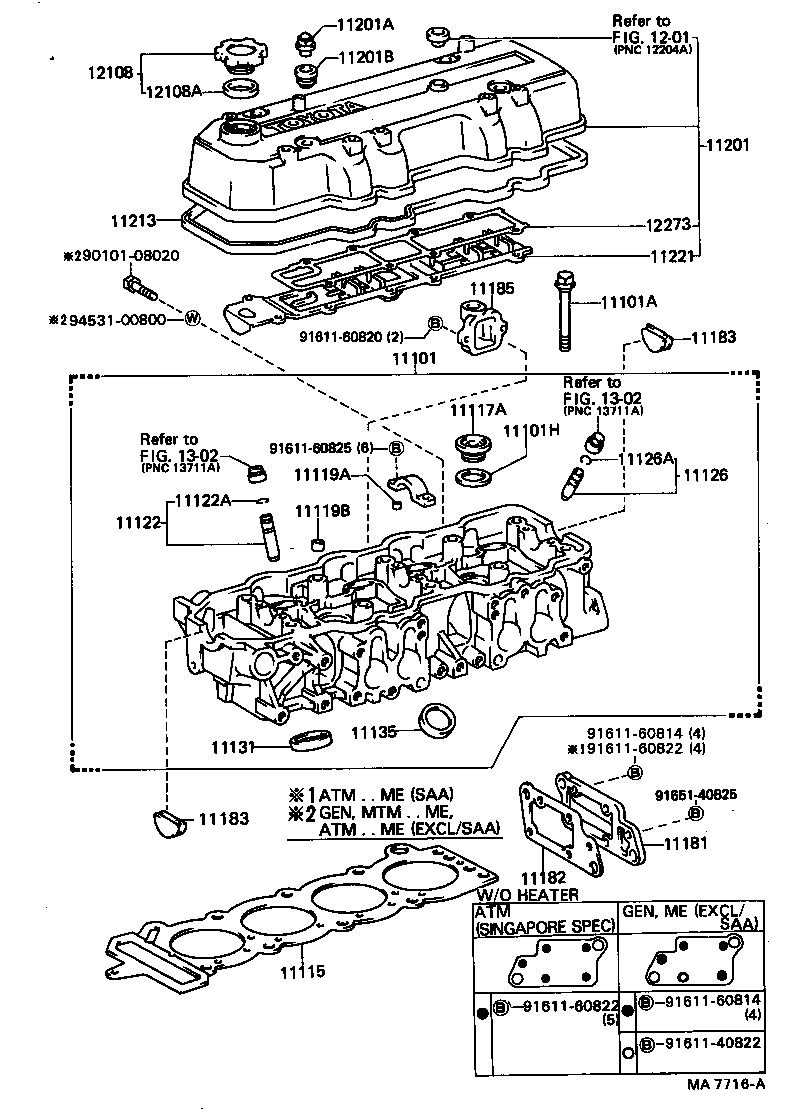

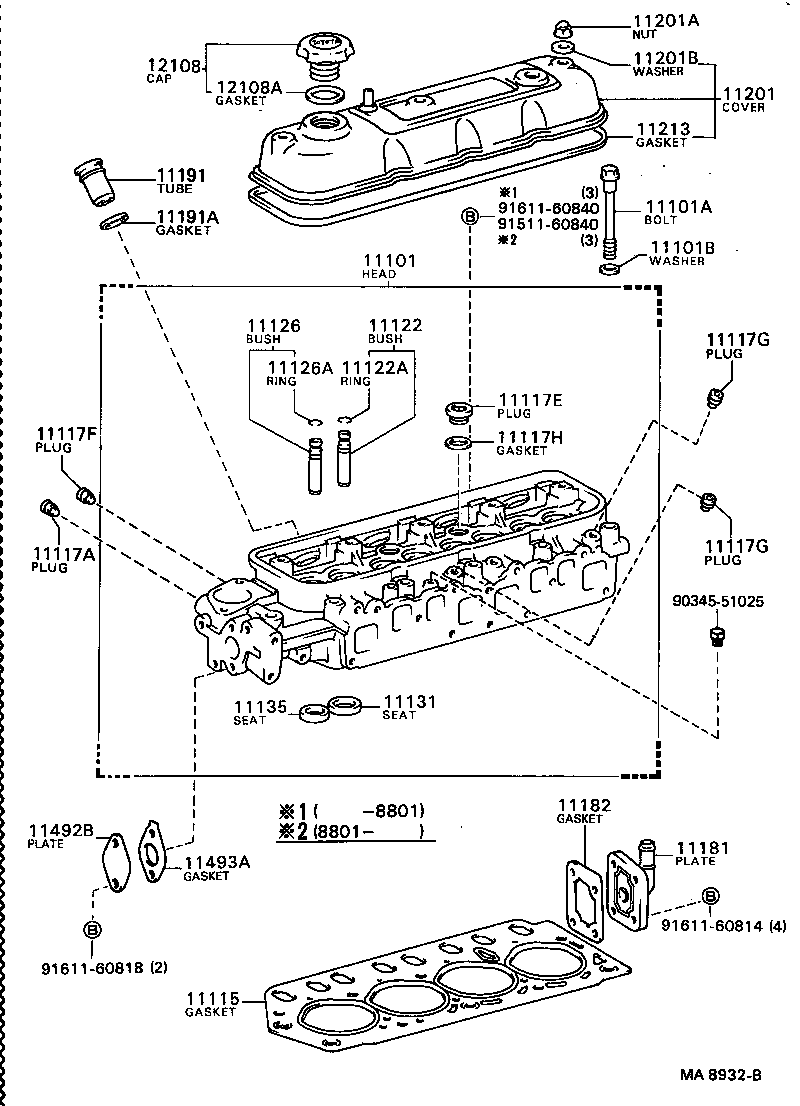

Click highlighted areas on diagram

diagram 11101 11101A 11101H 11115 11117A 11119A 11119B 11122 11122A 11126 11126A 11131 11135 11181 11182 11183 11183 11185 11201 11201A 11201B 11213 11221 1201 12108 12108A 12273 1302 1302 9010108020 9161140822 9161160814 9161160814 9161160820 9161160822 9161160822 9161160825 9165140825 9453100800
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-35060

21R,22R..RX7#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-12092

21R,22R..RX7#

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-33133

21R,22R..RX7#

 3
11115 - GASKET, CYLINDER HEAD
11115-37020

21R..RX70,71

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-32070

21R,22R..RX7#

OD=32

 1
11119A - PIN, STRAIGHT, NO.1
90253-11021

21R,22R..RX7#

L=8,OD=11,L=8,OD=11

 6
11119B - PIN, STRAIGHT, NO.2
90253-16020

21R,22R..RX7#

L=16,OD=15.5

 5
11122 - BUSH, INTAKE VALVE GUIDE
11122-35020

21R,22R..RX7#

STD,STD

 4
11123-35020

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

21R,22R..RX7#

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11122-38021

21R,22R..RX7#

STD,STD

 4
11123-38021

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

21R,22R..RX7#

 6
11131 - SEAT, INTAKE VALVE
11132-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11131-35010

21R,22R..RX7#

STD,STD

 4
11135 - SEAT, EXHAUST VALVE
11135-35010

21R,22R..RX7#

STD,STD

 4
11136-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11181 - PLATE, CYLINDER HEAD, REAR
11181-35040

21R..RX70..GEN

 1
11181-35050

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-35030

21R..RX70..GEN

 1
11182-35040

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11182-35040

21R..RX70,71;22R..RX72..ME

 1
11183 - PLUG, SEMICIRCULAR
11183-38010

21R,22R..RX7#

 2
11183 - PLUG, SEMICIRCULAR
11183-38010

21R,22R..RX7#

 2
11185 - COVER, CYLINDER HEAD SIDE
11184-35020

21R..RX70..GEN,ME

W/O HEATER

 1
11184-35010

21R,22R..RX7#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-35030

21R,22R..RX7#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

21R,22R..RX7#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08023

21R..RX70

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-35010

21R,22R..RX7#

 1
11221 - SEPARATOR, CYLINDER HEAD COVER, NO.1
11221-35020

21R..RX70

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

21R..RX70

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

21R,22R..RX7#

 1
12273 - GASKET, OIL SEPARATOR
12273-35020

21R..RX70

 1
Common parts
90101-08020
91611-40822
91611-60814
91611-60820
91611-60822
91611-60825
91651-40825
94531-00800
Linked diagrams
1201
1302

(8411- )21R,22R

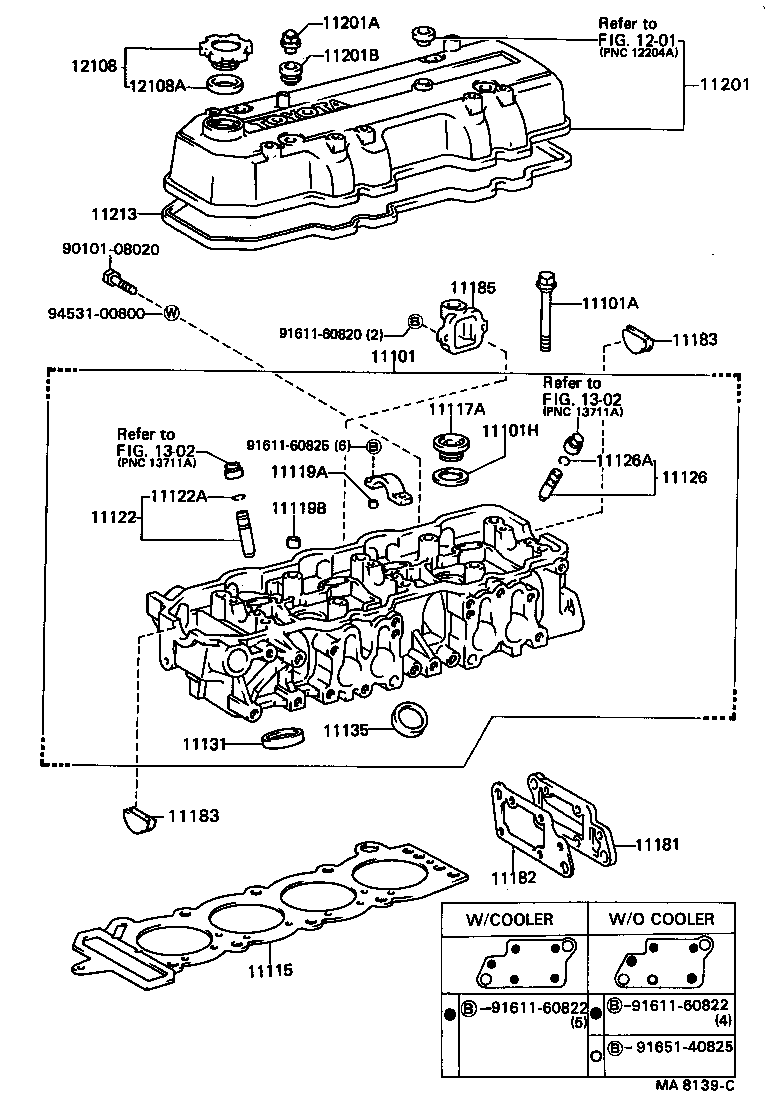

Click highlighted areas on diagram

diagram 11101 11101A 11101H 11115 11117A 11119A 11119B 11122 11122A 11126 11126A 11131 11135 11181 11182 11183 11183 11185 11201 11201A 11201B 11213 1201 12108 12108A 1302 1302 9010108020 9161160820 9161160822 9161160822 9161160825 9165140825 9453100800
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-35060

21R,22R..RX7#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-12092

21R,22R..RX7#

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-33133

21R,22R..RX7#

 3
11115 - GASKET, CYLINDER HEAD
11115-37020

21R..RX70,71

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-32070

21R,22R..RX7#

OD=32

 1
11119A - PIN, STRAIGHT, NO.1
90253-11021

21R,22R..RX7#

L=8,OD=11,L=8,OD=11

 6
11119B - PIN, STRAIGHT, NO.2
90253-16020

21R,22R..RX7#

L=16,OD=15.5

 5
11122 - BUSH, INTAKE VALVE GUIDE
11122-35020

21R,22R..RX7#

STD,STD

 4
11123-35020

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

21R,22R..RX7#

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11122-38021

21R,22R..RX7#

STD,STD

 4
11123-38021

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

21R,22R..RX7#

 6
11131 - SEAT, INTAKE VALVE
11132-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11131-35010

21R,22R..RX7#

STD,STD

 4
11135 - SEAT, EXHAUST VALVE
11135-35010

21R,22R..RX7#

STD,STD

 4
11136-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11181 - PLATE, CYLINDER HEAD, REAR
11181-35040

21R..RX70..GEN

 1
11181-35050

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-35030

21R..RX70..GEN

 1
11182-35040

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11182-35040

21R..RX70,71;22R..RX72..ME

 1
11183 - PLUG, SEMICIRCULAR
11183-38010

21R,22R..RX7#

 2
11183 - PLUG, SEMICIRCULAR
11183-38010

21R,22R..RX7#

 2
11185 - COVER, CYLINDER HEAD SIDE
11184-35020

21R..RX70..GEN,ME

W/O HEATER

 1
11184-35010

21R,22R..RX7#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-35030

21R,22R..RX7#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

21R,22R..RX7#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08023

21R..RX70

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-35010

21R,22R..RX7#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

21R..RX70

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

21R,22R..RX7#

 1
Common parts
90101-08020
91611-60820
91611-60822
91611-60825
91651-40825
94531-00800
Linked diagrams
1201
1302

(8502- )21R,22R

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11117A 11117E 11117F 11117G 11117G 11117H 11122 11122A 11126 11126A 11131 11135 11181 11182 11191 11191A 11201 11201A 11201B 11213 11492B 11493A 12108 12108A 9034551025 9151160840 9161160814 9161160818 9161160840
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-35060

21R,22R..RX7#

 1
11101-35060

21R,22R..RX7#

 1
11101-35060

21R,22R..RX7#

 1
11101-35060

21R,22R..RX7#

 1
11101-35060

21R,22R..RX7#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-12092

21R,22R..RX7#

 10
90105-12092

21R,22R..RX7#

 10
90105-12092

21R,22R..RX7#

 10
90105-12092

21R,22R..RX7#

 10
90105-12092

21R,22R..RX7#

 10
11115 - GASKET, CYLINDER HEAD
11115-37020

21R..RX70,71

 1
11115-37020

21R..RX70,71

 1
11115-37020

21R..RX70,71

 1
11115-37020

21R..RX70,71

 1
11115-37020

21R..RX70,71

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-32070

21R,22R..RX7#

OD=32

 1
90341-32070

21R,22R..RX7#

OD=32

 1
90341-32070

21R,22R..RX7#

OD=32

 1
90341-32070

21R,22R..RX7#

OD=32

 1
90341-32070

21R,22R..RX7#

OD=32

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-35020

21R,22R..RX7#

STD,STD

 4
11122-35020

21R,22R..RX7#

STD,STD

 4
11122-35020

21R,22R..RX7#

STD,STD

 4
11122-35020

21R,22R..RX7#

STD,STD

 4
11122-35020

21R,22R..RX7#

STD,STD

 4
11123-35020

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11123-35020

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11123-35020

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11123-35020

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11123-35020

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

21R,22R..RX7#

 6
90520-12049

21R,22R..RX7#

 6
90520-12049

21R,22R..RX7#

 6
90520-12049

21R,22R..RX7#

 6
90520-12049

21R,22R..RX7#

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11122-38021

21R,22R..RX7#

STD,STD

 4
11122-38021

21R,22R..RX7#

STD,STD

 4
11122-38021

21R,22R..RX7#

STD,STD

 4
11122-38021

21R,22R..RX7#

STD,STD

 4
11122-38021

21R,22R..RX7#

STD,STD

 4
11123-38021

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11123-38021

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11123-38021

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11123-38021

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11123-38021

21R,22R..RX7#

O/S 0.05,O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

21R,22R..RX7#

 6
90520-12049

21R,22R..RX7#

 6
90520-12049

21R,22R..RX7#

 6
90520-12049

21R,22R..RX7#

 6
90520-12049

21R,22R..RX7#

 6
11131 - SEAT, INTAKE VALVE
11132-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11132-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11132-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11132-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11132-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11131-35010

21R,22R..RX7#

STD,STD

 4
11131-35010

21R,22R..RX7#

STD,STD

 4
11131-35010

21R,22R..RX7#

STD,STD

 4
11131-35010

21R,22R..RX7#

STD,STD

 4
11131-35010

21R,22R..RX7#

STD,STD

 4
11135 - SEAT, EXHAUST VALVE
11135-35010

21R,22R..RX7#

STD,STD

 4
11135-35010

21R,22R..RX7#

STD,STD

 4
11135-35010

21R,22R..RX7#

STD,STD

 4
11135-35010

21R,22R..RX7#

STD,STD

 4
11135-35010

21R,22R..RX7#

STD,STD

 4
11136-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11136-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11136-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11136-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11136-35010

21R,22R..RX7#

O/S 0.03,O/S 0.03

 4
11181 - PLATE, CYLINDER HEAD, REAR
11181-35040

21R..RX70..GEN

 1
11181-35040

21R..RX70..GEN

 1
11181-35040

21R..RX70..GEN

 1
11181-35040

21R..RX70..GEN

 1
11181-35040

21R..RX70..GEN

 1
11181-35050

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11181-35050

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11181-35050

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11181-35050

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11181-35050

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-35030

21R..RX70..GEN

 1
11182-35030

21R..RX70..GEN

 1
11182-35030

21R..RX70..GEN

 1
11182-35030

21R..RX70..GEN

 1
11182-35030

21R..RX70..GEN

 1
11182-35040

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11182-35040

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11182-35040

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11182-35040

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11182-35040

21R..RX70..RHD..4FC..GL

SINGAPORE SPEC,W/O HEATER

 1
11182-35040

21R..RX70,71;22R..RX72..ME

 1
11182-35040

21R..RX70,71;22R..RX72..ME

 1
11182-35040

21R..RX70,71;22R..RX72..ME

 1
11182-35040

21R..RX70,71;22R..RX72..ME

 1
11182-35040

21R..RX70,71;22R..RX72..ME

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-35030

21R,22R..RX7#

 1
11201-35030

21R,22R..RX7#

 1
11201-35030

21R,22R..RX7#

 1
11201-35030

21R,22R..RX7#

 1
11201-35030

21R,22R..RX7#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

21R,22R..RX7#

 4
90176-08007

21R,22R..RX7#

 4
90176-08007

21R,22R..RX7#

 4
90176-08007

21R,22R..RX7#

 4
90176-08007

21R,22R..RX7#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08023

21R..RX70

 4
90210-08023

21R..RX70

 4
90210-08023

21R..RX70

 4
90210-08023

21R..RX70

 4
90210-08023

21R..RX70

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-35010

21R,22R..RX7#

 1
11213-35010

21R,22R..RX7#

 1
11213-35010

21R,22R..RX7#

 1
11213-35010

21R,22R..RX7#

 1
11213-35010

21R,22R..RX7#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

21R..RX70

 1
12180-70010

21R..RX70

 1
12180-70010

21R..RX70

 1
12180-70010

21R..RX70

 1
12180-70010

21R..RX70

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

21R,22R..RX7#

 1
90430-37140

21R,22R..RX7#

 1
90430-37140

21R,22R..RX7#

 1
90430-37140

21R,22R..RX7#

 1
90430-37140

21R,22R..RX7#

 1
Common parts
90345-51025
91511-60840
91611-60814
91611-60818
91611-60840
