RX70L-XTMESV (1985)
Toyota Cressida
Production
Apr 1985
-
Aug 1986
Engine
21R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8504- )HT

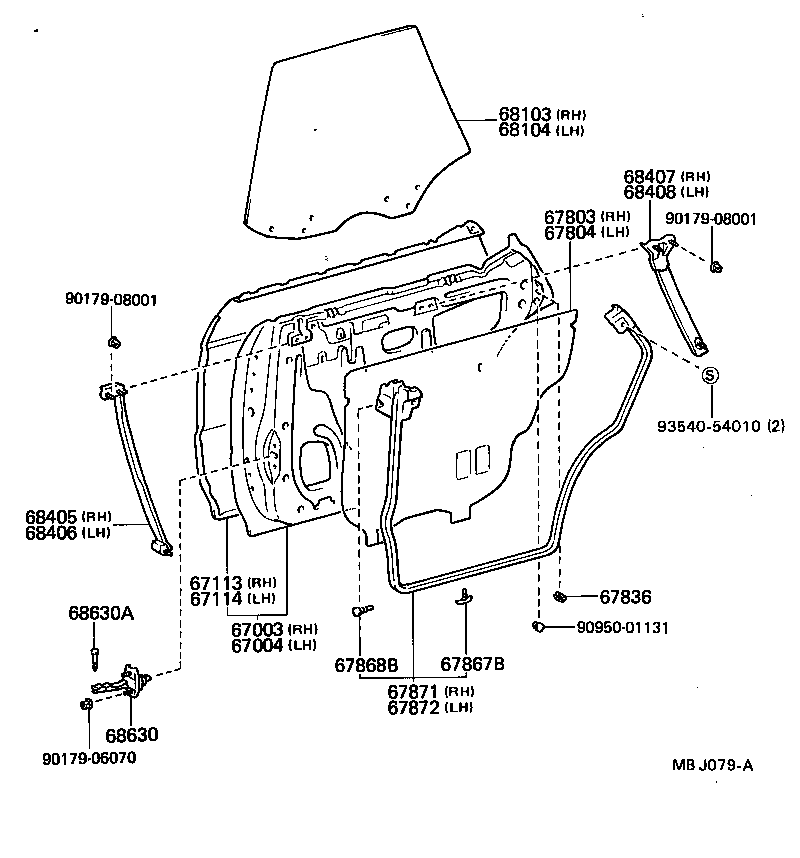

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-22340 |
GX71,MX73,RX70..HT SAUDI ARABIA SPEC |
1 | ||
| 67003-22350 |
GX71,MX73,RX70..HT EXCL/SAUDI ARABIA |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-22330 |
GX71,MX73,RX70..HT SAUDI ARABIA SPEC |
1 | ||
| 67004-22340 |
GX71,MX73,RX70..HT EXCL/SAUDI ARABIA |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-22140 |
GX71,MX73,RX70,72..HT |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
GX71,LX70,MX73,RX70..ARL,GEN,ME DUST PROOF |
2 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-22020 |
GX71,LX7#,MX7#,RX7#,YX70 RH |
1 | ||
| 67868-22010 |
GX71,LX7#,MX7#,RX7#,YX70 LH |
1 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67869-30020 |
GX71,LX7#,MX7#,RX7#,YX70 |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-22120 |
GX71,MX73,RX70..HT |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-22120 |
GX71,MX73,RX70..HT |
1 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-90A00 |
GX71,LX7#,MX7#,RX70,YX70 |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08001 | ||||
| 90950-01131 | ||||
| 93540-54010 | ||||
