RX70L-XEPES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )LX70,MX72,RX70,72,YX70

Click highlighted areas on diagram

diagram 04421 42185 42311 42311A 42403 42403A 42424 42425 42454 42611E
Part # Description Qty Price
04421 - BEARING KIT, REAR AXLE SHAFT
04421-30011

LX70,MX72,RX70,72,YX70

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-14020

LX70,MX72,RX70,72,YX70

 2
42311 - SHAFT, REAR AXLE
42311-22130

LX70,MX72,RX70,72

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

LX70,MX72,RX70,72,YX70

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-12060

LX70,MX72,RX70,YX70

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01117

LX70,RX70;GX71,LX71,MX72,YX70..(CBR,EFI,TD)..(EUR,ME,SA)

10G,10G

 2
90937-01195

LX70,RX70;GX71,LX71,MX72,YX70..(CBR,EFI,TD)..(EUR,ME,SA)

40G,40G

 2
90937-01118

LX70,RX70;GX71,LX71,MX72,YX70..(CBR,EFI,TD)..(EUR,ME,SA)

20G,20G

 2
90937-01196

LX70,RX70;GX71,LX71,MX72,YX70..(CBR,EFI,TD)..(EUR,ME,SA)

50G,50G

 2
90937-01119

LX70,RX70;GX71,LX71,MX72,YX70..(CBR,EFI,TD)..(EUR,ME,SA)

30G,30G

 2
90937-01197

LX70,RX70;GX71,LX71,MX72,YX70..(CBR,EFI,TD)..(EUR,ME,SA)

60G,60G

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-14020

LX70,MX72,RX70,72,YX70

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-14020

LX70,MX72,RX70,72,YX70

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-14010

LX70,MX72,RX70,72,YX70

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

GX71,LX7#,MX7#,RX7#,YX70

 8

(8408-8608)LX71..4FC ; (8408-8608)LX71..4FC ; (8408- )GX71,RX71..GEN,ME ; (8408-

Click highlighted areas on diagram

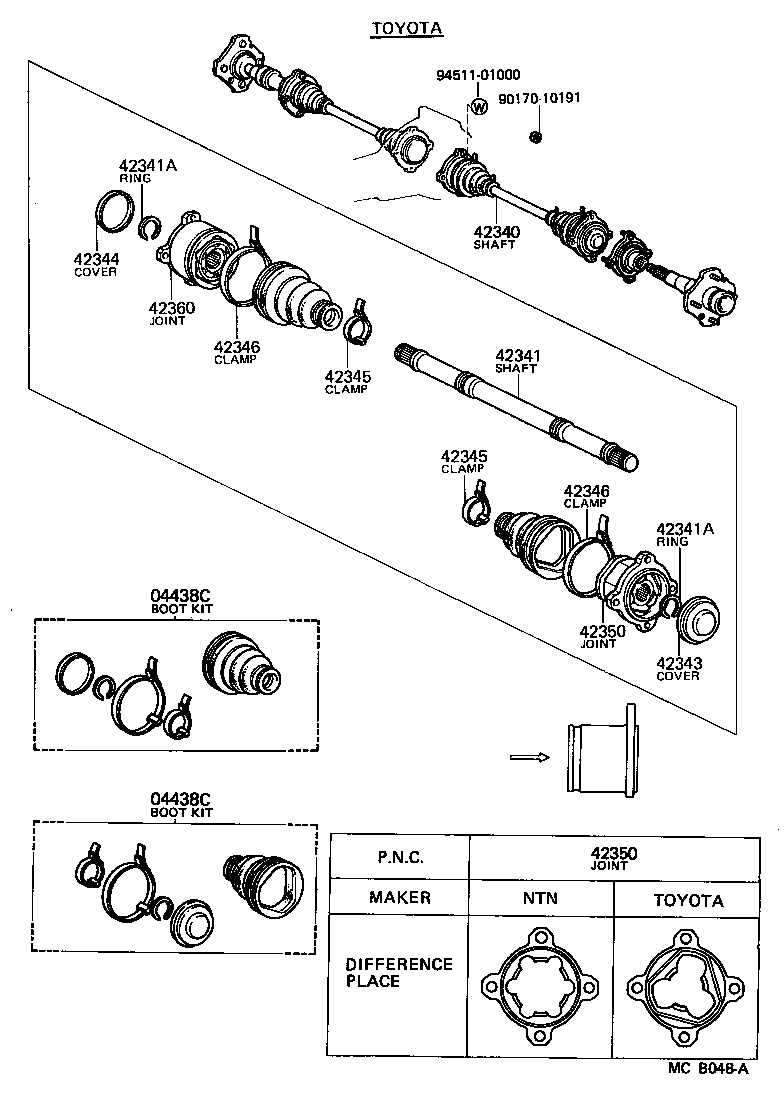

diagram 04438C 04438C 42340 42341 42341A 42341A 42343 42344 42345 42345 42346 42346 42350 42350 42360 9017010191 9451101000
Part # Description Qty Price
Common parts
90170-10191
94511-01000
