RX70L-XEMES (1984)
Toyota Cressida
(8408- )TWC..ARL ; (8408- )GX71,LX7#,MX72,RX7# ; (8408- )MX73..EFI..ARL,EU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

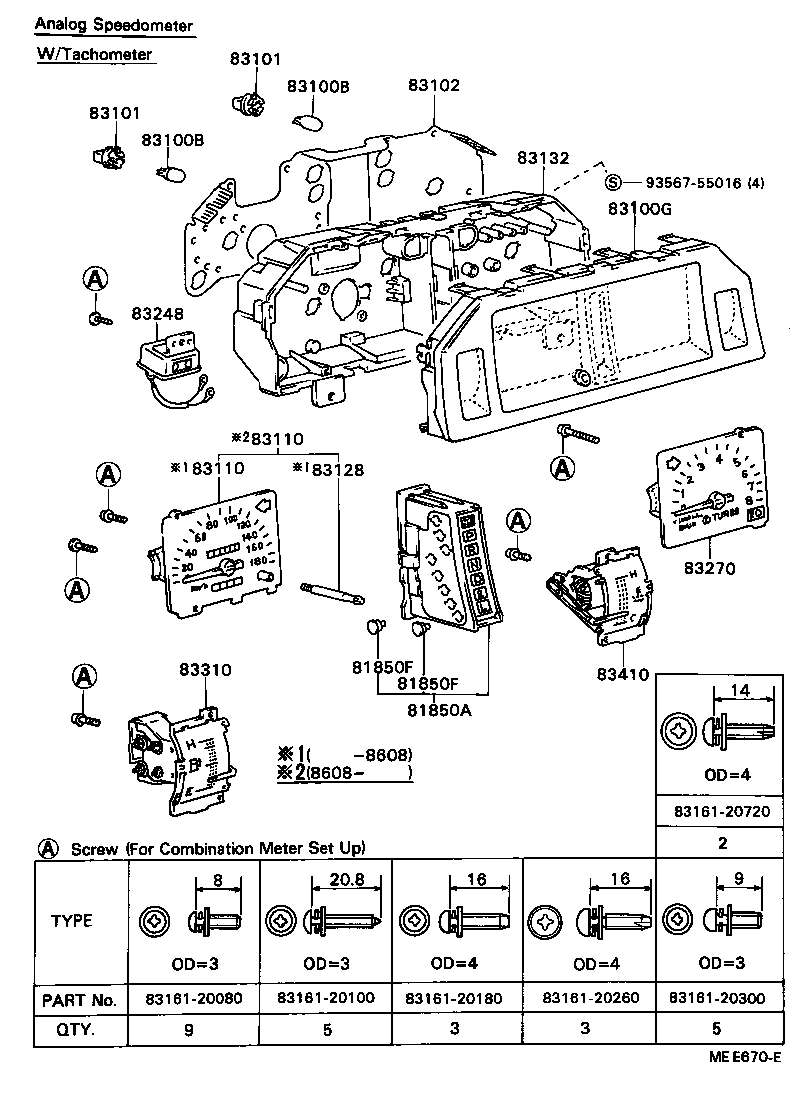

| 81850A - LAMP ASSY, INDICATOR | ||||
| 81850-22110 |
GX71,LX7#,RX70,YX70..MTM |
1 | ||
| 81850F - BULB, INDICATOR LAMP | ||||
| 84999-50150 |
GX71,LX7#,MX7#,RX7#,YX70 12V 1.4W,GREEN CAP |
1 | ||
| 84999-50140 |
GX71,LX7#,MX7#,RX7#,YX70 12V 1.4W |
7 | ||
| 81850F - BULB, INDICATOR LAMP | ||||
| 84999-50150 |
GX71,LX7#,MX7#,RX7#,YX70 12V 1.4W,GREEN CAP |
1 | ||
| 84999-50140 |
GX71,LX7#,MX7#,RX7#,YX70 12V 1.4W |
7 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GX71,LX7#,RX7#,YX70 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
GX71,LX70,RX7#,YX70 12V 3.4W |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GX71,LX7#,RX7#,YX70 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
GX71,LX70,RX7#,YX70 12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-2A160 |
GX71,RX70..LHD W/*AS,W/TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
GX71,LX7#,RX7#,YX70 GREEN |
4 | ||
| 83101-20040 |
GX71,LX7#,RX7#,YX70 |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
GX71,LX7#,RX7#,YX70 GREEN |
4 | ||
| 83101-20040 |
GX71,LX7#,RX7#,YX70 |
4 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-2A180 |
GX71,RX70..ME W/*TAC,EXCL/SAUDI ARABIA |
1 | ||
| 83247-2A180 |
GX71,LX7#,RX7#..LHD..(EUR,GEN) W/*TAC |
1 | ||
| 83247-22700 |
GX71,MX73,RX70..ME W/*TAC,SAUDI ARABIA SPEC |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2A280 |
RX70..ME SAUDI ARABIA SPEC |
1 | ||
| 83110-2A360 |
RX70..ME EXCL/SAUDI ARABIA |
1 | ||
| 83110-2A280 |
RX70..ME |
1 | ||
| 83110-2A370 |
RX70..LHD..GEN MILE & KM |
1 | ||
| 83110-2A360 |
RX70..LHD..GEN KM |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2A280 |
RX70..ME SAUDI ARABIA SPEC |
1 | ||
| 83110-2A360 |
RX70..ME EXCL/SAUDI ARABIA |
1 | ||
| 83110-2A280 |
RX70..ME |
1 | ||
| 83110-2A370 |
RX70..LHD..GEN MILE & KM |
1 | ||
| 83110-2A360 |
RX70..LHD..GEN KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-22020 |
GX71,LX7#,RX70,YX70 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2A140 |
GX71,LX7#,RX7#..LHD W/*AS,W/TACHOMETER |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-22080 |
GX71,MX73,RX70,72..ME W/*AS |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-22600 |
RX70..LHD |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-2A040 |
GX71,LX7#,RX70..LHD W/*TAC |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-2A060 |
GX71,MX73,RX70..ME |
1 | ||
| 83244-2A060 |
RX70..LHD..GL..GEN RADIATOR=DOUBLE ROW |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20180 | ||||
| 83161-20260 | ||||
| 83161-20300 | ||||
| 83161-20720 | ||||
| 93567-55016 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-22320 |
GX71,LX7#,RX70..LHD A TYPE |
1 | ||
| 83910-22330 |
GX71,LX7#,MX7#,RX70..LHD..(GL,GLX,XL) A TYPE,W/RADIO SWITCH |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22320 |
GX71,LX7#,RX70..LHD A TYPE |
1 | ||
| 83910-22330 |
GX71,LX7#,MX7#,RX70..LHD..(GL,GLX,XL) A TYPE,W/RADIO SWITCH |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
(8408-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

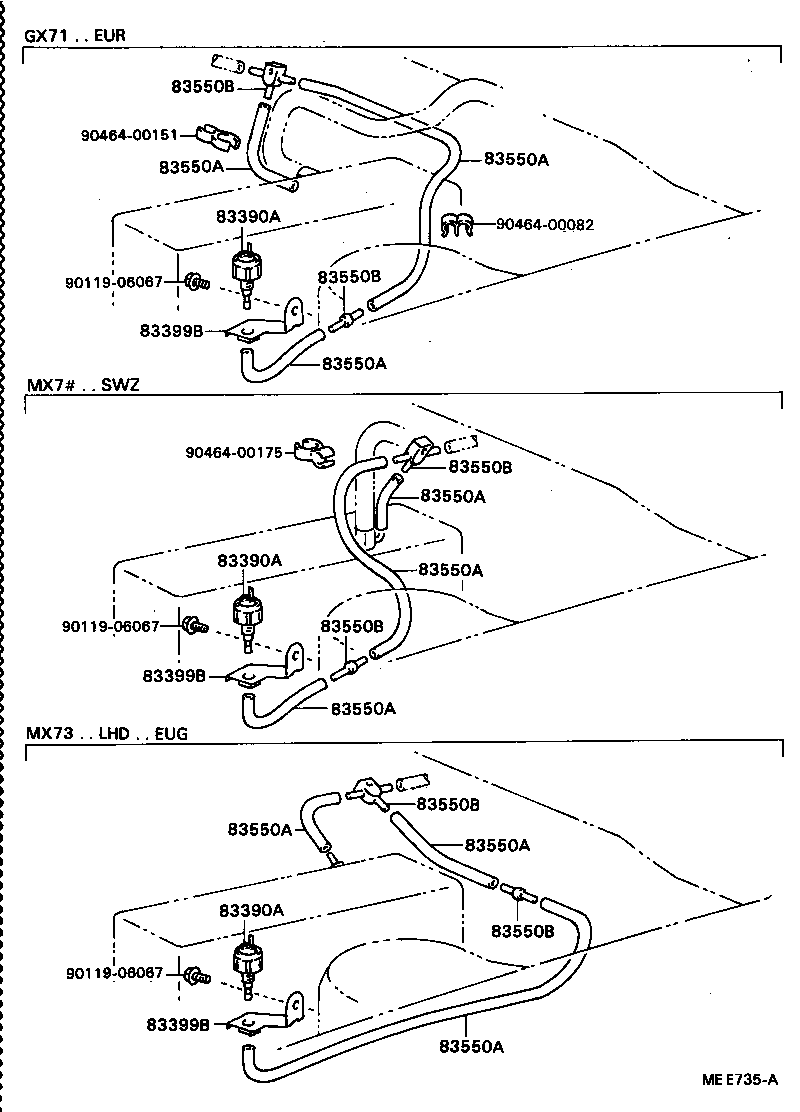

| Common parts | ||||
| 90119-06067 | ||||
| 90464-00082 | ||||
| 90464-00151 | ||||
| 90464-00175 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-22770 |
RX7#..LHD..MTM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-22770 |
RX7#..LHD..MTM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-22770 |
RX7#..LHD..MTM |
1 | ||
