RX70L-XEMES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

Click highlighted areas on diagram

diagram 48021 48029 48131 48132 48331 48471 48510 48511 48512 48520 48660 48670 48674A 48674A 48674D 48680 48680A 48680D 48684 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817D 48824 5305 9017010022 9017910016 9017918007 9020110074 9020110287 9161640825 9418210800 9418210800
Part # Description Qty Price
48021 - SHELL SUB-ASSY, W/STEERING KNUCKLE, RH
48021-22070

GX71,LX7#,MX7#,RX7#,YX70

 1
48029 - SHELL SUB-ASSY, W/STEERING KNUCKLE, LH
48029-22070

GX71,LX7#,MX7#,RX7#,YX70

 1
48131 - SPRING, FRONT COIL, RH
48131-2A210

GX71,RX70..SED..LHD..(GEN,ME)

 1
48131-2A220

GX71,RX70..SED..LHD..(GEN,ME)

HARSH ROAD PACKAGE

 1
48132 - SPRING, FRONT COIL, LH
48131-2A220

GX71,RX70..SED..LHD..(GEN,ME)

 1
48331 - BUMPER, FRONT SPRING, NO.1
48331-14020

GX71,LX7#,MX7#,RX7#,YX70

 2
48471 - SEAT, FRONT SPRING, UPPER
48044-24010

GX71,LX7#,MX7#,RX7#,YX70

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-22220

MX72;GX71,LX7#,MX73,RX70,YX70..HT,SED

 1
48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
48511-29275

MX72;GX71,LX7#,MX73,RX70,YX70..HT,SED

 1
48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
48511-29275

MX72;GX71,LX7#,MX73,RX70,YX70..HT,SED

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-22220

MX72;GX71,LX7#,MX73,RX70,YX70..HT,SED

 1
48660 - BAR ASSY, STRUT, RH
48660-22060

GX71,LX7#,MX7#,RX70,YX70

 1
48670 - BAR ASSY, STRUT, LH
48670-22060

GX71,LX7#,MX7#,RX70,YX70

 1
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02079

GX71,LX7#,MX7#,RX70,71,72,YX70

T=3.8(FR)

 2
90948-02080

GX71,LX7#,MX7#,RX70,71,72,YX70

T=3.2(RR)

 2
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02079

GX71,LX7#,MX7#,RX70,71,72,YX70

T=3.8(FR)

 2
90948-02080

GX71,LX7#,MX7#,RX70,71,72,YX70

T=3.2(RR)

 2
48674D - SPACER(FOR STRUT BAR CUSHION)
90560-18006

GX71,LX7#,MX7#,RX70,71,72,YX70

 2
48680 - SUPPORT ASSY, FRONT SUSPENSION
48609-22070

GX71,LX7#,MX7#,RX7#,YX70

 2
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94182-11400

GX71,LX7#,MX7#,RX7#,YX70

 2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049

GX71,LX7#,MX7#,RX7#,YX70

 2
48684 - COVER, BEARING DUST
48684-14020

GX71,LX7#,MX7#,RX7#,YX70

 2
48811 - BAR, STABILIZER, FRONT
48811-22260

GX71,RX70..SED..(GL,GLX)..(CBR,EFI)

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-22060

GX71,RX70..SED..(GL,GLX)..(CBR,EFI)

 2
48817 - CUSHION, FRONT STABILIZER
48817-22020

GX71,LX7#,MX7#,RX7#,YX70

 8
48817 - CUSHION, FRONT STABILIZER
48817-22020

GX71,LX7#,MX7#,RX7#,YX70

 8
48817 - CUSHION, FRONT STABILIZER
48817-22020

GX71,LX7#,MX7#,RX7#,YX70

 8
48817 - CUSHION, FRONT STABILIZER
48817-22020

GX71,LX7#,MX7#,RX7#,YX70

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

GX71,LX7#,MX7#,RX7#,YX70

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

GX71,LX7#,MX7#,RX7#,YX70

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

GX71,LX7#,MX7#,RX7#,YX70

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

GX71,LX7#,MX7#,RX7#,YX70

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02015

GX71,LX7#,MX7#,RX7#,YX70

 2
48817D - BOLT(FOR FRONT STABILIZER)
48819-24010

GX71,LX7#,MX7#,RX7#,YX70

 2
48824 - BRACKET, STABILIZER, FRONT
48824-22060

GX71,LX7#,MX7#,RX7#,YX70

 2
Common parts
90170-10022
90179-10016
90179-18007
90201-10074
90201-10287
91616-40825
94182-10800
Linked diagrams
5305

(8502- )

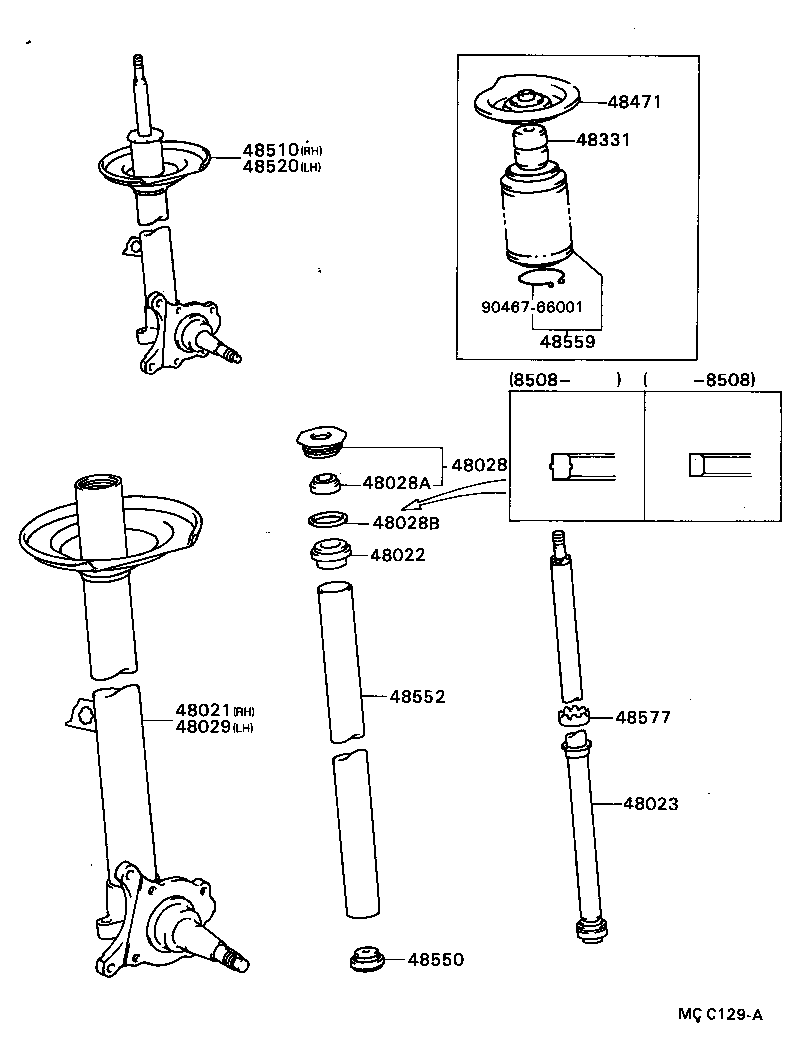

Click highlighted areas on diagram

diagram 48021 48022 48023 48028 48028A 48028B 48029 48331 48471 48510 48520 48550 48552 48559 48577 9046766001
Part # Description Qty Price
48021 - SHELL SUB-ASSY, W/STEERING KNUCKLE, RH
48021-22070

GX71,LX7#,MX7#,RX7#,YX70

 1
48022 - GUIDE SUB-ASSY, SHOCK ABSORBER ROD
48022-14010

LX70,RX70..LHD..MTM..GEN

TAXI SPEC

 2
48028A - SEAL, OIL(FOR SHOCK ABSORBER RING NUT)
90316-22005

LX70,RX70..LHD..MTM..GEN

TAXI SPEC

 2
48028B - GASKET(FOR SHOCK ABSORBER RING NUT)
90430-43206

LX70,RX70..LHD..MTM..GEN

TAXI SPEC

 2
48029 - SHELL SUB-ASSY, W/STEERING KNUCKLE, LH
48029-22070

GX71,LX7#,MX7#,RX7#,YX70

 1
48331 - BUMPER, FRONT SPRING, NO.1
48331-14020

GX71,LX7#,MX7#,RX7#,YX70

 2
48471 - SEAT, FRONT SPRING, UPPER
48044-24010

GX71,LX7#,MX7#,RX7#,YX70

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-22220

MX72;GX71,LX7#,MX73,RX70,YX70..HT,SED

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-22220

MX72;GX71,LX7#,MX73,RX70,YX70..HT,SED

 1
48550 - VALVE ASSY, SHOCK ABSORBER BASE
48550-22180

LX70,RX70..LHD..MTM..GEN

TAXI SPEC

 2
Common parts
90467-66001
