RX70L-XEMES (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )MTM

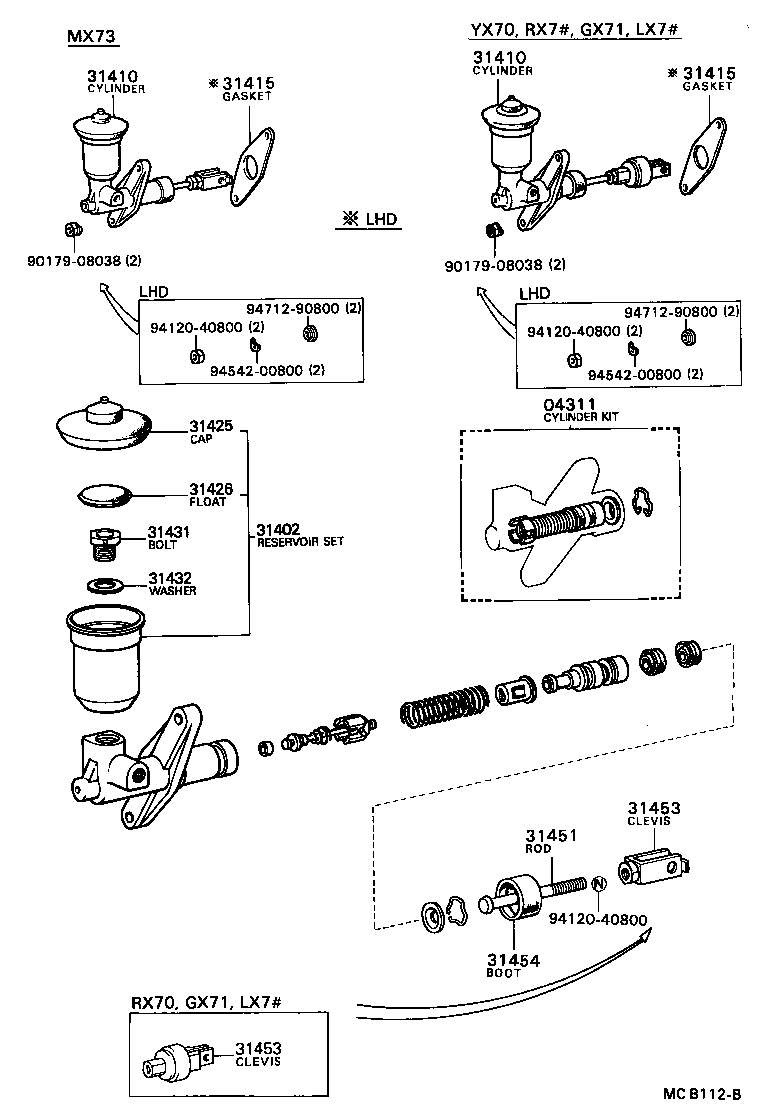

Click highlighted areas on diagram

diagram 04311 31402 31410 31410 31415 31415 31425 31426 31431 31432 31451 31453 31453 31454 9017908038 9017908038 9412040800 9412040800 9412040800 9454200800 9454200800 9471290800 9471290800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-30080

GX71,LX7#,RX7#,YX70..MTM

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-30030

GX71,LX7#,RX7#,YX70..MTM

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-24012

GX71,LX7#,RX70..MTM

 1
31410-22140

GX71,LX7#,RX7#..MTM

 1
31410-22141

GX71,LX70,RX7#..5F

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-24012

GX71,LX7#,RX70..MTM

 1
31410-22140

GX71,LX7#,RX7#..MTM

 1
31410-22141

GX71,LX70,RX7#..5F

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-30030

GX71,LX7#,MX73,RX7#..LHD..MTM

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-30030

GX71,LX7#,MX73,RX7#..LHD..MTM

 1
31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET
47231-30010

GX71,LX7#,RX7#,YX70..MTM

 1
31432 - WASHER, CLUTCH RESERVOIR SET BOLT
47232-30010

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-30060

GX71,LX7#,RX7#,YX70..MTM

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-30041

GX71,LX7#,RX70..MTM

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-30041

GX71,LX7#,RX70..MTM

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-24010

GX71,LX7#,RX7#,YX70..MTM

 1
Common parts
90179-08038
94120-40800
94542-00800
94712-90800
