RX62RG-XWMDSN (1981)

Toyota Cressida

Production Jul 1981 - Aug 1982
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)WG

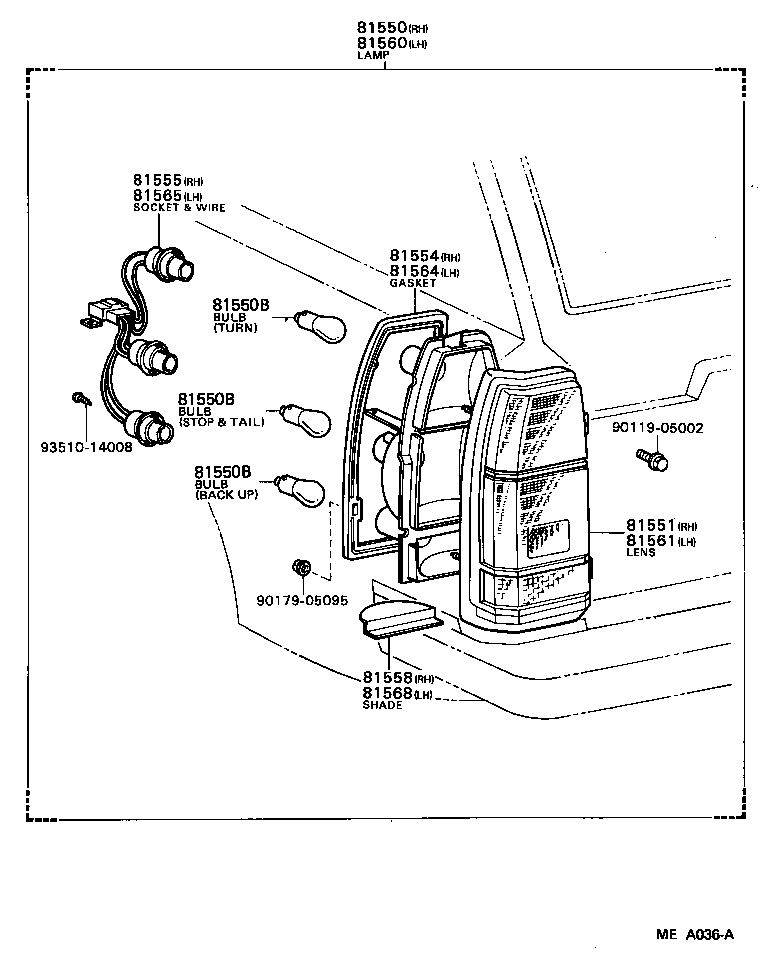

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 81558 81560 81561 81564 81565 81568 9011905002 9017905095 9351014008
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80095

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

LX60,MX62,RX6#..WG

12V 21W,12V 21W(TURN OR BACK UP)

 4
99132-21210

GX6#,LX60,MX6#,RX6#,TX62

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

LX60,MX62,RX6#..WG

12V 21W,12V 21W(TURN OR BACK UP)

 4
99132-21210

GX6#,LX60,MX6#,RX6#,TX62

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

LX60,MX62,RX6#..WG

12V 21W,12V 21W(TURN OR BACK UP)

 4
99132-21210

GX6#,LX60,MX6#,RX6#,TX62

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-91602

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-91601

LX60,MX62,RX6#..WG

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-91602

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81558-91601

LX60,MX62,RX6#..WG

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80098

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-91602

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-91601

LX60,MX62,RX6#..WG

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-91602

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81568-91601

LX60,MX62,RX6#..WG

 1
Common parts
90119-05002
90179-05095
93510-14008
