RX62RG-XWMDSN (1981)
Toyota Cressida
Production
Jul 1981
-
Aug 1982
Engine
18R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8204)L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-36020 |
18R..RX62 |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-42000 |
18R..RX62 |
7 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-34010 |
18R..RX62 O/S 0.05 |
4 | ||
| 11122-34010 |
18R..RX62 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-34010 |
18R..RX62 STD |
4 | ||
| 11123-34010 |
18R..RX62 O/S 0.05 |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-33010 |
18R..RX62 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-33010 |
18R..RX62 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13010 |
21R#,18R..RX6# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
21R#,18R..RX6# |
1 | ||
| Linked diagrams | ||||
| 1701 | ||||
| 1709 | ||||
| 2201 | ||||

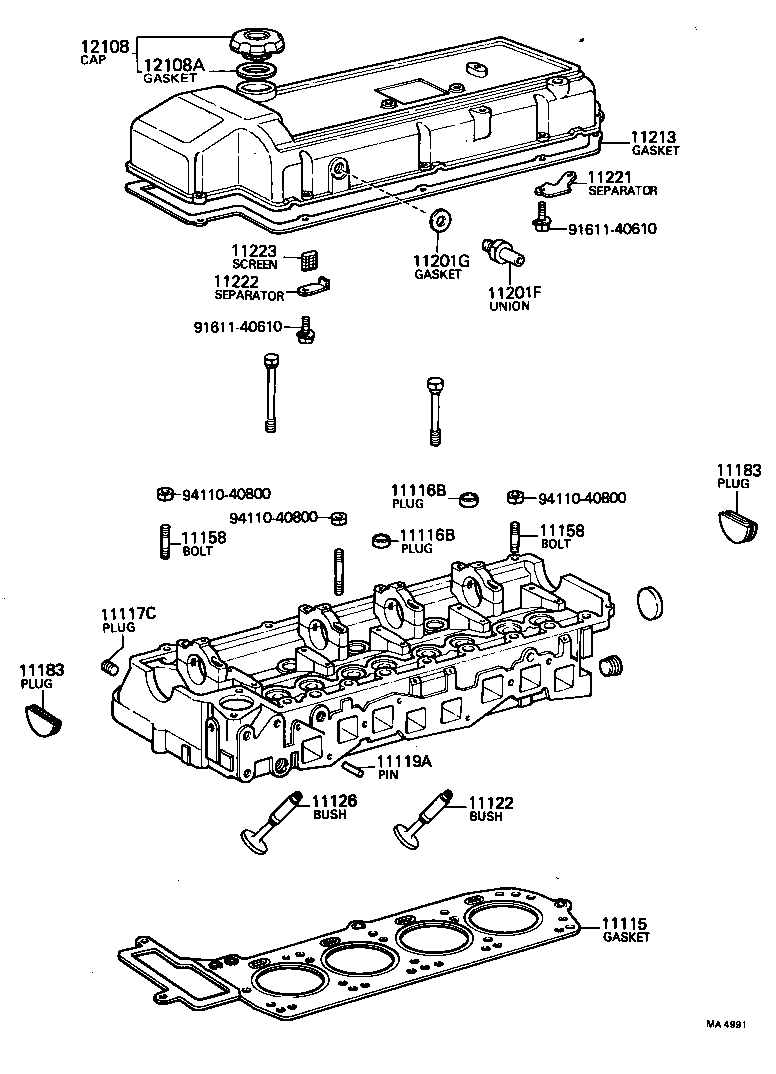

(8107-8208)18R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-36020 |
18R..RX62 |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-42000 |
18R..RX62 |
7 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-42000 |
18R..RX62 |
7 | ||
| 11117C - PLUG, W/HEAD TAPER SCREW, NO.3 | ||||
| 90344-51014 |
18R..RX62 |
2 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-08054 |
18R..RX62 L=23,OD=8 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-34010 |
18R..RX62 O/S 0.05 |
4 | ||
| 11122-34010 |
18R..RX62 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-34010 |
18R..RX62 STD |
4 | ||
| 11123-34010 |
18R..RX62 O/S 0.05 |
4 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-08084 |
18R..RX62 L=32,S=7&14 |
9 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-08084 |
18R..RX62 L=32,S=7&14 |
9 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-33010 |
18R..RX62 |
2 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-33010 |
18R..RX62 |
2 | ||
| 11201F - UNION(FOR POSITIVE CRANKCASE VENTILATION) | ||||
| 90404-16108 |
18R..RX62 |
1 | ||
| 11201G - GASKET(FOR POSITIVE CRANKCASE VENTILATION) | ||||
| 90430-16175 |
18R..RX62 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-33010 |
18R..RX62 |
1 | ||
| 11221 - SEPARATOR, CYLINDER HEAD COVER, NO.1 | ||||
| 11221-34010 |
18R..RX62 |
1 | ||
| 11222 - SEPARATOR, CYLINDER HEAD COVER, NO.2 | ||||
| 11222-34010 |
18R..RX62 |
1 | ||
| 11223 - SCREEN,CYLINDER HEAD COVER | ||||
| 11223-33010 |
18R..RX62 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13010 |
21R#,18R..RX6# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
21R#,18R..RX6# |
1 | ||
| Common parts | ||||
| 91611-40610 | ||||
| 94110-40800 | ||||
(8204- )L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-36020 |
18R..RX62 |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-42000 |
18R..RX62 |
7 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-34010 |
18R..RX62 O/S 0.05 |
4 | ||
| 11122-34010 |
18R..RX62 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-34010 |
18R..RX62 STD |
4 | ||
| 11123-34010 |
18R..RX62 O/S 0.05 |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-33010 |
18R..RX62 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-33010 |
18R..RX62 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13010 |
21R#,18R..RX6# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
21R#,18R..RX6# |
1 | ||
| Linked diagrams | ||||
| 1709 | ||||
| 2201 | ||||
