RX62RG-XWHDSN (1981)

Toyota Cressida

Production Jul 1981 - Aug 1982
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8404)WG

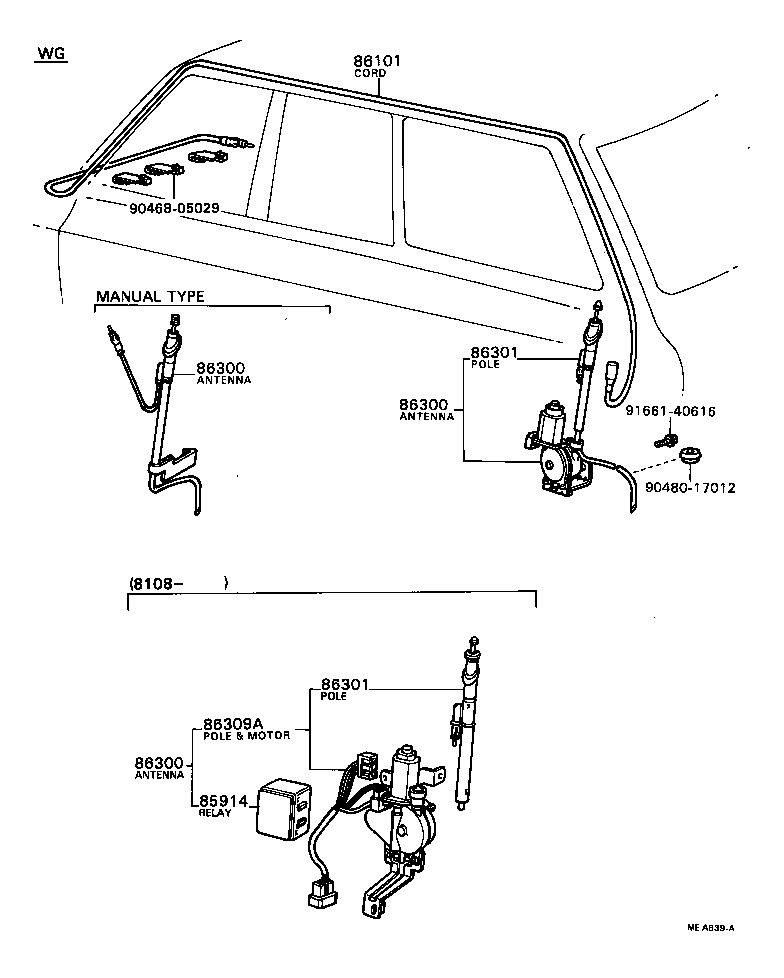

Click highlighted areas on diagram

diagram 85914 86101 86300 86300 86300 86301 86301 86309A 9046805029 9048017012 9166140616
Part # Description Qty Price
85914 - RELAY, MOTOR ANTENNA CONTROL
85914-14010

RX60..RHD;RX60..WG..LHD;LX60,MX62,RX62;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME)

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-91604

LX60,MX62,RX6#..WG

MOTOR TYPE

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-91604

LX60,MX62,RX6#..WG

MOTOR TYPE

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-91604

LX60,MX62,RX6#..WG

MOTOR TYPE

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-91604

LX60,MX62,RX6#..WG

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-91604

LX60,MX62,RX6#..WG

 1
86309A - POLE SUB-ASSY, MOTOR ANTENNA
86309-91601

LX60,MX62,RX6#..WG

 1
Common parts
90468-05029
90480-17012
91661-40616
