RX62RG-XWHDSN (1981)

Toyota Cressida

Production Jul 1981 - Aug 1982
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)MX62,RX6#..RHD

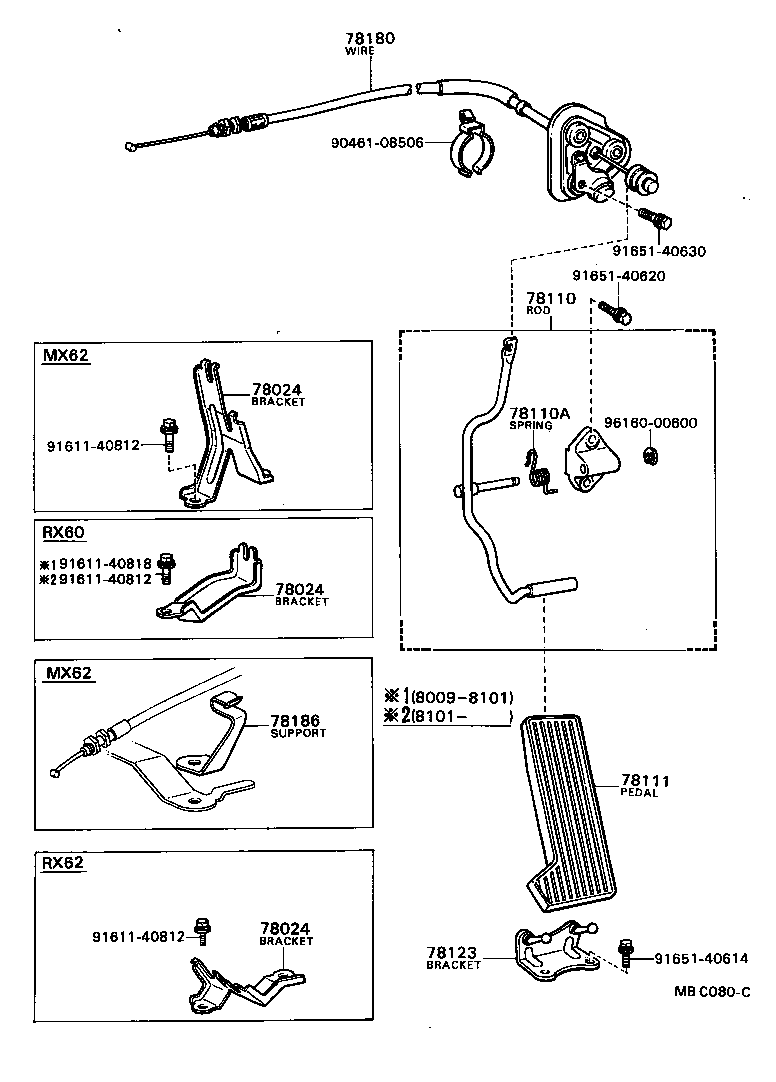

Click highlighted areas on diagram

diagram 78024 78024 78024 78110 78110A 78111 78123 78180 78186 9046108506 9161140812 9161140812 9161140812 9161140818 9165140614 9165140620 9165140630 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-22060

RX62

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-22060

RX62

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-22060

RX62

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18006

LX60,MX62,RX6#..RHD

 1
78111 - PEDAL, ACCELERATOR
78111-30080

LX60,MX62,RX6#,TX62..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-22211

RX62

 1
Common parts
90461-08506
91611-40812
91611-40818
91651-40614
91651-40620
91651-40630
96160-00600
