RX62RG-XWHDSN (1981)
Toyota Cressida
Production
Jul 1981
-
Aug 1982
Engine
18R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)WG

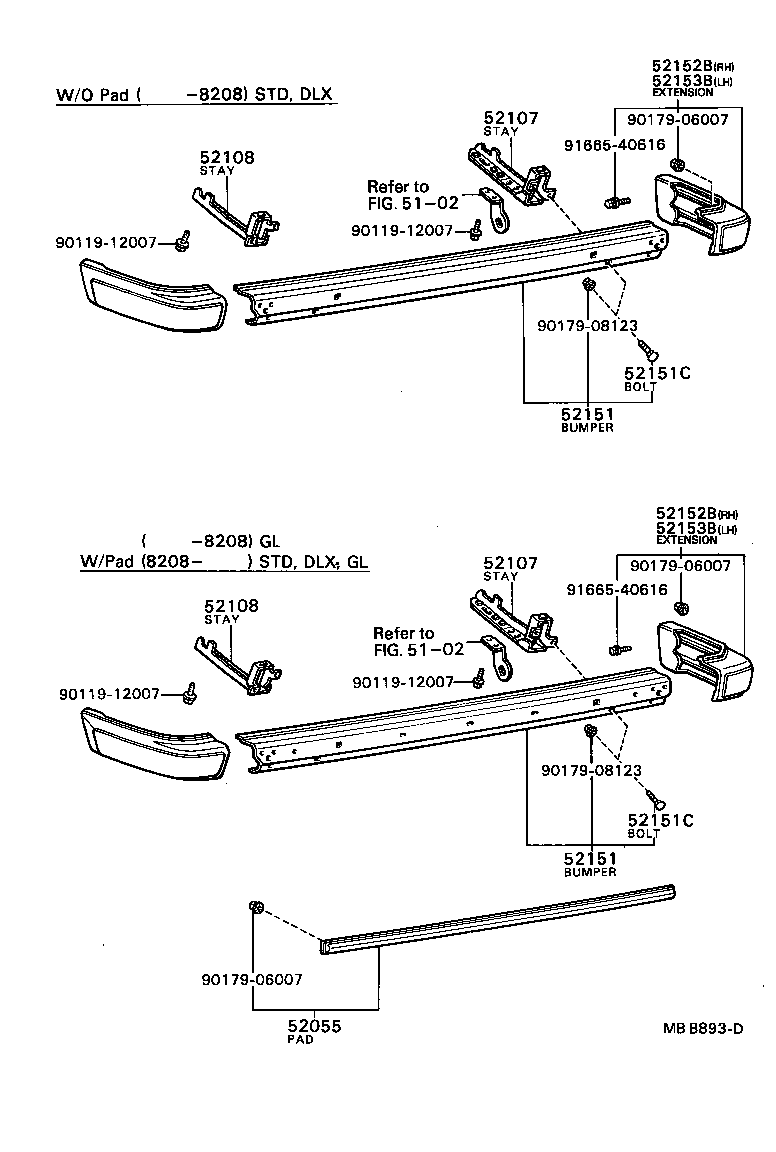

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52055 - PAD SUB-ASSY, REAR BUMPER | ||||
| 52055-29065 |
LX60,RX6#..(DLX,STD,XL)..(EUR,GEN,SA) |
1 | ||
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-91601 |
LX60,RX6#..WG..(EUR,GEN,SA) |
1 | ||
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-91601 |
LX60,RX6#..WG..(EUR,GEN,SA) |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-91601 |
LX60,RX6#..WG..(EUR,GEN,SA) |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-91601 |
LX60,RX6#..WG..(EUR,GEN,SA) |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52151-29435 |
LX60,RX6#..WG..(EUR,GEN,SA) W/PAD |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52151-29435 |
LX60,RX6#..WG..(EUR,GEN,SA) W/PAD |
1 | ||
| 52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER) | ||||
| 90112-08017 |
RX6#..(DLX,XL)..(EUR,GEN,SA) |
4 | ||
| 52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER) | ||||
| 90112-08017 |
RX6#..(DLX,XL)..(EUR,GEN,SA) |
4 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-29095 |
LX60,RX6#..WG..(EUR,GEN,SA) |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-29095 |
LX60,RX6#..WG..(EUR,GEN,SA) |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-29215 |
LX60,RX6#..WG..(EUR,GEN,SA) |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-29215 |
LX60,RX6#..WG..(EUR,GEN,SA) |
1 | ||
| Common parts | ||||
| 90119-12007 | ||||
| 90179-06007 | ||||
| 90179-08123 | ||||
| 91665-40616 | ||||
| Linked diagrams | ||||
| 5102 | ||||
