RX62RG-XWHDSN (1981)

Toyota Cressida

Production Jul 1981 - Aug 1982
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8208)RX62..3FC

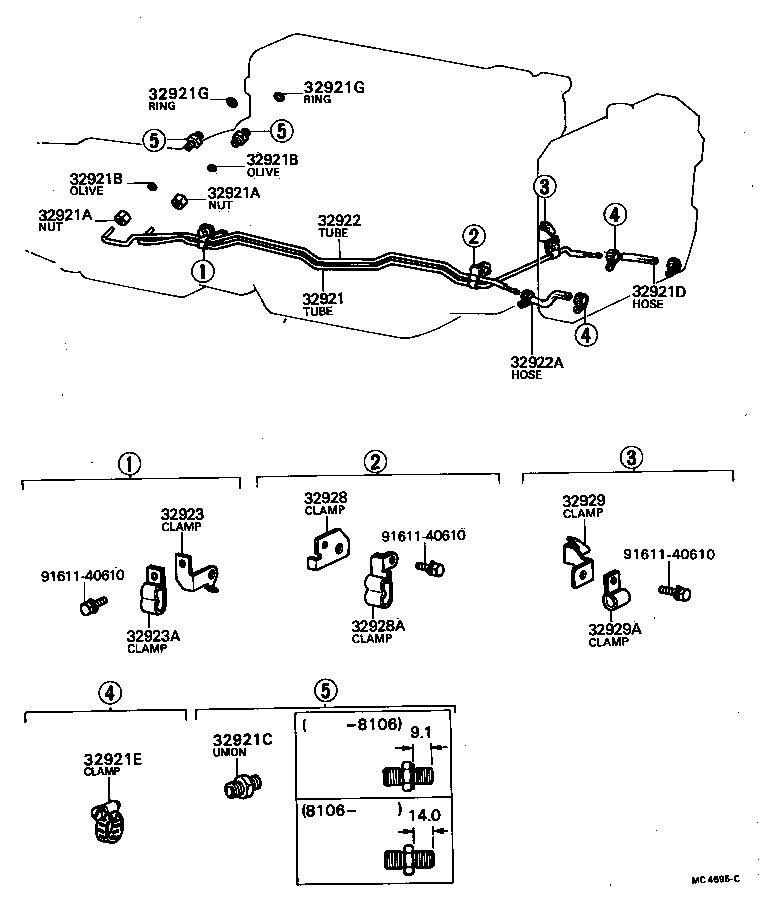

Click highlighted areas on diagram

diagram 32921 32921A 32921A 32921B 32921B 32921C 32921D 32921E 32921G 32921G 32922 32922A 32923 32923A 32928 32928A 32929 32929A 9161140610 9161140610 9161140610
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-22031

RX62..3FC

 1
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

LX60,MX62,RX6#,TX62..ATM

 2
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

LX60,MX62,RX6#,TX62..ATM

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

LX60,MX62,RX6#,TX62..ATM

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

LX60,MX62,RX6#,TX62..ATM

 2
32921C - UNION(FOR OIL COOLER TUBE)
90407-13005

RX6#..3FC

RR

 1
90404-13003

RX62,TX62..3FC

 2
32921D - HOSE(FOR OIL COOLER INLET)
90445-14025

RX62..3FC

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

GX6#,LX60,MX6#,RX6#,TX62..ATM

 6
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GX6#,LX60,MX6#,RX6#,TX62..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GX6#,LX60,MX6#,RX6#,TX62..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-35030

RX62..3FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-14025

RX6#..ATM

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-20022

RX62..3FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90461-08070

RX62..3FC

 1
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-20050

RX62..3FC

 1
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90461-08049

RX62..3FC

 1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-20030

RX62..3FC

 1
32929A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90461-06033

RX6#..ATM

 1
Common parts
91611-40610
