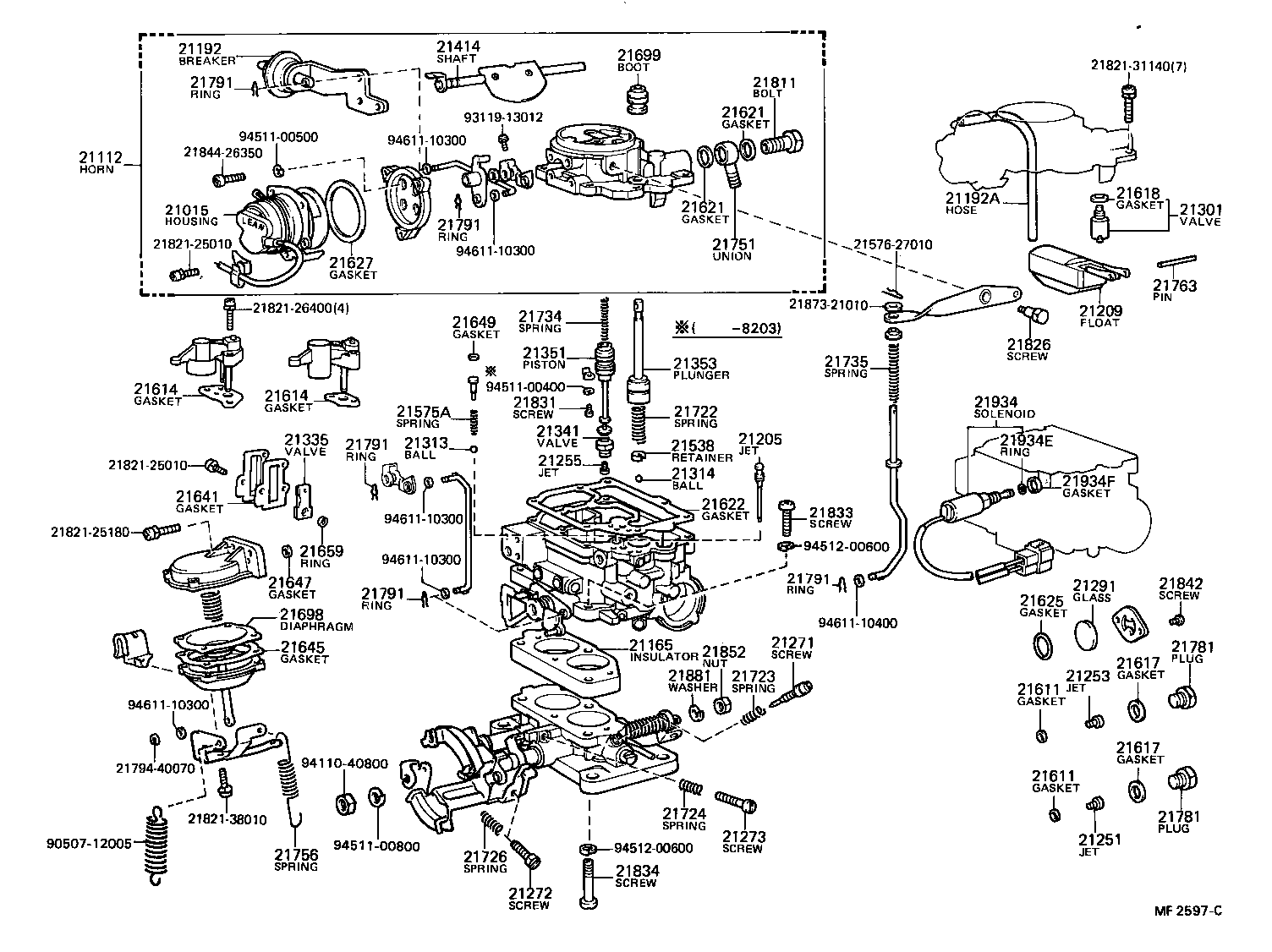

RX62RG-XWHDSN (1981)
Toyota Cressida
(8107-8208)18R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-34620 |
18R..RX62 |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-34690 |
18R..RX62 |
1 | ||
| 21165 - INSULATOR | ||||
| 21165-38012 |
18R..RX62 |
1 | ||
| 21192 - BREAKER | ||||
| 21192-34620 |
18R..RX62 |
1 | ||
| 21192A - HOSE, NO.1(FOR BREAKER) | ||||
| 95411-19930 |
18R..RX62 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-38330 |
18R..RX62 |
1 | ||
| 21205-34620 |
18R..RX62 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-33011 |
18R..RX62 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41116 |
18R..RX62 ID=1.16 |
1 | ||
| 90999-41113 |
18R..RX62 ID=1.13 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42168 |
18R..RX62 ID=1.68 |
1 | ||
| 90999-42180 |
18R..RX62 ID=1.80 |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43055 |
18R..RX62 ID=0.55 |
1 | ||
| 90999-43055 |
18R..RX62 ID=0.55 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-38011 |
18R..RX62 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21814-33010 |
18R..RX62 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-38010 |
18R..RX62 |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-34320 |
21R#,18R..RX6# |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-34620 |
18R..RX62 |
1 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-34620 |
18R..RX62 |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-44101 |
18R..RX62 |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21054-34370 |
18R..RX62 |
1 | ||
| 21575A - SPRING(FOR STOPPER, B) | ||||
| 21864-38010 |
18R..RX62 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
21R#,18R..RX6# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
21R#,18R..RX6# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21615-44010 |
18R..RX62 2ND |
1 | ||
| 21614-34031 |
18R..RX62 1ST |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21615-44010 |
18R..RX62 2ND |
1 | ||
| 21614-34031 |
18R..RX62 1ST |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
21R#,18R..RX6# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
21R#,18R..RX6# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
21R#,18R..RX6# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
21R#,18R..RX6# |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
21R#,18R..RX6# |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-38110 |
18R..RX62 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
21R#,18R..RX6# |
1 | ||
| 21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER) | ||||
| 21641-33010 |
18R..RX62 |
1 | ||
| 21698 - DIAPHRAGM | ||||
| 21669-34370 |
18R..RX62 |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-34060 |
18R..RX62 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-38010 |
18R..RX62 |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-33081 |
18R..RX62 |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-22010 |
18R..RX62 |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-34620 |
18R..RX62 |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-34080 |
18R..RX62 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-38010 |
18R..RX62 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-30020 |
21R#,18R..RX6# |
2 | ||
| 21781-30020 |
18R..RX62 |
2 | ||
| 21781-15230 |
21R#,18R..RX6# |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-30020 |
21R#,18R..RX6# |
2 | ||
| 21781-30020 |
18R..RX62 |
2 | ||
| 21781-15230 |
21R#,18R..RX6# |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
21R#,18R..RX6# |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
21R#,18R..RX6# |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
21R#,18R..RX6# |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
21R#,18R..RX6# |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
21R#,18R..RX6# |
1 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
21R#,18R..RX6# |
1 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21842-33010 |
18R..RX62 |
1 | ||
| 21842-33010 |
21R#,18R..RX6# |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 93110-16035 |
18R..RX62 |
2 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21824-38010 |
18R..RX62 |
1 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
21R#,18R..RX6# |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
21R#,18R..RX6# |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
21R#,18R..RX6# |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-34370 |
18R..RX62 |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
21R#,18R..RX6# |
1 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
21R#,18R..RX6# |
1 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21794-40070 | ||||
| 21821-25010 | ||||
| 21821-25180 | ||||
| 21821-26400 | ||||
| 21821-31140 | ||||
| 21821-38010 | ||||
| 21844-26350 | ||||
| 21873-21010 | ||||
| 90507-12005 | ||||
| 93119-13012 | ||||
| 94110-40800 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
