RX62RG-XWHDSN (1981)

Toyota Cressida

Production Jul 1981 - Aug 1982
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )18R

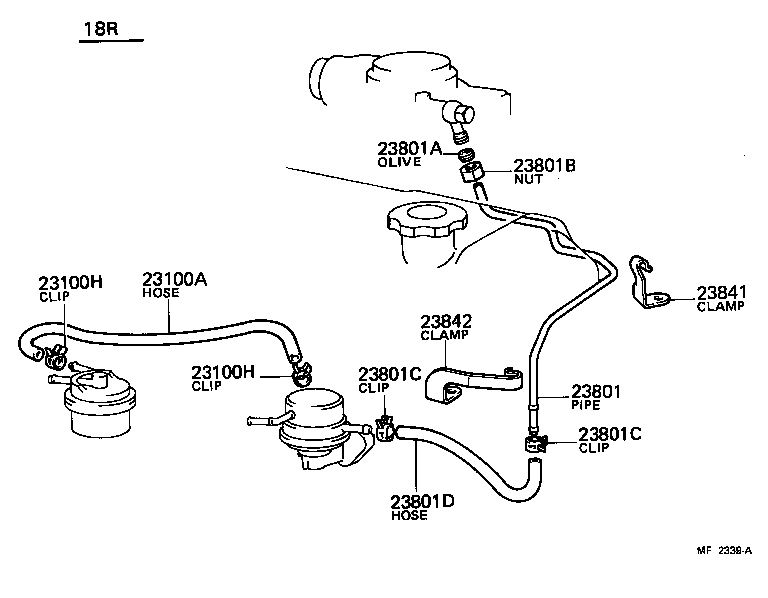

Click highlighted areas on diagram

diagram 23100A 23100H 23100H 23801 23801A 23801B 23801C 23801C 23801D 23841 23842
Part # Description Qty Price
23100A - HOSE, FUEL
95332-06030

18R..RX62

L=300

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

21R#,18R..RX6#

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

21R#,18R..RX6#

 6
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-34041

18R..RX62

 1
23801A - OLIVE(FOR FUEL PIPE)
96395-71200

18R..RX62

 1
23801B - NUT, UNION(FOR FUEL PIPE)
96315-11200

18R..RX62

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

21R#,18R..RX6#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

21R#,18R..RX6#

 2
23801D - HOSE, FUEL PIPE, NO.1
95332-06020

18R..RX62

*H,L=160

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-34030

18R..RX62

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23842-34051

18R..RX62

 1
