RX62RG-XWHDSN (1981)
Toyota Cressida
Production
Jul 1981
-
Aug 1982
Engine
18R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8107-8208)18R

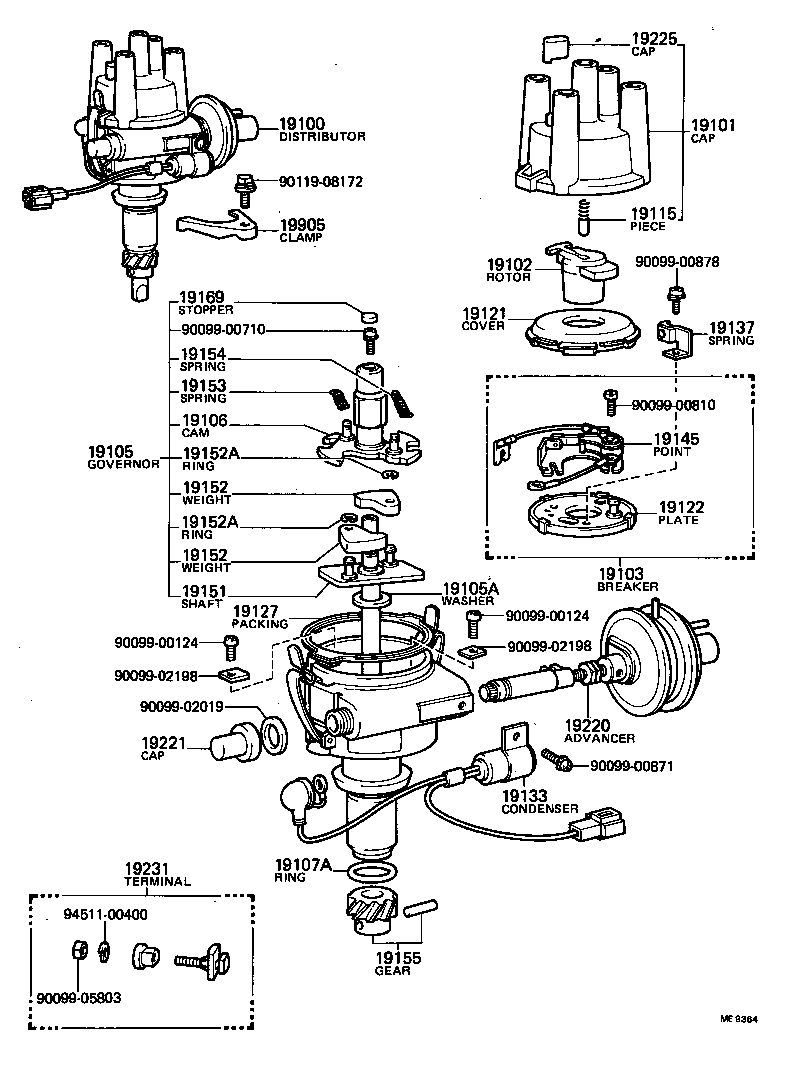

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-34310 |
18R..RX62 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-25070 |
18R..RX62 |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-33013 |
18R..RX62 |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-34310 |
18R..RX62 |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-25010 |
18R..RX62 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
21R#,18R..RX6# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
21R#,18R..RX6# |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38030 |
18R..RX62 |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-33013 |
18R..RX62 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-88251 |
18R..RX62 |
1 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52068 |
21R#,18R..RX6# |
1 | ||
| 19137 - SPRING SUB-ASSY, DAMPER | ||||
| 19137-33012 |
21R,18R..RX6#..GEN,ME,SA,SAA |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-33011 |
18R..RX62 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
18R..RX62 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
18R..RX62 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
21R#,18R..RX6# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
21R#,18R..RX6# |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-34310 |
18R..RX62 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-34310 |
18R..RX62 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-33011 |
18R..RX62 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
21R#,18R..RX6# |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-34310 |
18R..RX62 |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-25070 |
18R..RX62 |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-24140 |
21R#,18R..RX6# |
1 | ||
| 19905 - CLAMP SUB-ASSY, DISTRIBUTOR | ||||
| 19955-33010 |
18R..RX62 |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00810 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-02019 | ||||
| 90099-02198 | ||||
| 90099-05803 | ||||
| 90119-08172 | ||||
| 94511-00400 | ||||
