RX62RG-XWHDSN (1981)
Toyota Cressida
Production
Jul 1981
-
Aug 1982
Engine
18R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8107-8208)18R

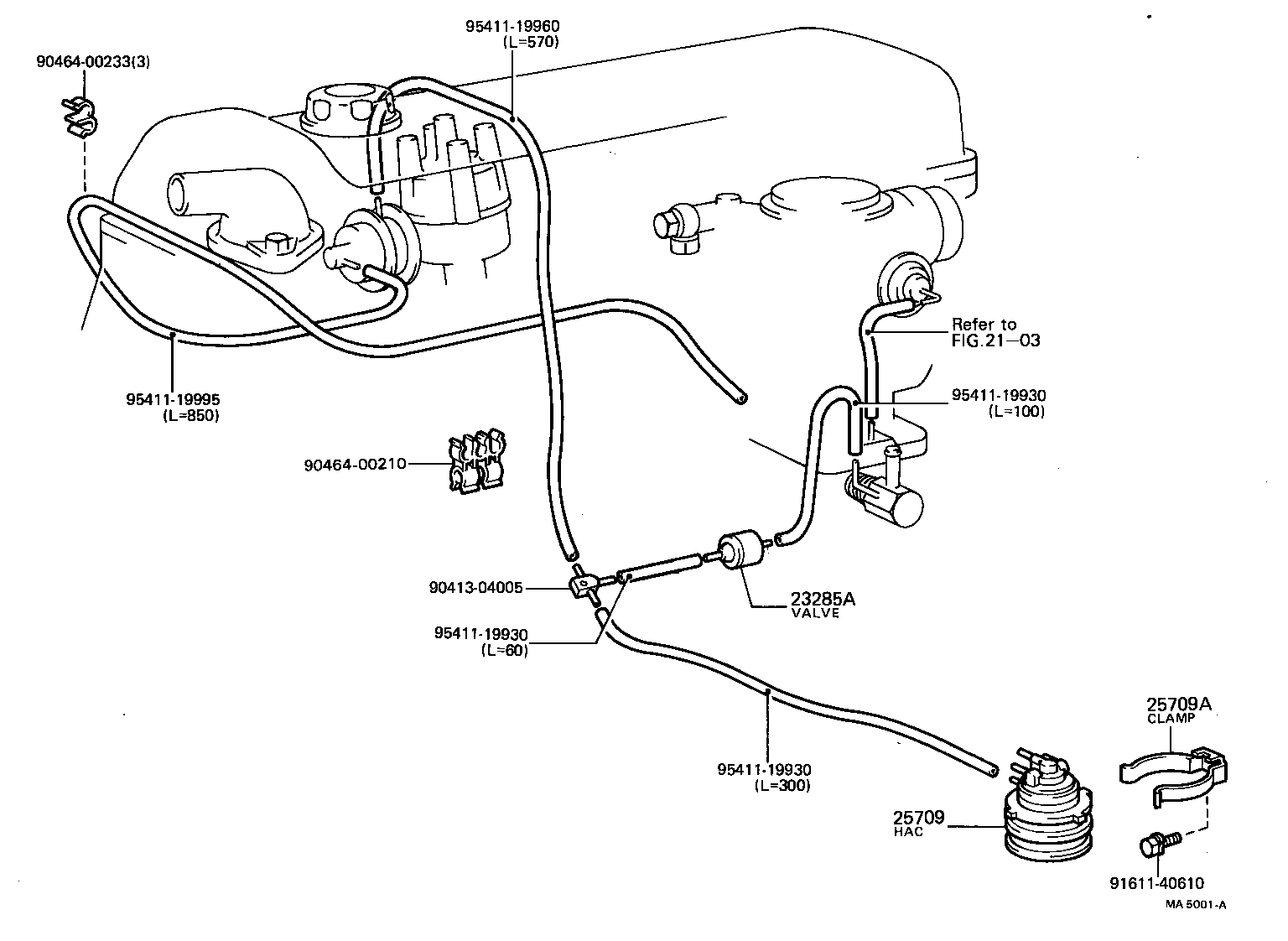

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10038 |
18R..RX62 |
1 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-38010 |
18R..RX62 |
1 | ||
| 25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE) | ||||
| 90461-10365 |
18R..RX62 |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00210 | ||||
| 90464-00233 | ||||
| 91611-40610 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
| Linked diagrams | ||||
| 2103 | ||||
