RX62RG-XWHDSN (1981)

Toyota Cressida

Production Jul 1981 - Aug 1982
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8208)18R

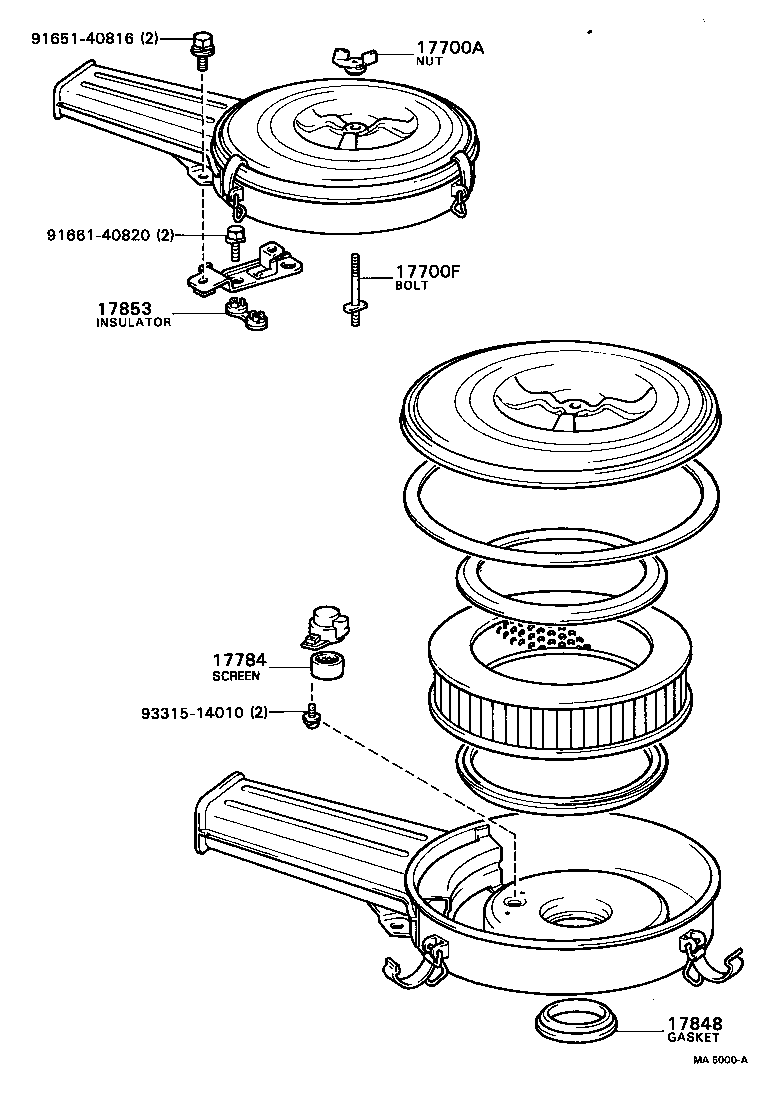

Click highlighted areas on diagram

diagram 17700A 17700F 17784 17848 17853 9165140816 9166140820 9331514010
Part # Description Qty Price
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

21R#,18R..RX6#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06143

18R..RX62

 1
17784 - SCREEN, AIR CLEANER
17784-31010

18R..RX62

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-72003

18R..RX62

 1
17853 - INSULATOR, AIR CLEANER BRACKET
17853-34010

18R..RX62

 1
Common parts
91651-40816
91661-40820
93315-14010

(8009-8208)L

Click highlighted areas on diagram

diagram 1709 17700 17801 17881 17881A 17881A 17882 17882A 17882A 17883 17883A 9011906108 9165540616
Part # Description Qty Price
Common parts
90119-06108
91655-40616
Linked diagrams
1709
