RX62RG-XWHDSN (1981)

Toyota Cressida

Production Jul 1981 - Aug 1982
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8208)18R

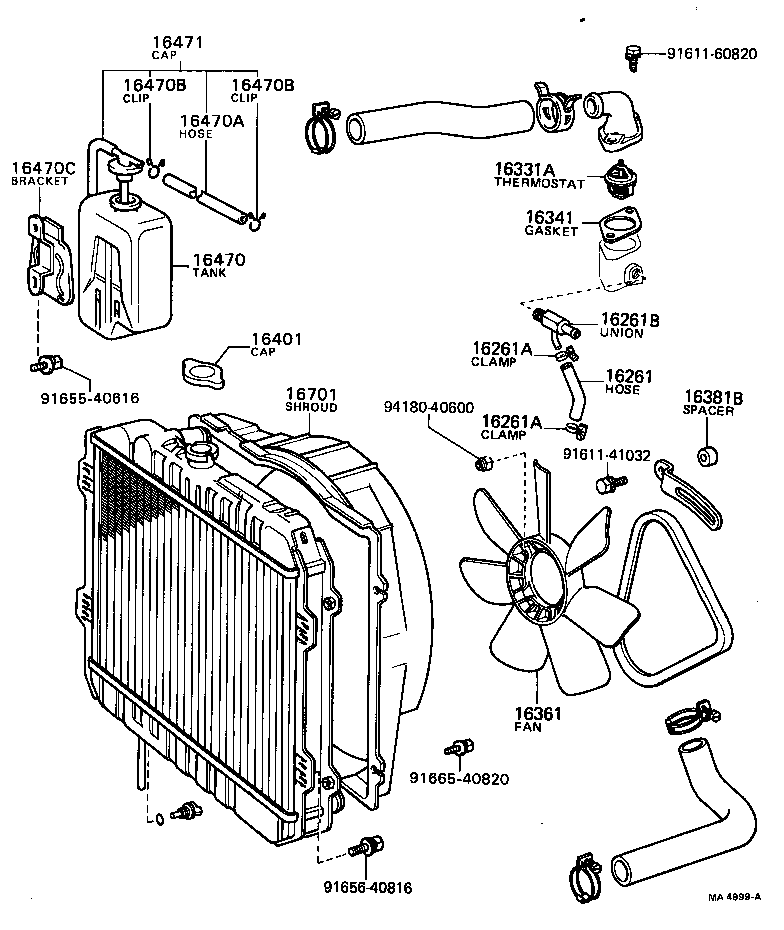

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16261B 16331A 16341 16361 16381B 16401 16470 16470A 16470B 16470B 16470C 16471 16701 9161141032 9161160820 9165540616 9165640816 9166540820 9418040600
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
90910-05106

18R..RX62

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10160

18R..RX62

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10160

18R..RX62

 2
16261B - UNION(FOR WATER BY-PASS HOSE)
90404-17005

18R..RX62

 1
16331A - THERMOSTAT
90916-03036

21R#,18R..RX6#..EUR,SA

*WAX 88-100,FUJI-THOMSON

 1
16341 - GASKET, WATER OUTLET
16341-38010

18R..RX62

 1
16361 - FAN
16361-34030

18R..RX62

7 BLADES,OD=380

 1
16381B - SPACER, FAN BELT ADJUSTING BAR
90560-10005

18R..RX62

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-70010

21R#,18R..RX6#..DLX,XL

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12063

21R#,18R..RX6#

*H,L=300

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

21R#,18R..RX6#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

21R#,18R..RX6#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16402-18010

21R#,18R..RX6#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-18010

21R#,18R..RX6#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-34100

21R#,18R..RX6#

 1
Common parts
91611-41032
91611-60820
91655-40616
91656-40816
91665-40820
94180-40600

(8009-8208)L

Click highlighted areas on diagram

diagram 16331 16331A 16333 16341 16343 16361 16361A 16381 16400 16400B 16400F 16401 16470 16470A 16470B 16470B 16470C 16471 16472 16571 16571A 16571A 16572 16572A 16572A 16701 16701A 16712 9011908108 9011908127 9017906070 9161160820 9161160840 9165140818 9165540616 9165540818 9165941222
Part # Description Qty Price
16331A - THERMOSTAT
90916-03036

21R#,18R..RX6#..EUR,SA

*WAX 88-100,FUJI-THOMSON

 1
16341 - GASKET, WATER OUTLET
16341-38010

18R..RX62

 1
16361 - FAN
16361-34030

18R..RX62

7 BLADES,OD=380

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-70010

21R#,18R..RX6#..DLX,XL

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12063

21R#,18R..RX6#

*H,L=300

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

21R#,18R..RX6#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

21R#,18R..RX6#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16402-18010

21R#,18R..RX6#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-18010

21R#,18R..RX6#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-34100

21R#,18R..RX6#

 1
Common parts
90119-08108
90119-08127
90179-06070
91611-60820
91611-60840
91651-40818
91655-40616
91655-40818
91659-41222
