RX62RG-XWHDSN (1981)

Toyota Cressida

Production Jul 1981 - Aug 1982
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8308)L

Click highlighted areas on diagram

diagram 11802 13511 13511 13511A 13523A 13523B 13523P 13613P 13711 13711A 13711A 13711B 13711B 13711D 13711D 13715 13741 13741 13741A 13741A 13801 13801 13801 13801 13801B 13801B 13801C 13801C 13801D 13801D 13801D 13801D 13802 13802 13802 13802 13901 13951 13951 13951A 13951B 9009905166 9011914005 9151161435
Part # Description Qty Price
13511 - CAMSHAFT
13511-33906

18R..RX62

 1
13511 - CAMSHAFT
13511-33906

18R..RX62

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-08074

18R..RX62

L=15,OD=8,L=15,OD=8

 1
13711 - VALVE, INTAKE
13711-36021

18R..RX62

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02054

18R..RX62

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02054

18R..RX62

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26398

18R..RX62

WD=2.6,CW=7.5

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26398

18R..RX62

WD=2.6,CW=7.5

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-13308

18R..RX62

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-13308

18R..RX62

 8
13715 - VALVE, EXHAUST
13715-34013

18R..RX62

 4
13741 - RETAINER, VALVE SPRING
13741-33010

18R..RX62

 8
13741 - RETAINER, VALVE SPRING
13741-33010

18R..RX62

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

21R#,18R..RX6#

 24
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

21R#,18R..RX6#

 24
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-33020

18R..RX62

 4
13811-33014

18R..RX62

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-33020

18R..RX62

 4
13811-33014

18R..RX62

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-33020

18R..RX62

 4
13811-33014

18R..RX62

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-33020

18R..RX62

 4
13811-33014

18R..RX62

 4
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-10116

18R..RX62

 8
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-10116

18R..RX62

 8
13801C - SCREW, VALVE ADJUSTING
90913-05011

18R..RX62

 8
13801C - SCREW, VALVE ADJUSTING
90913-05011

18R..RX62

 8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

18R..RX62

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

18R..RX62

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

18R..RX62

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

18R..RX62

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-33014

18R..RX62

 2
13812-33020

18R..RX62

 2
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-33014

18R..RX62

 2
13812-33020

18R..RX62

 2
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-33014

18R..RX62

 2
13812-33020

18R..RX62

 2
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-33014

18R..RX62

 2
13812-33020

18R..RX62

 2
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-33011

18R..RX62

 1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-36010

18R..RX62

 1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-36010

18R..RX62

 1
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01007

18R..RX62

*8-1.25PX75-16

 1
90105-08016

18R..RX62

*8-1.25PX65-16

 9
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
90151-40010

18R..RX62

 1
Common parts
90099-05166
90119-14005
91511-61435

(8107-8208)18R

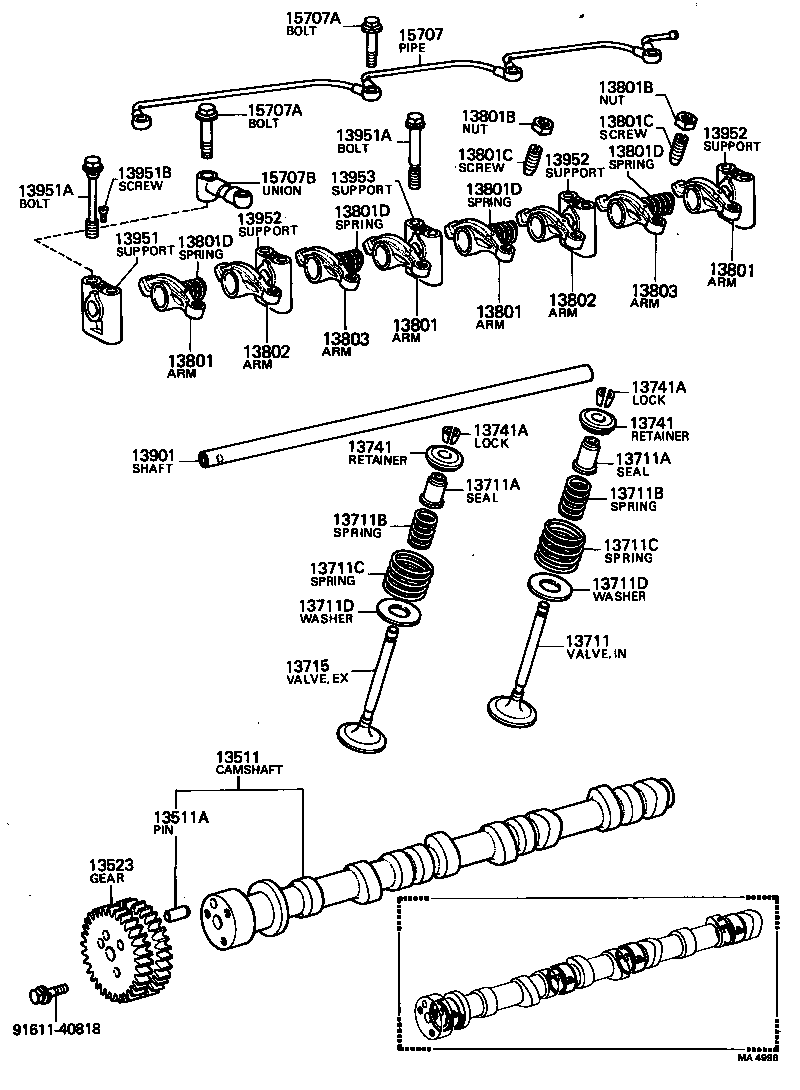

Click highlighted areas on diagram

diagram 13511 13511A 13523 13711 13711A 13711A 13711B 13711B 13711C 13711C 13711D 13711D 13715 13741 13741 13741A 13741A 13801 13801 13801 13801 13801B 13801B 13801C 13801C 13801D 13801D 13801D 13801D 13802 13802 13803 13803 13901 13951 13951A 13951A 13951B 13952 13952 13952 13953 15707 15707A 15707A 15707B 9161140818
Part # Description Qty Price
13511 - CAMSHAFT
13511-33906

18R..RX62

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-08074

18R..RX62

L=15,OD=8,L=15,OD=8

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-33010

18R..RX62

N=24

 1
13711 - VALVE, INTAKE
13711-36021

18R..RX62

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02054

18R..RX62

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02054

18R..RX62

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26398

18R..RX62

WD=2.6,CW=7.5

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26398

18R..RX62

WD=2.6,CW=7.5

 8
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-45012

18R..RX62

WD=4.5,CW=6.5

 8
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-45012

18R..RX62

WD=4.5,CW=6.5

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-13308

18R..RX62

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-13308

18R..RX62

 8
13715 - VALVE, EXHAUST
13715-34013

18R..RX62

 4
13741 - RETAINER, VALVE SPRING
13741-33010

18R..RX62

 8
13741 - RETAINER, VALVE SPRING
13741-33010

18R..RX62

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

21R#,18R..RX6#

 24
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

21R#,18R..RX6#

 24
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-33020

18R..RX62

 4
13811-33014

18R..RX62

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-33020

18R..RX62

 4
13811-33014

18R..RX62

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-33020

18R..RX62

 4
13811-33014

18R..RX62

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-33020

18R..RX62

 4
13811-33014

18R..RX62

 4
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-10116

18R..RX62

 8
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-10116

18R..RX62

 8
13801C - SCREW, VALVE ADJUSTING
90913-05011

18R..RX62

 8
13801C - SCREW, VALVE ADJUSTING
90913-05011

18R..RX62

 8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

18R..RX62

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

18R..RX62

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

18R..RX62

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

18R..RX62

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-33014

18R..RX62

 2
13812-33020

18R..RX62

 2
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-33014

18R..RX62

 2
13812-33020

18R..RX62

 2
13803 - ARM SUB-ASSY, VALVE ROCKER, NO.3
13813-33020

18R..RX62

 2
13813-33014

18R..RX62

 2
13803 - ARM SUB-ASSY, VALVE ROCKER, NO.3
13813-33020

18R..RX62

 2
13813-33014

18R..RX62

 2
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-33011

18R..RX62

 1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-36010

18R..RX62

 1
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01007

18R..RX62

*8-1.25PX75-16

 1
90105-08016

18R..RX62

*8-1.25PX65-16

 9
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01007

18R..RX62

*8-1.25PX75-16

 1
90105-08016

18R..RX62

*8-1.25PX65-16

 9
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
90151-40010

18R..RX62

 1
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-36010

18R..RX62

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-36010

18R..RX62

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-36010

18R..RX62

 3
13953 - SUPPORT, VALVE ROCKER, NO.3
13953-36010

18R..RX62

 1
15707 - PIPE SUB-ASSY, OIL
15707-33010

18R..RX62

 1
15707A - BOLT, UNION(FOR OIL PIPE)
90401-10050

18R..RX62

L=37

 1
90401-10051

18R..RX62

L=19

 3
15707A - BOLT, UNION(FOR OIL PIPE)
90401-10050

18R..RX62

L=37

 1
90401-10051

18R..RX62

L=19

 3
15707B - UNION(FOR OIL PIPE)
90406-08008

18R..RX62

 1
Common parts
91611-40818
