RX62RG-XWHDSN (1981)

Toyota Cressida

Production Jul 1981 - Aug 1982
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )18R

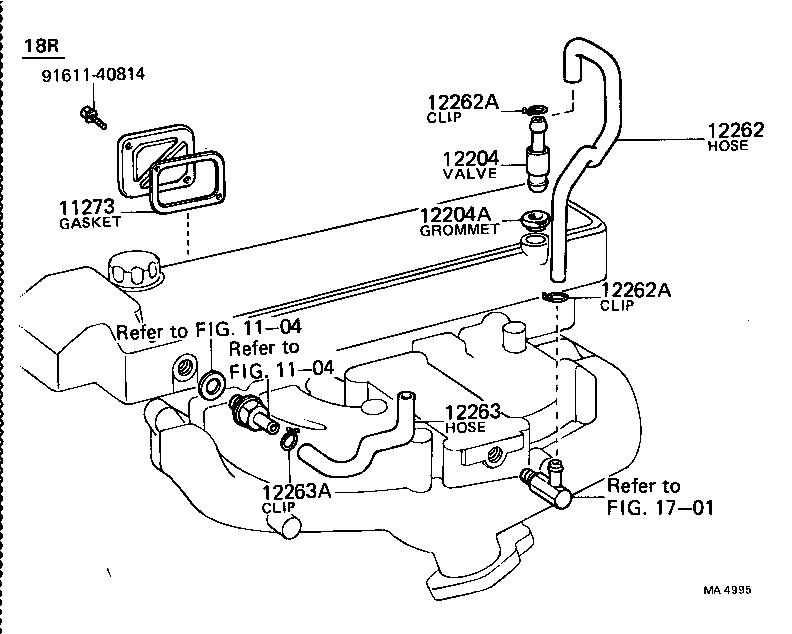

Click highlighted areas on diagram

diagram 1104 1104 11273 12204 12204A 12262 12262A 12262A 12263 12263A 1701 9161140814
Part # Description Qty Price
11273 - GASKET, CYLINDER BLOCK SIDE COVER
11273-33010

18R..RX62

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-15020

18R..RX62

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

21R#,18R..RX6#

 1
12262 - HOSE, VENTILATION, NO.2
12261-34080

18R..RX62

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

21R#,18R..RX6#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

21R#,18R..RX6#

 2
12263 - HOSE, VENTILATION, NO.3
12262-34020

18R..RX62

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-20020

21R#,18R..RX6#

 1
Common parts
91611-40814
Linked diagrams
1104
1701
