RX62RG-XWHDSN (1981)
Toyota Cressida
Production
Jul 1981
-
Aug 1982
Engine
18R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)L

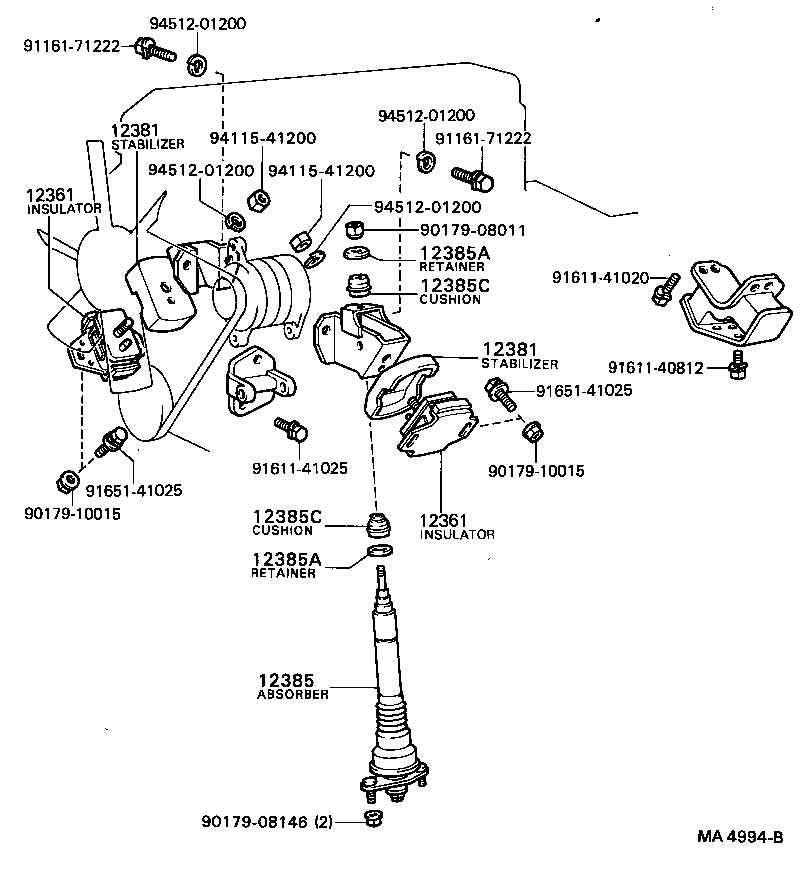

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38120 |
18R..RX62 RH |
2 | ||
| 12362-34071 |
18R..RX62 LH |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38120 |
18R..RX62 RH |
2 | ||
| 12362-34071 |
18R..RX62 LH |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-34021 |
18R..RX62 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-34021 |
18R..RX62 |
2 | ||
| 12385 - ABSORBER, ENGINE MOUNTING, NO.1 | ||||
| 12308-34010 |
18R..RX62 |
1 | ||
| 12385A - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 90948-02003 |
18R..RX62 |
2 | ||
| 12385A - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 90948-02003 |
18R..RX62 |
2 | ||
| 12385C - CUSHION, SHOCK ABSORBER | ||||
| 90948-01013 |
18R..RX62 LWR |
1 | ||
| 90948-01012 |
18R..RX62 UPR |
1 | ||
| 12385C - CUSHION, SHOCK ABSORBER | ||||
| 90948-01013 |
18R..RX62 LWR |
1 | ||
| 90948-01012 |
18R..RX62 UPR |
1 | ||
| Common parts | ||||
| 90179-08011 | ||||
| 90179-10015 | ||||
| 91611-41020 | ||||
| 91611-61022 | ||||
| 91611-61025 | ||||
| 91651-41025 | ||||
| 91651-61022 | ||||
| 91661-40814 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
(8107-8208)18R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38120 |
18R..RX62 RH |
2 | ||
| 12362-34071 |
18R..RX62 LH |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38120 |
18R..RX62 RH |
2 | ||
| 12362-34071 |
18R..RX62 LH |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-34021 |
18R..RX62 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-34021 |
18R..RX62 |
2 | ||
| 12385 - ABSORBER, ENGINE MOUNTING, NO.1 | ||||
| 12308-34010 |
18R..RX62 |
1 | ||
| 12385A - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 90948-02003 |
18R..RX62 |
2 | ||
| 12385A - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 90948-02003 |
18R..RX62 |
2 | ||
| 12385C - CUSHION, SHOCK ABSORBER | ||||
| 90948-01013 |
18R..RX62 LWR |
1 | ||
| 90948-01012 |
18R..RX62 UPR |
1 | ||
| 12385C - CUSHION, SHOCK ABSORBER | ||||
| 90948-01013 |
18R..RX62 LWR |
1 | ||
| 90948-01012 |
18R..RX62 UPR |
1 | ||
| Common parts | ||||
| 90179-08011 | ||||
| 90179-08146 | ||||
| 90179-10015 | ||||
| 91161-71222 | ||||
| 91611-40812 | ||||
| 91611-41020 | ||||
| 91611-41025 | ||||
| 91651-41025 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
