RX62RG-XWHDSN (1981)

Toyota Cressida

Production Jul 1981 - Aug 1982
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8208)18R

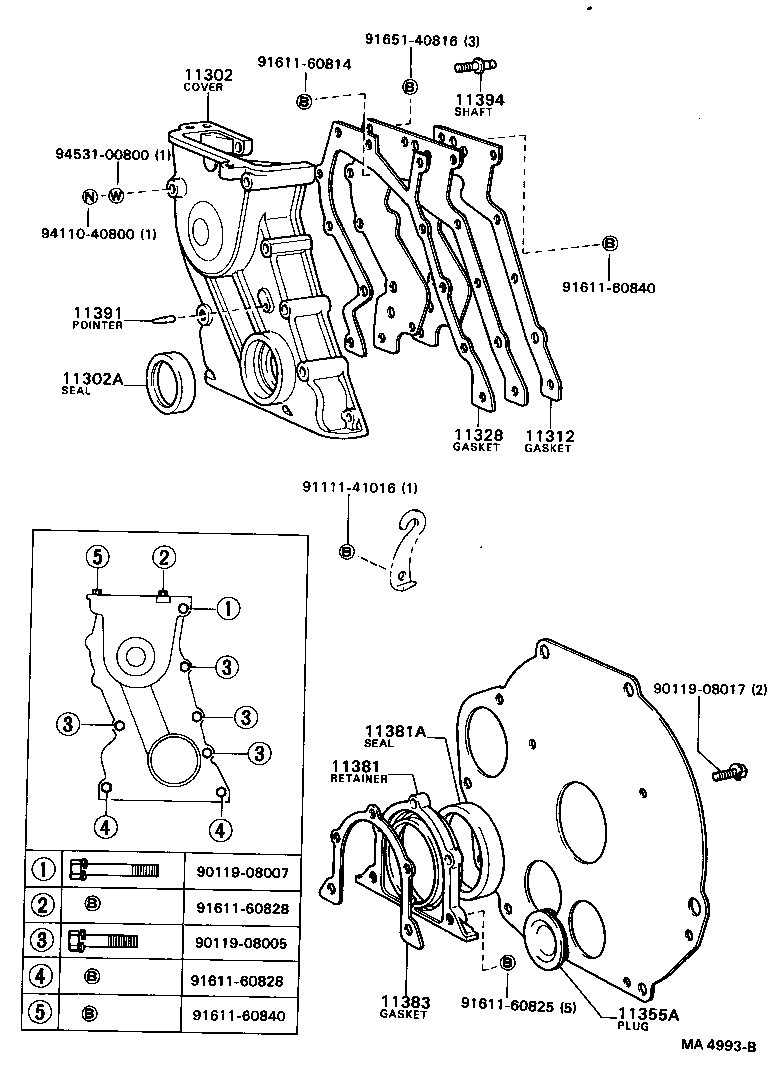

Click highlighted areas on diagram

diagram 11302 11302A 11312 11328 11355A 11381 11381A 11383 11391 11394 9011908005 9011908007 9011908017 9111141016 9161160814 9161160825 9161160828 9161160828 9161160840 9161160840 9165140816 9411040800 9453100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-34010

18R..RX62

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

18R..RX62

 1
11312 - GASKET, FRONT END PLATE
11312-33014

18R..RX62

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-33016

18R..RX62

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01128

21R,18R..RX6#..ATM

 2
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-38010

21R#,18R..RX6#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80001

21R#,18R..RX6#

HTC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-33010

21R#,18R..RX6#

 1
11391 - POINTER, TIMING
11391-40010

18R..RX62

 1
11394 - SHAFT, CHAIN TENSHIONER
11394-34010

18R..RX62

 1
Common parts
90119-08005
90119-08007
90119-08017
91111-41016
91611-60814
91611-60825
91611-60828
91611-60840
91651-40816
94110-40800
94531-00800
