RX62RG-XWHDSN (1981)
Toyota Cressida
Production
Jul 1981
-
Aug 1982
Engine
18R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8304)L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09074 |
18R..RX62 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
21R#,18R..RX6# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02042 |
21R#,18R..RX6# *12-1.25PX75-25 |
10 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-32038 |
18R..RX62 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90072-34107 |
18R..RX62 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11001 |
18R..RX62 L=11,OD=11,L=11,OD=11 |
4 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
21R#,18R..RX6# L=18,OD=8,L=18,OD=8 |
2 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
21R#,18R..RX6# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
21R#,18R..RX6# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-33010 |
18R..RX62 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-33013 |
18R..RX62 |
1 | ||
| Common parts | ||||
| 90116-08071 | ||||
| 90119-08156 | ||||
| 90179-08040 | ||||
| 93381-18016 | ||||
| Linked diagrams | ||||
| 1301 | ||||

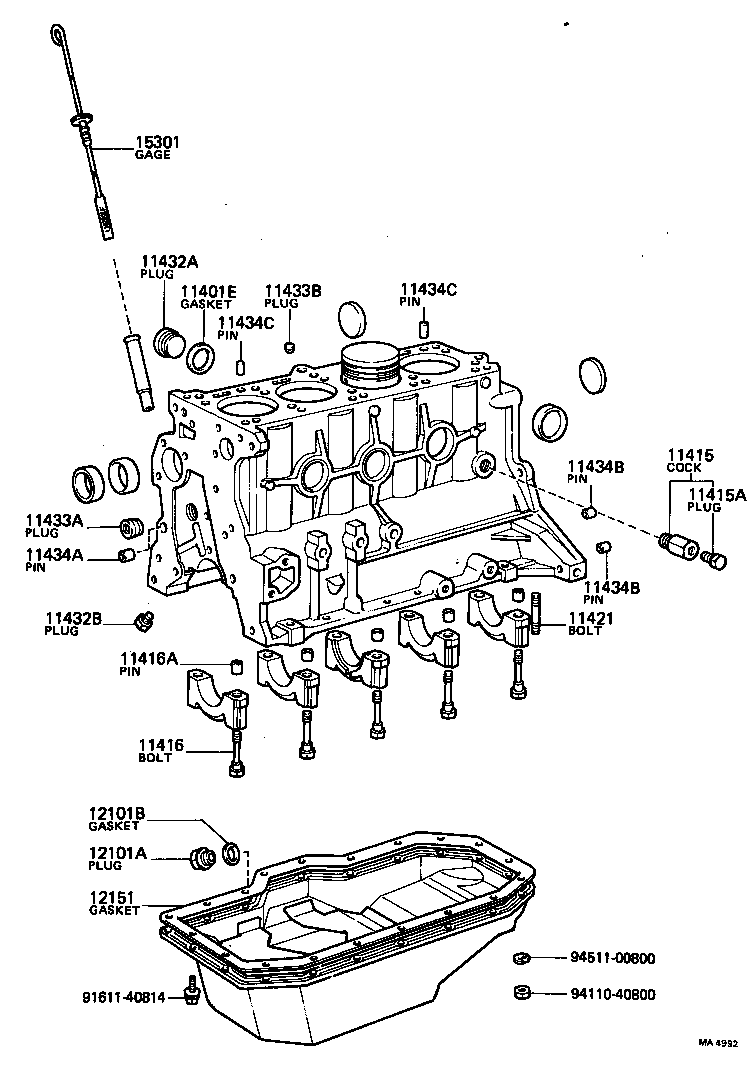

(8107-8208)18R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401E - GASKET(FOR CYLINDER BLOCK PLUG) | ||||
| 90430-32003 |
18R..RX62 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09074 |
18R..RX62 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
21R#,18R..RX6# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02042 |
21R#,18R..RX6# *12-1.25PX75-25 |
10 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-16014 |
18R..RX62 |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 92122-40814 |
21R#,18R..RX6# L=26,S=12&12 |
3 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-32038 |
18R..RX62 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90072-34107 |
18R..RX62 |
1 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90344-53002 |
18R..RX62 |
2 | ||
| 11433B - PLUG, STRAIGHT, NO.2 | ||||
| 90334-09015 |
18R..RX62 L=4,OD=9 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11001 |
18R..RX62 L=11,OD=11,L=11,OD=11 |
4 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90253-17012 |
18R..RX62 L=16,OD=17 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90253-17012 |
18R..RX62 L=16,OD=17 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
21R#,18R..RX6# L=18,OD=8,L=18,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
21R#,18R..RX6# L=18,OD=8,L=18,OD=8 |
2 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
21R#,18R..RX6# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
21R#,18R..RX6# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-33010 |
18R..RX62 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-33013 |
18R..RX62 |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
