RX60R-XEPNSN (1981)
Toyota Cressida
(8009- )RX60..RHD..GEN ; (8107-8208)SXL

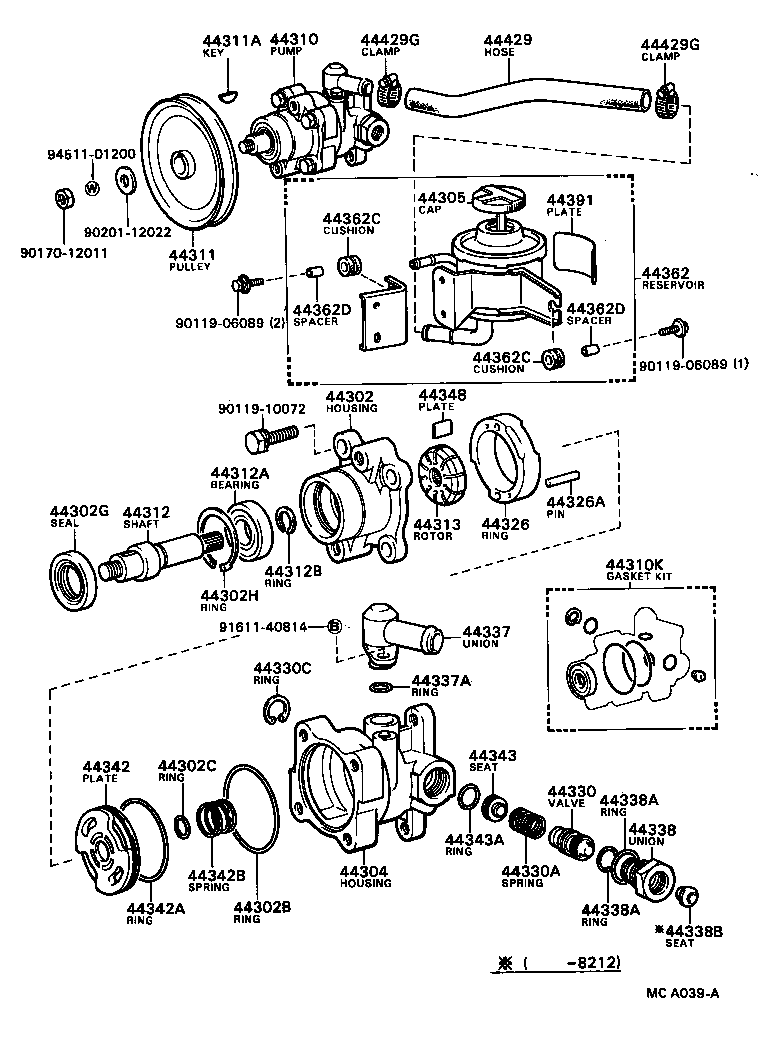

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-12010 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-60001 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 96710-01016 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-24001 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 90521-44002 |
RX60..SXL |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-20030 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-30020 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-22140 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44310K - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-12011 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-20010 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12010 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17004 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15001 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12020 |
RX60..(GL,SXL)..(ME,SA) MARK 1,MARK 1 |
1 | ||
| 44313-12030 |
RX60..(GL,SXL)..(ME,SA) MARK 2,MARK 2 |
1 | ||
| 44313-12050 |
RX60..(GL,SXL)..(ME,SA) MARK 4,MARK 4 |
1 | ||
| 44313-12010 |
RX60..(GL,SXL)..(ME,SA) NO MARK |
1 | ||
| 44313-12040 |
RX60..(GL,SXL)..(ME,SA) MARK 3,MARK 3 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12010 |
RX60..(GL,SXL)..(ME,SA) NO MARK |
1 | ||
| 44325-12040 |
RX60..(GL,SXL)..(ME,SA) MARK 3,MARK 3 |
1 | ||
| 44325-12020 |
RX60..(GL,SXL)..(ME,SA) MARK 1,MARK 1 |
1 | ||
| 44325-12030 |
RX60..(GL,SXL)..(ME,SA) MARK 2,MARK 2 |
1 | ||
| 44325-12050 |
RX60..(GL,SXL)..(ME,SA) MARK 4,MARK 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
RX60..(GL,SXL)..(ME,SA) L=25,OD=5.0 |
2 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12020 |
RX60..(GL,SXL)..(ME,SA) MARK B,MARK B |
1 | ||
| 44330-12060 |
RX60..(GL,SXL)..(ME,SA) MARK F,MARK F |
1 | ||
| 44330-12050 |
RX60..(GL,SXL)..(ME,SA) MARK E,MARK E |
1 | ||
| 44330-12030 |
RX60..(GL,SXL)..(ME,SA) MARK C,MARK C |
1 | ||
| 44330-12040 |
RX60..(GL,SXL)..(ME,SA) MARK D,MARK D |
1 | ||
| 44330-12010 |
RX60..(GL,SXL)..(ME,SA) MARK A,MARK A |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12447 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 90404-16016 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96710-01013 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44338-20010 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-23002 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-23002 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44338B - SEAT, UNION(FOR PRESSURE PORT UNION) | ||||
| 90410-06030 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-12010 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-23014 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12010 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96710-01014 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12010 |
RX60..(GL,SXL)..(ME,SA) L=14.997,L=14.996-14.998,ROTOR NO MARK |
10 | ||
| 44345-12020 |
RX60..(GL,SXL)..(ME,SA) L=14.995,L=14.994-14.996,ROTOR MARK 1 |
10 | ||
| 44345-12030 |
RX60..(GL,SXL)..(ME,SA) L=14.993,L=14.992-14.994,ROTOR MARK 2 |
10 | ||
| 44345-12040 |
RX60..(GL,SXL)..(ME,SA) L=14.991,L=14.990-14.992,ROTOR MARK 3 |
10 | ||
| 44345-12050 |
RX60..(GL,SXL)..(ME,SA) L=14.989,L=14.988-14.990,ROTOR MARK 4 |
10 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44360-22030 |
RX60..SXL |
1 | ||
| 44360-22090 |
RX60..SXL |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90540-09004 |
RX60..(GL,SXL)..(ME,SA) |
3 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90540-09004 |
RX60..(GL,SXL)..(ME,SA) |
3 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06238 |
RX60..(GL,SXL)..(ME,SA) |
3 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06238 |
RX60..(GL,SXL)..(ME,SA) |
3 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-30020 |
RX60..(GL,SXL)..(ME,SA) |
1 | ||
| 44429 - HOSE, RESERVOIR TO OIL PUMP | ||||
| 44348-22030 |
RX60..SXL |
1 | ||
| 44429G - CLAMP, RESERVOIR TO OIL PUMP HOSE | ||||
| 90460-26001 |
RX60..(GL,SXL)..(ME,SA) |
2 | ||
| 44429G - CLAMP, RESERVOIR TO OIL PUMP HOSE | ||||
| 90460-26001 |
RX60..(GL,SXL)..(ME,SA) |
2 | ||
| Common parts | ||||
| 90119-06089 | ||||
| 90119-10072 | ||||
| 90170-12011 | ||||
| 90201-12022 | ||||
| 91611-40814 | ||||
| 94511-01200 | ||||
