RX60R-XEPNS (1982)

Toyota Cressida

Production Aug 1982 - Jul 1984
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )MX6#,RX60..RHD

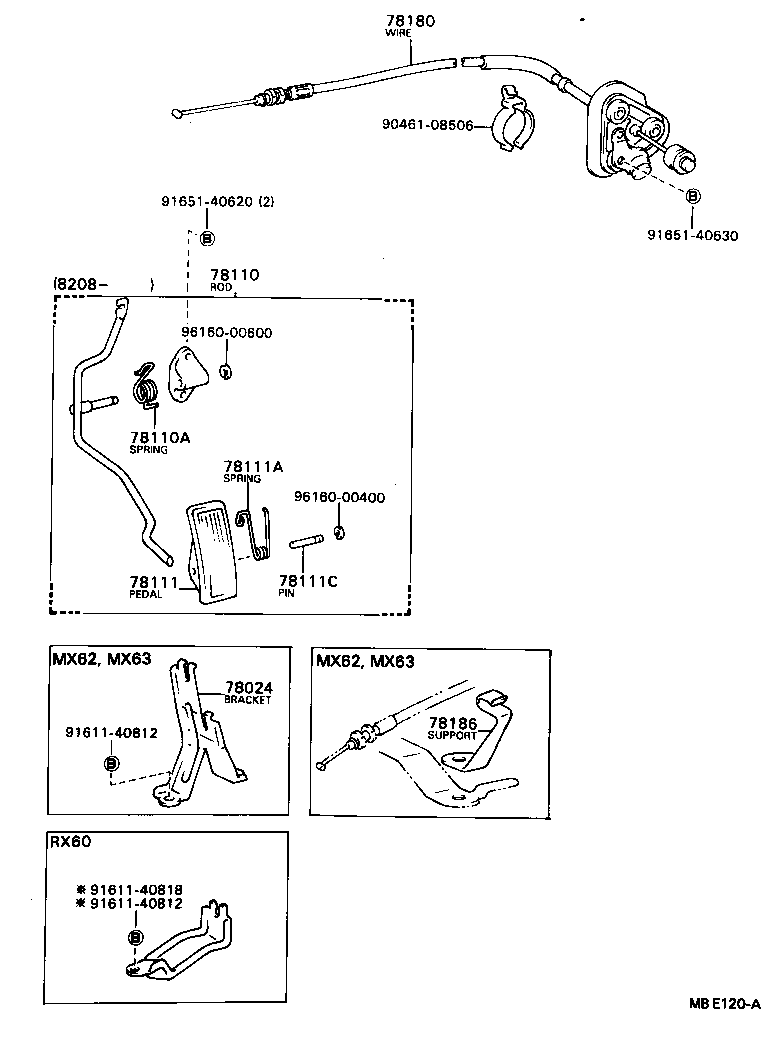

Click highlighted areas on diagram

diagram 78024 78110 78110A 78111 78111A 78111C 78180 78186 9046108506 9161140812 9161140812 9161140818 9165140620 9165140630 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-22081

RX60..RHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-22140

LX60,RX60..RHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23037

GX6#,LX60,MX62,RX60..RHD

 1
90508-18006

LX60,MX62,RX6#..RHD

 1
78111 - PEDAL, ACCELERATOR
78111-30080

LX60,MX62,RX6#,TX62..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-22181

RX60..RHD

 1
Common parts
90461-08506
91611-40812
91611-40818
91651-40620
91651-40630
96160-00400
96160-00600
