RX60LG-XWYDS (1980)

Toyota Cressida

Production Sep 1980 - Aug 1981
Engine 21R
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )WG

Click highlighted areas on diagram

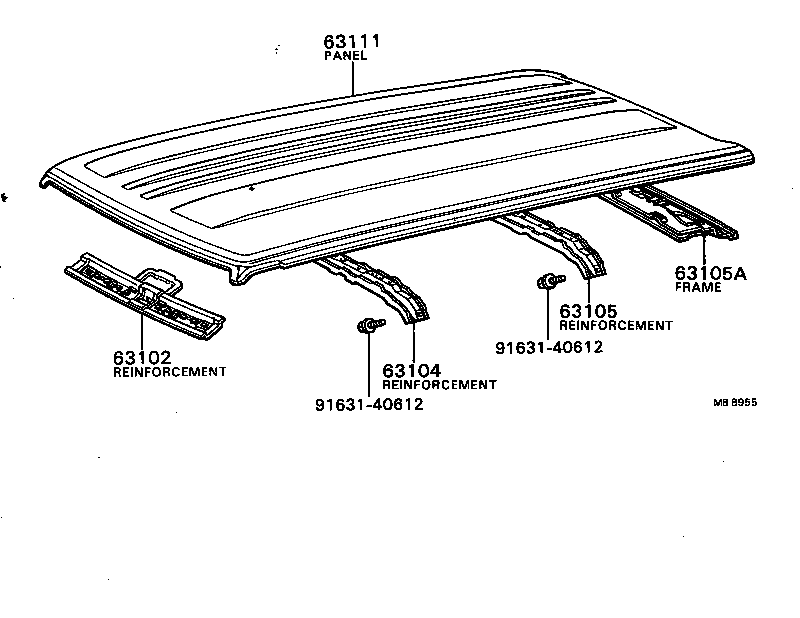

diagram 63102 63104 63105 63105A 63111 9163140612 9163140612
Part # Description Qty Price
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-22060

LX60,MX62,RX6#,TX62..DLX,STD,XL

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63103-91602

LX60,MX62,RX6#..WG

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63142-91601

LX60,MX62,RX6#..WG

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-91608

LX60,RX6#..WG

 1
63111 - PANEL, ROOF
63111-91609

LX60,MX62,RX60..WG

 1
Common parts
91631-40612
